Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Part. No.
Part. No.

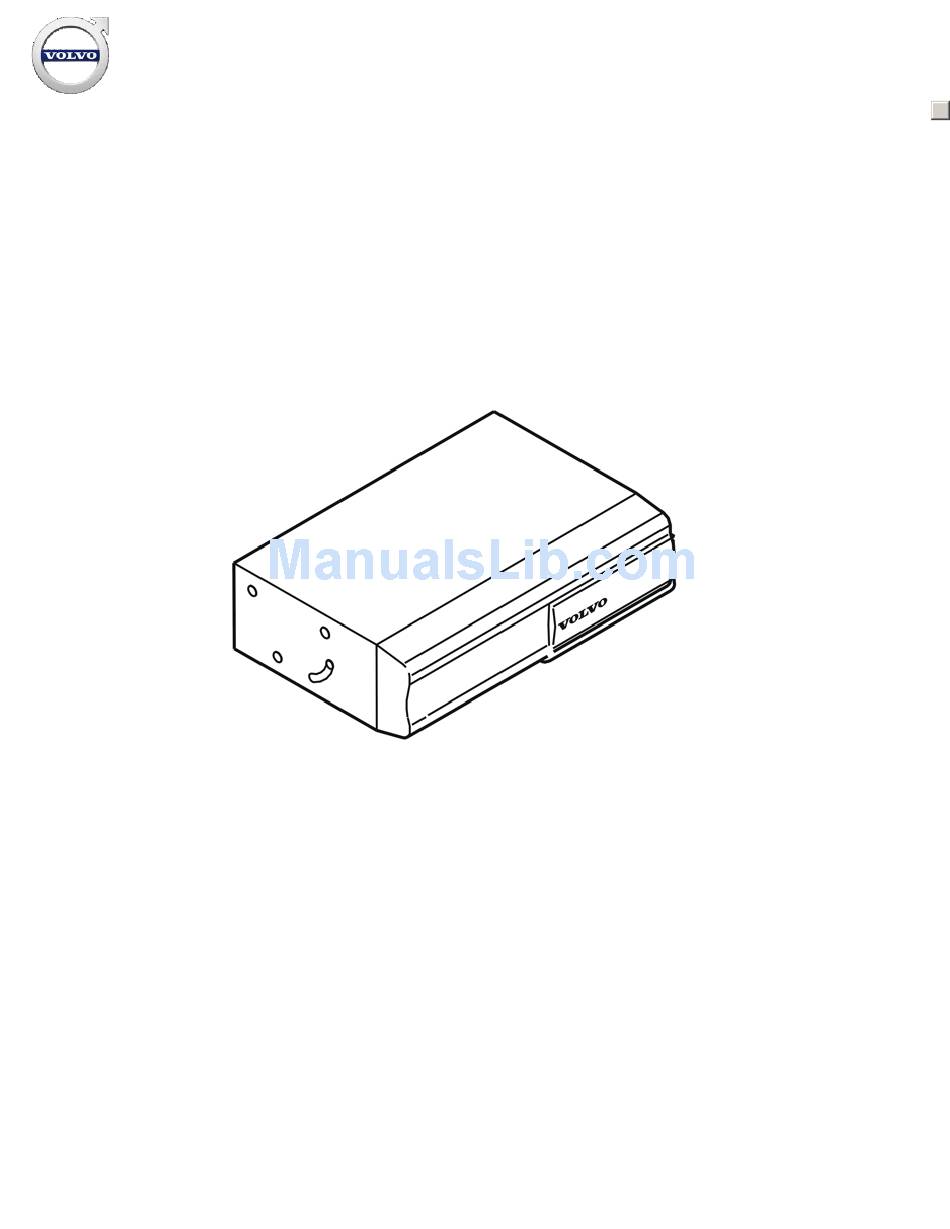

CD changer 10 CD
CD changer 10 CD
CD changer 10 CD- 30730089 - V1.0
Page 1 / 17
5
5
5
5
Advertisement
Related Manuals for Volvo 10 CD
Summary of Contents for Volvo 10 CD
- Page 1 Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 30730089 30730089 CD changer 10 CD CD changer 10 CD D3903690 D3903690 © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 1 / 17...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 A0000161 A0801178 D8802049 © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 2 / 17...
- Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden D3904947 © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 3 / 17...
- Page 4 Move the left front seat to its rearmost position. Turn the ignition key to position 0 Remove the key from the ignition switch (does not apply to cars with automatic gearboxes) © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 4 / 17...
- Page 5 Remove the screws (2) from the dashboard environment panel. M8503890 Angle the dashboard environment panel outwards so that it is possible to insert a couple of fingers between the centre © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 5 / 17...
- Page 6 (2) at the left front door the cover (3) and the screws (4) for the front mountings in the left-hand front seat. D8502410 © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 6 / 17...
- Page 7 Insert a hand down the side of the lower section of the left-hand side cushion. Release the catches. At the same time lift the side cushion. Place the cushion to one side Fold the backrest forward. © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 7 / 17...
- Page 8 It is easiest to access the front upper clip from the side of the rear seat Remove the front side panel. © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 8 / 17...
- Page 9 Take the power supply cable for the CD-changer from the kit. Connect the ground lead to the front ground terminal (1) in the rear seat © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 9 / 17...
- Page 10 Install the small bracket (1) (for the CD ROM reader bracket) in the rear crossmember under the left tail lamp. Use the screw (2) from the kit. © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 10 / 17...
- Page 11 Insulate the cable. Secure the cable using the foam tape from the kit. It must not come into contact with the chassis. J3703418 © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 11 / 17...
- Page 12 Press in the catches on the rear brown connector in the fuse holder in the cargo compartment. Turn up the lock arm as far as possible. Pull out the connector. © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 12 / 17...
- Page 13 Connect the red/white (R/W) cable with the smaller cable terminal to position 8 in the connector Reinstall the connector in the holder. Reinstall the entire unit in the fuse holder. © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 13 / 17...
- Page 14 Install the dust cover (3) over the holes for the transport screws. A3902617 Take four screws, the bracket and the CD changer from the kit. Tighten the CD changer at the bracket. © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 14 / 17...
- Page 15 Connect the cable (2) to the radio Secure the cable harness at the cable duct. Use a tie strap (3) as illustrated Clamp any cable excess to the cable harness. D3903699 © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 15 / 17...
- Page 16 Connect the other connectors which were disconnected from the radio Reinstall the radio Connect the connectors to the dashboard environment panel. Reinstall the dashboard environment panel © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 16 / 17...
- Page 17 Turn the ignition key to position II Reconnect the battery negative lead Reinstall the carpet in the cargo compartment Program the software according to the service information in VIDA. A8800137 © Volvo Car Corporation CD changer 10 CD- 30730089 - V1.0 Page 17 / 17...
