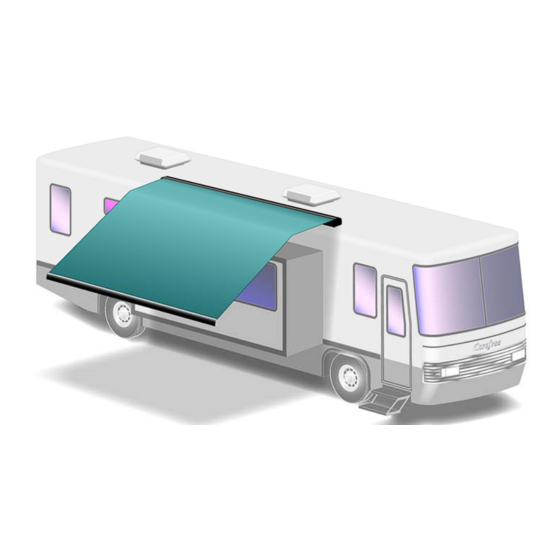

Carefree PARAMOUNT Installation Manual

RV
Self contained, no need for additional awning rails or other attachments;
Mounting does not interfere with the side walls, windows or other
accessories, the awning can be positioned without concern of obstructions;
Available for single, double and quad installations;
Lateral support 2- stage arm design;
3 pre-set extend positions: Side-Out Cover, Side-Out Cover + Window, and full Patio extension.
Direct Response Auto-Retract system, the latest in electronic controls with automatic retract, sensitivity
control and no anemometer. The system includes an RF remote;
New key pad design provides a positive tactile feel and total control for all the awnings in one master panel
including Standard Operation, Position Control and the Direct Response sensitivity settings.
P S
ROPRIETARY TATEMENT
The Paramount Patio Awning is a product of Carefree of Colorado, located in Broomfield, Colorado, USA. The information contained in or
disclosed in this document is considered proprietary to Carefree of Colorado. Every effort has been made to ensure that the information presented
in the document is accurate and complete. However, Carefree of Colorado assumes no liability for errors or for any damages that result from the
use of this document.
The information contained in this manual pertains to the current configuration of the models listed on the title page. Earlier model configurations
may differ from the information given. Carefree of Colorado reserves the right to cancel, change, alter or add any parts and assemblies, described
in this manual, without prior notice.
Carefree of Colorado agrees to allow the reproduction of this document for use with Carefree of Colorado products only. Any other reproduction or
translation of this document in whole or part is strictly prohibited without prior written approval from Carefree of Colorado.
052548-001r1
I
NSTALLATION
2-Stage Multi-Position Awning
Printed in USA
M
ANUAL
P
ARAMOUNT
October, 2007
Table of Contents
