Read this manual before installing or servicing this product. Failure to follow the
instructions and safety precautions in this manual can result in personal injury and/or
cause the product to not operate properly.
S
PECIFICATIONS
Mounting
a) LED light strip is mounted in the roller tube. The power harness is concealed in the canopy hem.
Options:
LED light strip is mounted at the awning rail. Requires special canopy with integrated strip holder
b)
Length:
Available for awnings 10' - 21'
Power:
1A, 12Vdc
Colors:
a) Bright White
b) Warm White
Controls:
a) Single pole, single throw switch (SR0101)
b) Lighted single throw switch (SR0111)
Note: For an installer furnished switch, see notes in
"Switch Installation " on page Error! Bookmark not
defined..
Note: Aftermarket upgrade kits from Carefree use RF remotes and controllers for white and RGB
installations. These controls are not interchangeable with the factory installed controls.
T
C
ABLE OF
ONTENTS
Switch and Power Installation ...................................................................................................... 1
White LED...............................................................................................................................................
RGB LED (OEM Option) .........................................................................................................................
Awning LED Layouts..................................................................................................................... 3
Small Box and Marquee LED Layouts ....................................................................................................
Big Box LED Layouts ..............................................................................................................................
Replacing the LED Strip ................................................................................................................ 5
Wire Harness Replacement .......................................................................................................... 6
LED Components .......................................................................................................................... 7
This manual covers LED lighting applications used with box awnings. For vertical arm awning
applications, refer to 052584-301 "LED Service Manual for Vertical Arms" available on-line at
www.carefreeofcolorado.com
070013-301r2
White LED:
6000K (standard)
3000K (OEM option)
Printed in USA
S
ERVICE
B
A
OX
WNING
Color LED:
2A 12Vdc
RGB (with variable color control)
IR (infrared) Remote and Controller Kit
(SR0109)
M
ANUAL
LED

1
2

3
4



June, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED Lighting and is the answer not in the manual?

Questions and answers

Related Manuals for Carefree LED Lighting

Summary of Contents for Carefree LED Lighting

  • Page 1: Table Of Contents

    Note: For an installer furnished switch, see notes in "Switch Installation " on page Error! Bookmark not defined.. Note: Aftermarket upgrade kits from Carefree use RF remotes and controllers for white and RGB installations. These controls are not interchangeable with the factory installed controls. ABLE OF ONTENTS Switch and Power Installation ......................
  • Page 2 Carefree of Colorado agrees to allow the reproduction of this document for use with Carefree of Colorado products only. Any other reproduction or translation of this document in whole or part is strictly prohibited without prior written approval from Carefree of Colorado.

  • Page 3: Switch And Power Installation

    (+12VDC) be attached to a dedicated 2A circuit breaker or a 2A in-line fuse must be installed between the switch and power source. For easy access, locate the fuse close to the switch. The following steps describe the switch and fuse installation using the switch and fuse kit available from Carefree. 1 . 1 3 "...

  • Page 4: Rgb Led (Oem Option)

    LED L Service Manual Carefree of Colorado WNING IGHTING RGB LED (OEM O PTION 2A In-line Fuse +12VDC Route Power Harness Slot Cover w/ Sensor Cable 18awg Wire LED Strip (minimum) Vehicle Wall LED Strip Control Module Remote Polarity Alignment:...

  • Page 5: Awning Led Layouts

    Carefree of Colorado Service Manual Box Awning LED L IGHTING LED L WNING AYOUTS LED L MALL OX AND ARQUEE AYOUTS These illustrations show the basic LED layout for the Freedom WM, Freestyle WM, Freedom RM and Marquee. Refer to the next page for big box awnings.

  • Page 6: Big Box Led Layouts

    LED L Service Manual Carefree of Colorado WNING IGHTING LED L AYOUTS These illustrations show the basic LED layout for the Mirage, Mirage 2-Stage, Apex and Paramount. Refer to the previous page for small box awnings. Route Harness Wire Connector...

  • Page 7: Replacing The Led Strip

    Carefree of Colorado Service Manual Box Awning LED L IGHTING LED S EPLACING THE TRIP Refer to the appropriate awning LED layout illustrations on pages 2 and 3. 1. Extend the awning out completely. 2. Disconnect power to the awning and LED strip.

  • Page 8: Wire Harness Replacement

    LED L Service Manual Carefree of Colorado WNING IGHTING ARNESS EPLACEMENT (refer to the illustrations on pages 2 and 3) 1. Extend the awning out to access the inside of the case or lead rail as required. 2. Disconnect power to the awning and LED.

  • Page 9: Led Components

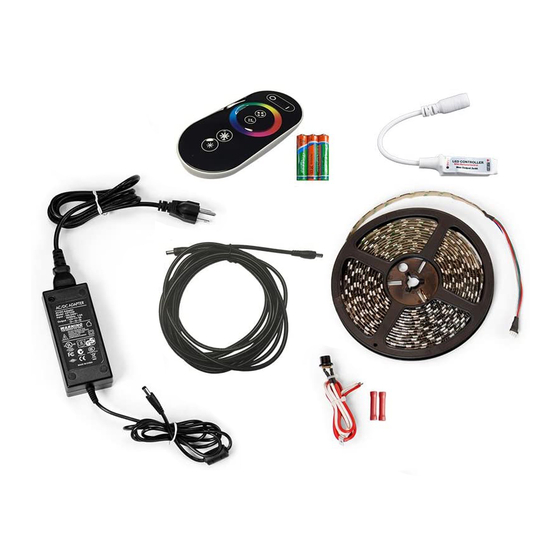

    Carefree of Colorado Service Manual Box Awning LED L IGHTING LED C OMPONENTS Factory Installed Power Harness WHITE LED COLOR LED FLASH External Power Harnesses STROBE (used with Aftermarket kits SR0112 & SR0113) FADE OF F SMOOTH used with Aftermarket kit SR0112...
