Read this manual before installing or using this product. Failure to follow the instructions
and safety precautions in this manual can result in personal injury and/or cause the
product to not operate properly.
T
C
ABLE OF
ONTENTS
Product Overview .......................................................................................................................... 1
Component Checklist.............................................................................................................................. 1
Installation ..................................................................................................................................... 2
Pre-Installation Requirements ................................................................................................................ 2
Mounting the Awning .............................................................................................................................. 2
Attaching the Canopy ..................................................................................................................... 3
Secure the Awning ......................................................................................................................... 3
Remove the Temporary Assembly Pins ......................................................................................... 3
Adjusting the Arm Position ............................................................................................................. 4
Jumping the Motor (when Direct Response is Installed) ........................................................................ 4
Jumping the Motor (without Direct Response) ........................................................................................ 4
Adjusting the Pitch .................................................................................................................................. 5
Switch Installation ......................................................................................................................... 7
Wiring Diagram - LCDR .......................................................................................................................... 8
LED Lighting .................................................................................................................................. 9
Switch Installation ................................................................................................................................... 9
070005-001r12
I
NSTALLATION
12V M
OTORIZED
Printed in USA
M
ANUAL
L
ATITUDE
L
A
A
ATERAL
RM
WNING
May, 2019





Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Latitude and is the answer not in the manual?

Questions and answers

Related Manuals for Carefree Latitude

Summary of Contents for Carefree Latitude

  • Page 1: Table Of Contents

    NSTALLATION ANUAL ATITUDE 12V M OTORIZED ATERAL WNING Read this manual before installing or using this product. Failure to follow the instructions and safety precautions in this manual can result in personal injury and/or cause the product to not operate properly. ABLE OF ONTENTS Product Overview ..........................
  • Page 2 ROPRIETARY TATEMENT The Latitude Awning is a product of Carefree of Colorado, located in Broomfield, Colorado, USA. The information contained in or disclosed in this document is considered proprietary to Carefree of Colorado. Every effort has been made to ensure that the information presented in the document is accurate and complete.

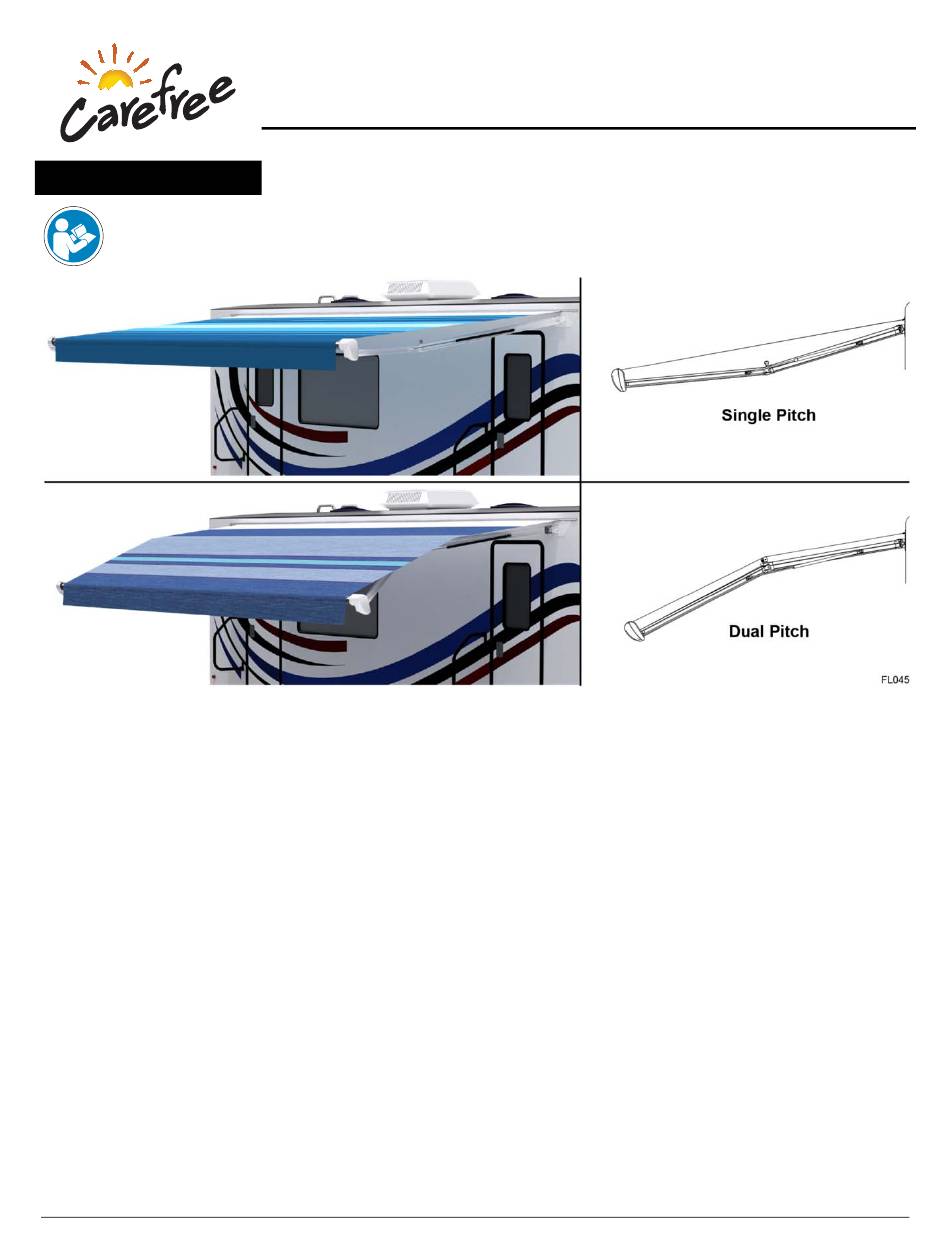

  • Page 3: Product Overview
