Summary of Contents for EnOcean PTM200

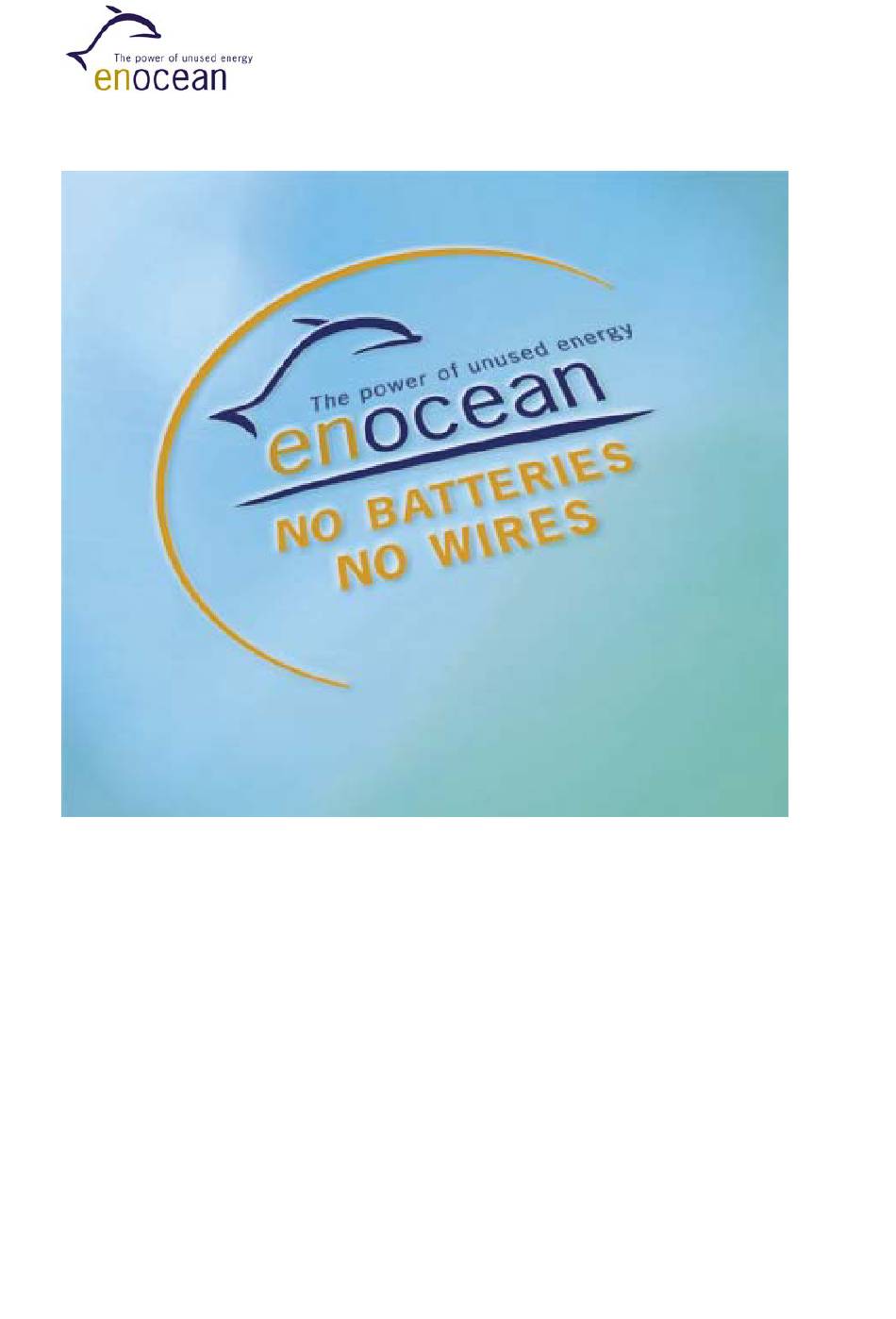

- Page 1 Pushbutton Transmitter Device PTM 200 User Manual V1.1 March 2005...
-
Page 2: Revision History
EnOcean does not assume responsibility for use of devices described and limits its liability to the replacement of devices determined to be defective due to workmanship. Devices or systems containing RF components must meet the essential requirements of the local legal authorities. -
Page 3: Table Of Contents
3.6 FCC/IC Approval Requirements ___________________________________________________ 19 4. DEVELOPMENT TOOLS _________________________________________________________________ 21 4.1 Evaluation Kit EVA 100 ____________________________________________________________ 21 4.2 Field Intensity Meter EPM 100 ____________________________________________________ 21 5. DECLARATION OF CONFORMITY ______________________________________________________ 22 ©EnOcean GmbH, A. Anders Page 3 of 22 PTM 200 User Manual V1.1... -
Page 4: General Description
Power is provided by a built-in electro- dynamic power generator. The PTM 200 device serves the 868 MHz air interface protocol of EnOcean. Together with the receiver devices RCM 110 or RCM 120, this device can be easily integrated in operation and control units for the implementation of different application-specific system solutions. -
Page 5: Typical Applications
Key applications are wall-mounted flat rocker switches with 1 or 2 rockers (with medial position), as well as handheld remote controls with up to 4 single pushbuttons. The PTM 200 device is part of a powerful RF system solution from EnOcean for operation and control applications. -
Page 6: Mechanical Interface
Number of operations: ..> 50.000 actuations tested according to VDE 0632 / EN 60669 Cover material: .................. Hostaform (POM) Energy bow material:................... tbd. Color of device: ................RAL 9002 (light gray) Figure 2: PTM 200, tilted view (including rocker catwalks) ©EnOcean GmbH, A. Anders Page 6 of 22 PTM 200 User Manual V1.1... - Page 7 1) Catwalks are not needed when using one rocker only Figure 3: PTM 200, top view (note cut A, B and C marking) ©EnOcean GmbH, A. Anders Page 7 of 22 PTM 200 User Manual V1.1...
- Page 8 Figure 4: PTM 200, cut A Figure 5: PTM 100, cut B and C Labeling area ©EnOcean GmbH, A. Anders Page 8 of 22 PTM 200 User Manual V1.1...
-
Page 9: Environmental Conditions
Operating temperature: ..............-25 up to +65 °C Storage temperature: ......-40 up to +85 °C, +85 up to +100 °C for 1h max. Humidity:.................... 0 % to 95 % r.h. ©EnOcean GmbH, A. Anders Page 9 of 22 PTM 200 User Manual V1.1... -
Page 10: Ordering Information
1.6 Ordering Information Type Ordering Information PTM 200 Pushbutton EnOcean Ordering Code: S3001-A200 Transmitter Device PTM 200 Rocker Model Please send an Email to info@enocean.com (Development Tool) IGS Data of PTM 200 Rocker Free Download from www.enocean.com Model (see Chapter 3.1) IGS Data of PTM 200 device Free Download from www.enocean.com... -
Page 11: Functional Description
Converts the contact nipples’ status and pushed/released data from the power generator into a reliable and energy-efficient serial telegram structure. HF transmitter Sends the data in the form of a series of short radio signals. ©EnOcean GmbH, A. Anders Page 11 of 22 PTM 200 User Manual V1.1... -
Page 12: Contact Nipples Designation
Note: Due to the mechanical hysteresis of the energy bow, in most rocker switch device implementations, pressing the rocker sends an N-message and releasing the rocker sends a U-message! ©EnOcean GmbH, A. Anders Page 12 of 22 PTM 200 User Manual V1.1... -
Page 13: Ptm 200 Radio Telegram
2.3 PTM 200 Radio Telegram For the transmission of the telemetric signals, EnOcean has defined a new dynamic radio data telegram that is adapted to the individual application. It is optimized to the essential features of energy autarkic radio sensors: •... - Page 14 Figure 11: PTM 200 radio timing 2.3.4 Reliable radio transmission within systems operating many sensors The very short telegrams of EnOcean transmitters enable the operating of a large number of senders within the same radio cell; the error rate caused by telegram collisions remains extremely low.
-
Page 15: Ptm 200 Serial Data Communication Via Receiver Device Rcm 120
When the RCM 120 receiver is set to Mode 0 “Serial Interface”, it transfers out data blocks of information from all received EnOcean radio telegrams (from PTM-, STM-, TCM- and CTM-radio devices). For a complete transmitter message, a telegram of 14 data bytes is transferred via the serial link. -
Page 16: Learning Of Ptm 200 To Rcm 110/120 Receivers
• Learning procedure for EnOcean transmitters, easy to operate Any further switching functions can be simply and flexibly implemented using the serial interface output of the RCM 120 that is connected to a low-priced microcontroller. The required output control logic can be easily programmed by the user. -
Page 17: Applications Information
3. APPLICATIONS INFORMATION 3.1 Rocker Model For evaluating the PTM 200, a neutral model of a double-rocker is available from EnOcean that can be easily snapped onto the PTM 200 device case: Figure 14: Rocker Model for PTM 200 Figure 15: Rocker model snapped onto the device Please note that pressing the rocker sends a N-message, and releasing the rocker sends a U- message. -
Page 18: Construction Of Suitable Switch Rockers
3.2 Construction of Suitable Switch Rockers For CAD system development support, 3D construction data of the rocker model of Chapter 3.1 are available from EnOcean (IGS data) . Using this data, the mechanical interface is fixed, and the shape and surface of the rocker(s) can be changed according to requirements. -
Page 19: Ce Approval Requirements
EnOcean RF devices must not be modified or used outside their specification limits. • EnOcean RF devices may only be used to transfer digital or digitized data. Analog speech and/or music are not permitted. The final product incorporating EnOcean RF devices must itself meet the essential •... - Page 20 Warning: Changes or modifications made to this equipment not expressly approved by EnOcean may void the FCC authorization to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 21: Development Tools
4.1 Evaluation Kit EVA 100 EVA 100 is an evaluation kit to support a simple setting-up operation of the receiver side when the EnOcean transmitter device PTM 200 is evaluated. EVA 100 supports a quick evaluation of all RCM 110 and RCM 120 receiver operation modes and supports the fast development of applications. -
Page 22: Declaration Of Conformity
5. DECLARATION OF CONFORMITY Will be available with PTM 200 series release ©EnOcean GmbH, A. Anders Page 22 of 22 PTM 200 User Manual V1.1...
