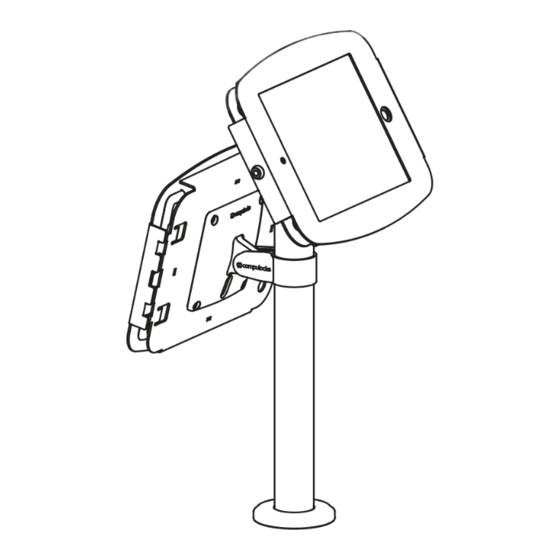

Additional Single VESA Bracket for the Rise Stand
SKU: TCDP1AO/W

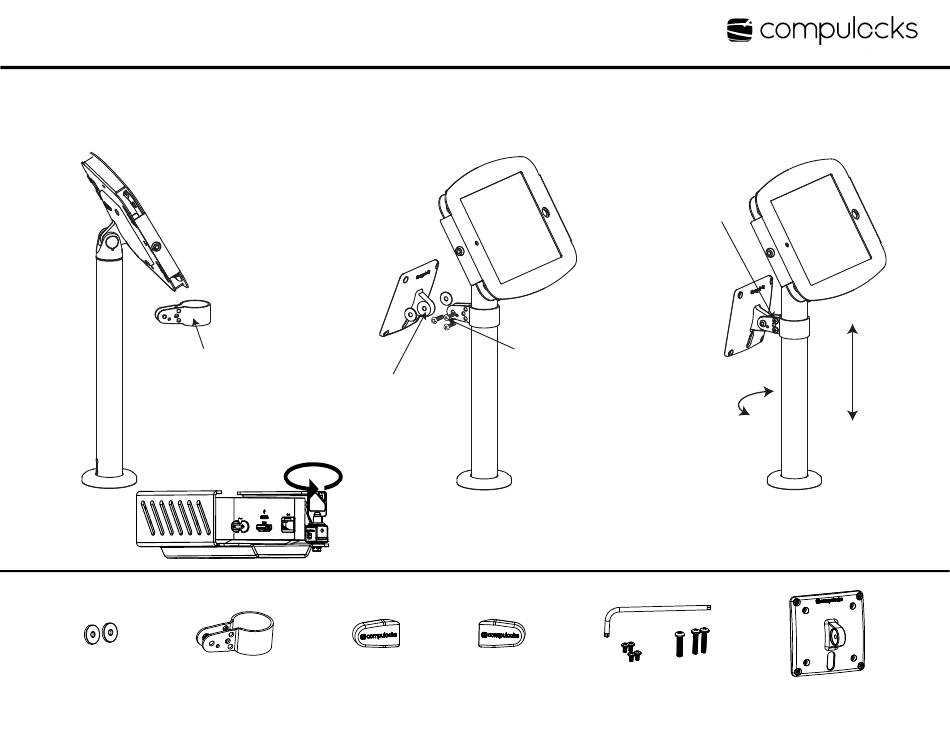

Assembly Instructions
1
2
3
AFTER POSITIONING,
TIGHTEN 2 x M5
PHILLIPS PAN
HEAD SCREWS
SLIGHTLY OPEN THE
INSERT 2 x M5
BRACKET AND INSTALL
POSITION
PHILLIPS PAN HEAD
ON RISE STAND
INSERT VESA MOUNT
SCREWS,
AND WASHERS
FINGER TIGHT
POSITION
(ONE ON EACH SIDE)
INTO THE BRACKET.
INSERT 1 x M6 TORX BUTTON
HEAD AND FINGER TIGHTEN
IN THE BOX
Washers 100mm
Cover, LH, Forward
Cover, RH, Forward
Mounting Plate
Forward Facing Bracket
Facing Bracket
Facing Bracket
Hardware Kit
100mm Attachment Bracket
©Compulocks Brands Inc. All Rights Reserved.j
www.compulocks.com | online@maclocks.com | +1 800-948-0344
Sheet 1 of 2
Advertisement
Table of Contents
Related Manuals for compulocks TCDP1AO/W
Summary of Contents for compulocks TCDP1AO/W
- Page 1 IN THE BOX Washers 100mm Cover, LH, Forward Cover, RH, Forward Mounting Plate Forward Facing Bracket Facing Bracket Facing Bracket Hardware Kit 100mm Attachment Bracket ©Compulocks Brands Inc. All Rights Reserved.j www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 1 of 2...
- Page 2 WITH TORX WRENCH PROVIDED ADJUST TILT TO DESIRED TENSION INSTALL YOUR TABLET ENCLOSURE AS SHOWN USING M4 SCREWS PROVIDED WITH ENCLOSURE INSTALL PLASTIC COVERS COMPLETED ASSEMBLY ©Compulocks Brands Inc. All Rights Reserved.j www.compulocks.com | online@maclocks.com | +1 800-948-0344 Sheet 2 of 2...
