OMSID # 205703188
Model # THD338399.1a
USE AND CARE GUIDE

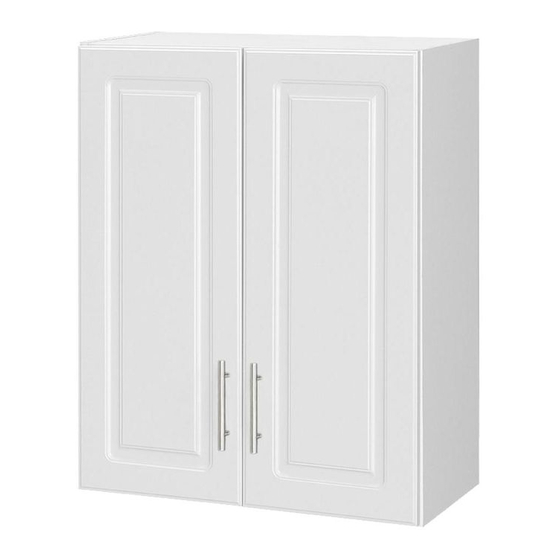

Elite 2-Door Wall Cabinet - White
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this bookcase. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY THD338399.1a
Summary of Contents for HAMPTON BAY THD338399.1a
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this bookcase. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 . -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Compare all parts with the Hardware Included and Package Contents lists in this manual. If any part appears missing or damaged, do not assemble this product. Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com. TOOLS REQUIRED Flathead Phillips screwdriver... -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Top/Bottom Side Panel Cross Bars Adjustable Shelf Left Door Right Door... -
Page 5: Assembly
Assembly Preparing the two top and two Assembling the bottom side panel □ Screw four cam bolts (b) into the appropriate holes on the □ Insert eight wood dowels (c) into the two cross bars (C). two tops (A). □ Place the cross bars (C) over the cam bolts (b) on the top/bottom (A). □... - Page 6 Assembly (continued) Assembling the side panel Assembling the other side panel □ Connection side panel (B) and two tops (A) and cross bars (C) , □ Follow Step 3 to install other side panel (B). ensure that the wood dowels (c) and cam bolts (b) are fully inserted into the appropriate holes.
- Page 7 Assembly (continued) Assembling the adjustable shelves Assembling the door and hinge □ Insert four shelf supports (d) into the desired holes the cabinets □ Through two screws (g) with one hinge (h) to lock on the door , assembly and place inside the shelf (D) on top of the supports (d). the same assembling step for the other hinges (h).
- Page 8 Assembly (continued) To adjust the vertical height. Loosen the four screws "A" on both hinges. Two of them are usually in slotted holes which mean and you can adjust up or down by a few mm. Then tighten back up To adjust depth.
-
Page 9: Weight Limits
Assembly (continued) Installing wall cabinets to the WEIGHT LIMITS (option) wood wall □ This unit has been designed to support the maximum loads shown. □ Drill 2/16" diameter holes (2.5mm) in the wood wall , height Exceeding these load limits could cause sagging, instability, corresponding with the cross bars (C) holes ,through cross bars product collapse, and/or serious injury. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m.-6 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
