Model # THD337311.2a
USE AND CARE GUIDE

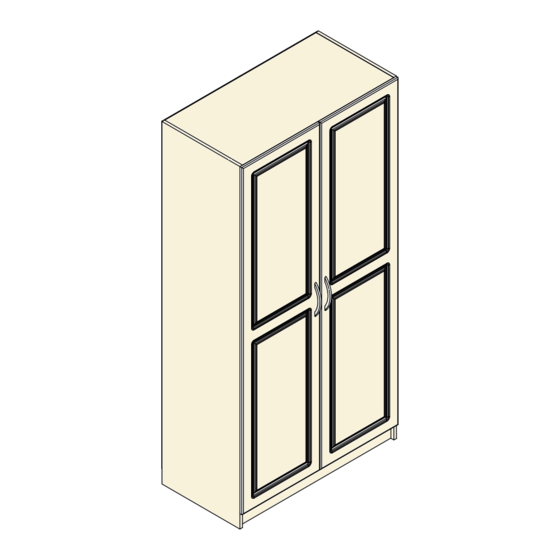

Elite Storage Cabinet - Espresso
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this bookcase. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY Espresso
Summary of Contents for HAMPTON BAY Espresso
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this bookcase. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 . -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Compare all parts with the Hardware Included and Package Contents lists in this manual. If any part appears missing or damaged, do not assemble this product. Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com. TOOLS REQUIRED Flathead Phillips screwdriver... -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Bottom Left Side Panel Right Side Panel Partition Fixed Shelf Door Back Panel Adjustable Shelf Bottom Front Rail Hanging Rod... -
Page 5: Assembly
Assembly Preparing the top , fixed shelf and partiton □ Insert four wood dowels (c) into the top (A). □ Insert four wood dowels (c) into the fixed shelf (F) , Turn two cam bolts (b) into the holes in the fixed shelf (F). - Page 6 Assembly (continued) Preparing the side panel □ Turn seven cam bolts (b) into the holes in the left side panel (C) , useing two screws (g) fixed rod holder (j) with the left side panel (C). □ Turn seven cam bolts (b) into the holes in the right side panel (D).
- Page 7 Assembly Assembling the bottom and bottom front rail □ Insert eight wood dowels (c) into the bottom (B) and bottom front rail (J). □ Turn three cam bolts (b) into the holes in the bottom (B). □ Connection bottom (B) and bottom front rail (J) , ensure that the wood dowels (c) and cam bolts (b) are fully inserted into the appropriate holes.
- Page 8 Assembly (continued) Assembling the partiton and bottom □ Turn two cam bolts (b) into the holes in the bottom (B) , be careful of the cam locks holes on the other side. □ Connection partition (E) and bottom (B) , ensure that the wood dowels (c) and cam bolts (b) are fully inserted into the appropriate holes.
- Page 9 Assembly Assembling the right side panel □ Connection top (A) , fixed shelf (F) , bottom (B) , bottom front rail (E) , and right side panel (D) , ensure that the wood dowels (c) and cam bolts (b) are fully inserted into the appropriate holes.
- Page 10 Assembly (continued) Assembling the left side panel □ Connection top (A) , fixed shelf (F) , bottom (B) , bottom front rail (E) , and left side panel (C) , ensure that the wood dowels (c) and cam bolts (b) are fully inserted into the appropriate holes.
-
Page 11: Weight Limits
Assembly (continued) Assembling the back panel □ Fasten the back panels (H) to the assembled unit using thirty-seven screws (i) , Do not over tighten the screws. □ Opening the safety strap kit , screw the washer and strap to the back panel (H) as the picture showing below. Before attaching the back panel be sure that the unit is at 90°... - Page 12 Assembly (continued) Assembling the hanging rod and hinge □ Insert hanging rod (K) into the two rod holders (j). □ Insert eight shelf supports (d) into the desired holes the cabinets assembly and place inside the two shelves (I) on top of the supports (d). □...
- Page 13 Assembly (continued) Assembling the door □ Through two screws (g) with one hinge (h) to lock on the door , the same assembling step for the other five hinges (h). □ Through four bolts (e) connect two knob (f) with the doors (G). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 14 Assembly (continued) To adjust the vertical height. Loosen the four screws "A" on both hinges. Two of them are usually in slotted holes which mean and you can adjust up or down by a few mm. Then tighten back up To adjust depth.
- Page 15 Assembly (continued) WEIGHT LIMITS (option) Securing the cabinets to the wall □ This unit has been designed to support the maximum loads shown. □ Drill a 3/16" diameter hole (5mm) in the wallboard. Tap the wall Exceeding these load limits could cause sagging, instability, anchor into the hole until it is flush.
- Page 16 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m.-6 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
