Quick Links

OMSID # 205703190
Model # THD90066.6a.ST
USE AND CARE GUIDE

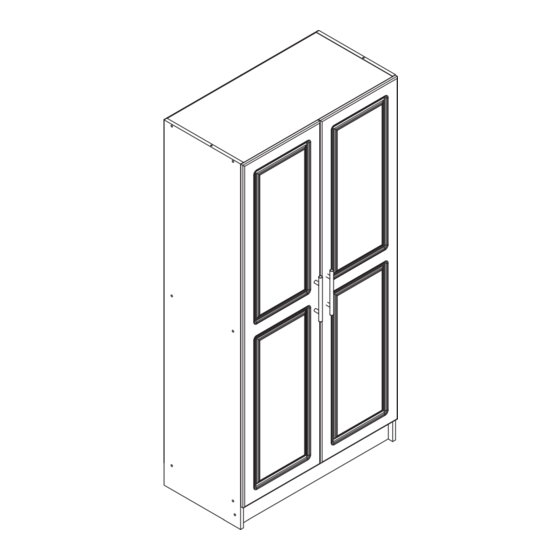

Elite Storage Cabinet-White
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this bookcase. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THD90066.6a.ST and is the answer not in the manual?

Questions and answers

Summary of Contents for HAMPTON BAY THD90066.6a.ST

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this bookcase. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........2 .
  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Compare all parts with the Hardware Included and Package Contents lists in this manual. If any part appears missing or damaged, do not assemble this product. Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com. TOOLS REQUIRED Flathead Phillips screwdriver...
  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Bottom Left Side Panel Right Side Panel Bottom Front Rail Adjustable Shelf Back Panel Left Door Right Door...
  • Page 5: Assembly

    Assembly Preparing the two top , bottom panel and bottom front rail □ Insert eight wood dowels (a) into the two top (A). □ Insert eight wood dowels (a) into the bottom panel (B) and bottom front rail (E). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 6 Assembly (continued) Assembly framework □ Connect left side panel (C) and bottom panel (B) and bottom front rail (E) and two top (A) , Ensure that the wood dowels (a) are fully inserted into the appropriate holes. □ Using screwdriver to tighten seven screws (b) , make sure the finished sides of the panel face in toward the mantle. □...
  • Page 7 Assembly (continued) Assembling the back panel and strap □ Fasten the back panels (G) to the assembled unit using thirty-three screws (d) , Do not over tighten the screws. □ Opening the safety strap kit , screw the washer and strap to the back panel (G) as the picture showing below.
  • Page 8 Assembly (continued) Assembling the adjustable shelves and hinge □ Insert eight shelf supports (c) into the desired holes the cabinets assembly and place inside the shelves (F) on top of the supports (c). □ Through four screws (g) with one hinge (h) to lock on the side panel , the same assembling step for the other hinges (h).
  • Page 9 Assembly (continued) Assembling the door □ Through two screws (g) with one hinge (h) to lock on the door , the same assembling step for the other hinges (h). □ Through two bolts (e) connect knob (f) with the door (H and I) , the same assembling step for the other knob (f). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Assembly (continued) To adjust the vertical height. Loosen the four screws "A" on both hinges. Two of them are usually in slotted holes which mean and you can adjust up or down by a few mm. Then tighten back up To adjust depth.
  • Page 11: Weight Limits

    Assembly (continued) WEIGHT LIMITS Securing the cabinets to the wall □ Drill a 3/16" diameter hole (5mm) in the wallboard. Tap the wall □ This unit has been designed to support the maximum loads shown. anchor into the hole until it is flush. Fasten the safety strap to Exceeding these load limits could cause sagging, instability, product the wall anchor with the long screw.
  • Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m.-6 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
