Model TCS20SN
USE AND CARE GUIDE

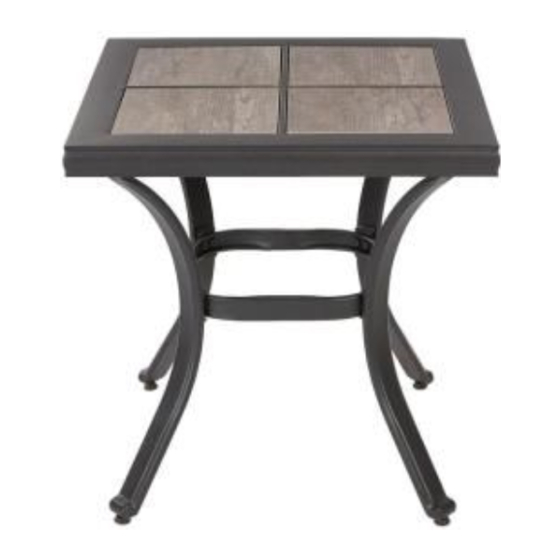

Crestridge Tile Top Side Table
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
y through the purchase of this dining set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY Crestridge TCS20SN
Summary of Contents for HAMPTON BAY Crestridge TCS20SN
- Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Safety Warnings
Table of Contents Table of Contents ............2 Table Assembly.............5 Safety Information ............2 Care and Cleaning............7 Product Caution ..............2 Safety Warnings ..............2 Warranty ................ 2 What is Covered ..............2 What is Not Covered ..............2 Pre-Assembly .............. -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... - Page 4 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table top Table leg Center connector Tile...
- Page 5 Table Assembly Connecting the table legs to the table top Place the table top (A) upside down on a soft surface. Attach the table legs (B) to the table top (A) using M6x16 bolts (AA) and d6.5xD13x1.0 washers (BB). NOTE: Loosely tighten all the bolts using the hex wrench (CC). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 6 Table Assembly (continued) Attaching the leg connector Attach the center connector (C) to the table legs (B) using M6x16 bolts (AA) and d6.5xD13x1.0 washers (BB). NOTE: Loosely tighten all the bolts using the hex wrench (CC).
-
Page 7: Care And Cleaning
Table Assembly (continued) Tightening the bolts and placing the tiles Once all of the bolts are in place, fully tighten the bolts. Turn the table right side up. Then put the tiles (D) onto the table top (A) carefully. Ensure all connections are secure before use. Care and Cleaning For best results, clean the set with a damp cloth and dry thoroughly. - Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
