OMSID # 205523739
Model # THD90067.1a.ST
USE AND CARE GUIDE

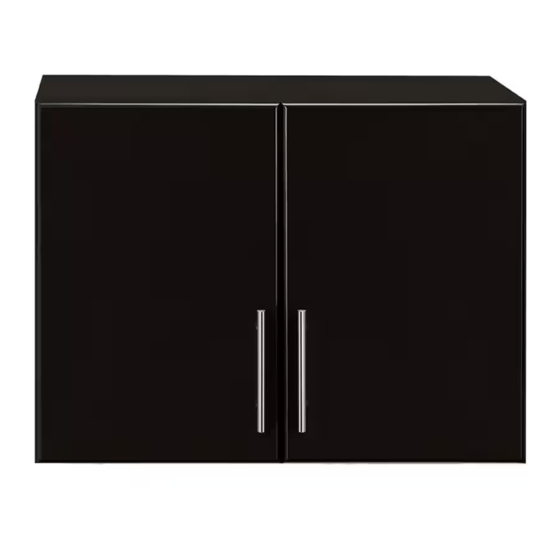

32 in White 2-Door Wall Cabinet
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this bookcase. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THD90067.1a.ST and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTON BAY THD90067.1a.ST

Summary of Contents for HAMPTON BAY THD90067.1a.ST

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this bookcase. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........2 .

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Compare all parts with the Hardware Included and Package Contents lists in this manual. If any part appears missing or damaged, do not assemble this product. Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com. TOOLS REQUIRED Flathead Phillips screwdriver...

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Top/Bottom Left Side Panel Right Side Panel Cross Bars Adjustable Shelf Back Panel Left Door Right Door...

  • Page 5: Assembly

    Assembly Preparing the two top and two cross bars □ Insert eight wood dowels (a) into the two tops (A). □ Insert eight wood dowels (a) into the two cross bars (D). Assembly framework □ Connect left side panel (B) and two tops (A) and two cross bars (D) , ensure that the wood dowels (a) are fully inserted into the appropriate holes. □...
  • Page 6 Assembly (continued) Assembling the back panel □ Fasten the back panels (F) to the assembled unit using twenty screws (d) , Do not over tighten the screws. Before attaching the back panel be sure that the unit is at 90° Assembling the adjustable shelves and hinge □...
  • Page 7 Assembly (continued) Assembling the door □ Through two screws (g) with one hinge (h) to lock on the door , the same assembling step for the other hinges (h). □ Through two bolts (e) connect knob (f) with the door (G and H) , the same assembling step for the other knob (f).
  • Page 8 Assembly (continued) To adjust the vertical height. Loosen the four screws "A" on both hinges. Two of them are usually in slotted holes which mean and you can adjust up or down by a few mm. Then tighten back up To adjust depth.
  • Page 9 Assembly (continued) Connection the 2-Door Wall Cabinet and the Storage Cabinet (option) □ Using two matel dowels (i) to fix the position of the 2-door wall cabinet and the storage cabinet. Warning: Make sure put the 2-door wall cabinet with knob under of the doors，if not this step may damage to the adjustable shelf and not connect the 2-door wall cabinet and the storage cabinet.
  • Page 10 Assembly (continued) Securing the cabinets to the wood wall (option) □ Drill 2/16" diameter holes (2.5mm) in the wood wall , corresponding to the hight of the cross bars (D) holes ,through cross bars hole using four 3" screws (k) tightening the 2-door wall cabinet onto the wood wall hole. NOTE: Fasten cabinets to the dry wall using the appropriate 3"...

  • Page 11: Weight Limits

    Assembly (continued) WEIGHT LIMITS (option) □ This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. WARNING: Please ensure that all the objects are removed before moving the assembled unit. The unit must be lifted by more than one person, not dragged or pushed.
  • Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m.-6 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
