HAMPTON BAY TACANA Use And Care Manual

4-piece steel woven sectional set
Hide thumbs

Advertisement

Quick Links

Download this manual
Item # 1001 025 044
Model # FRS80413DLA-ST

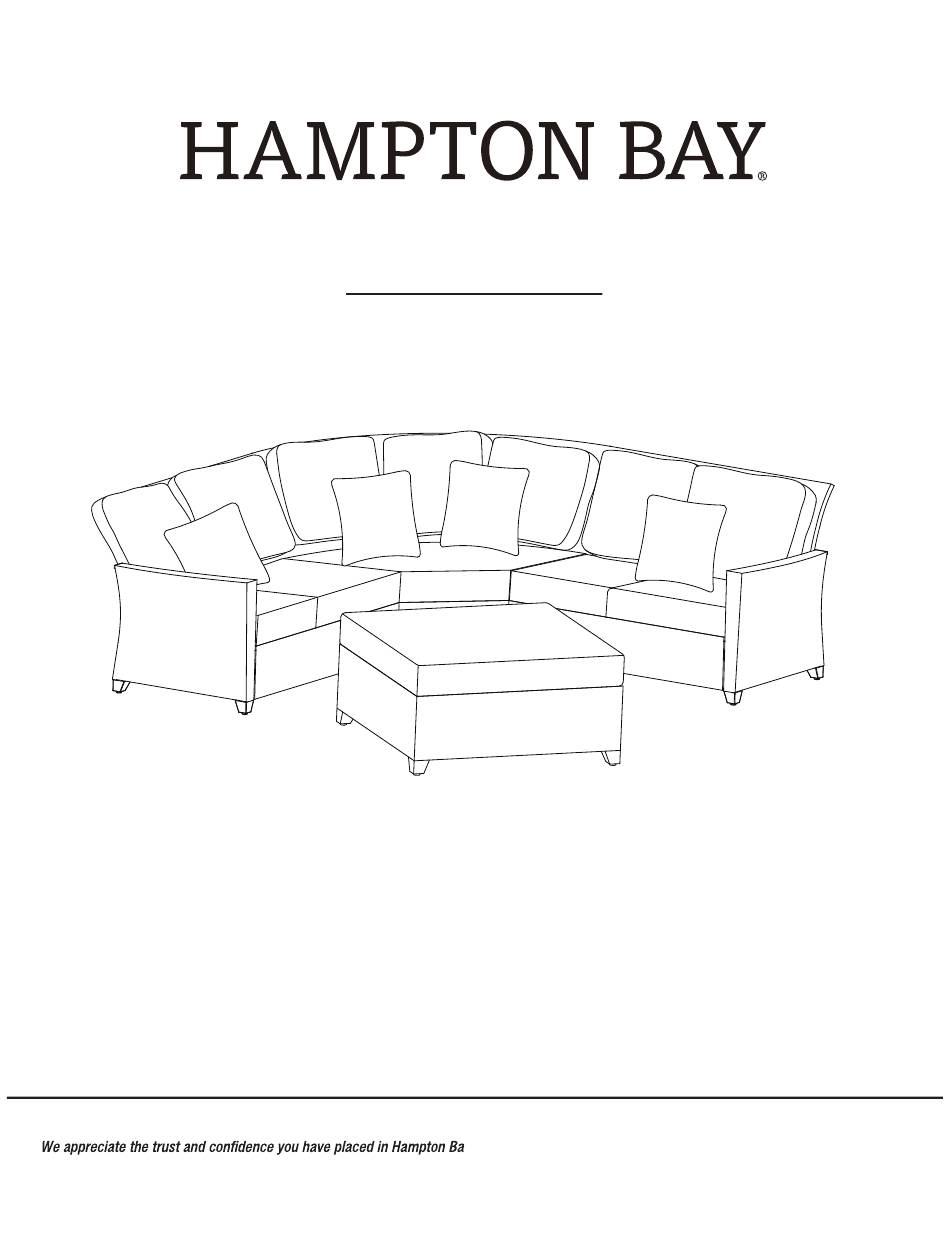

USE AND CARE GUIDE
TACANA 4-PIECE STEEL WOVEN SECTIONAL SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
y through the purchase of this sectional set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

loading
Need help?

Need help?

Do you have a question about the TACANA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY TACANA

Summary of Contents for HAMPTON BAY TACANA

  • Page 1 Item # 1001 025 044 Model # FRS80413DLA-ST USE AND CARE GUIDE TACANA 4-PIECE STEEL WOVEN SECTIONAL SET Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA...
  • Page 2 Table of Contents Table of Contents ............2 Left Arm Loveseat Assembly........8 Safety Information ............2 Right Arm Loveseat Assembly........2 Product Caution ..............2 Corner Chair Assembly..........6 Safety Warnings ..............2 Set Assembly..............19 Care and Cleaning............21 Warranty ................
  • Page 3 Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...
  • Page 4 Pre-Assembly (continued) LEFT ARM LOVESEAT PACKAGE CONTENTS Part Description Quantity Left arm Left arm loveseat backrest Left arm loveseat seat...
  • Page 5 Pre-Assembly (continued) RIGHT ARM LOVESEAT PACKAGE CONTENTS Part Description Quantity Right arm Right arm loveseat backrest Right arm loveseat seat HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 6 Pre-Assembly (continued) CORNER CHAIR PACKAGE CONTENTS Part Description Quantity Connect plate Corner chair backrest Corner chair seat...
  • Page 7 Pre-Assembly (continued) SET PACKAGE CONTENTS Part Description Quantity Right arm loveseat Left arm loveseat Corner chair Ottoman Seat cushion Back cushion Corner chair seat cushion Corner chair back cushion Ottoman cushion Pillow Plastic clip HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Left Arm Loveseat Assembly Attaching the left arm to the left arm loveseat backrest Attach the left arm (A) to the left arm loveseat backrest (B) using an M6x20 combination bolt (AA) as shown below. NOTE : Loosely tighten all bolts using the hex wrench (GG).
  • Page 9 Left Arm Loveseat Assembly (continued) Attaching the left arm loveseat seat to the left arm Attach the left arm loveseat seat (C) to the left arm (A) using an M6x20 combination bolt (AA) and M6x40 combination bolts (CC). NOTE : Loosely tighten all bolts using the hex wrench (GG). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Left Arm Loveseat Assembly (continued) Attaching the left arm loveseat seat to the left arm loveseat backrest Attach the left arm loveseat seat (C) to the left arm loveseat backrest (B) using M6x40 combination bolts (CC). Secure the left arm loveseat seat (C) to the left arm loveseat backrest (B) using M6x40 combination bolts (CC). NOTE : Loosely tighten all bolts using the hex wrench (GG).
  • Page 11 Left Arm Loveseat Assembly (continued) Tightening the bolts Once all of the bolts are in place, fully tighten the bolts. Turn the left arm loveseat right side up. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Right Arm Loveseat Assembly Attaching the right arm to the right arm loveseat backrest Attach the right arm (E) to the right arm loveseat backrest (F) using an M6x20 combination bolt (AA). NOTE : Loosely tighten all bolts using the hex wrench (GG).
  • Page 13 Right Arm Loveseat Assembly (continued) Attaching the right arm loveseat seat to the right arm Attach the right arm loveseat seat (G) to the right arm (E) using an M6x20 combination bolt (AA) and M6x40 combination bolts (CC). NOTE : Loosely tighten all bolts using the hex wrench (GG). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 14 Right Arm Loveseat Assembly (continued) Attaching the right arm loveseat seat to the right arm loveseat backrest Attach the right arm loveseat seat (G) to the right arm loveseat backrest (F) using M6x40 combination bolts (CC). Secure the right arm loveseat seat (G) to the right arm loveseat backrest (F) by using M6x40 combination bolts (CC). NOTE : Loosely tighten all bolts using the hex wrench (GG).
  • Page 15 Right Arm Loveseat Assembly (continued) Tightening the bolts Once all of the bolts are in place, fully tighten the bolts. Turn the right arm loveseat right side up. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 16 Corner Chair Assembly Attaching the corner chair seat to the corner chair backrest Attach the corner chair seat (I) to the corner chair backrest (H) using M6x35 combination bolts (BB). Secure the corner chair seat (I) to the corner chair backrest (H) by inserting M6x20 combination bolts (AA) through the connect plate (D).
  • Page 17 Corner Chair Assembly (continued) Attaching the corner chair seat to the corner chair backrest Attach the corner chair seat (I) to the corner chair backrest (H) using M6x35 combination bolts (BB). Secure the corner chair seat (I) to the corner chair backrest (H) by inserting M6x20 combination bolts (AA) throught the connect plate (D).
  • Page 18 Corner Chair Assembly (continued) Tightening the bolts Once all of the bolts are in place, fully tighten the bolts. Turn the corner chair right side up.
  • Page 19 Set Assembly Attaching the left arm loveseat and the right arm loveseat to the corner chair Turn the set right side up. Attach the left arm loveseat (K) and the right arm loveseat (J) to the corner chair (L) using M6x60 combination bolts (DD) through M6 washers (FF) into M6 nuts (EE), as shown below.
  • Page 20 Set Assembly (continued) Placing the ottoman Place the ottoman (M) in front of the assembled left arm loveseat (K), the corner chair (L) and the right arm loveseat (J).
  • Page 21 Set Assembly (continued) Checking the set Ensure all connections are secure before use. Place the seat cushions (N) and the back cushions (O), the corner chair seat cushion (P), the corner chair back cushions (Q), Care and Cleaning For best results, clean the sectional set with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 22 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. Factory chair ID # FRS80413DLA-ST...
