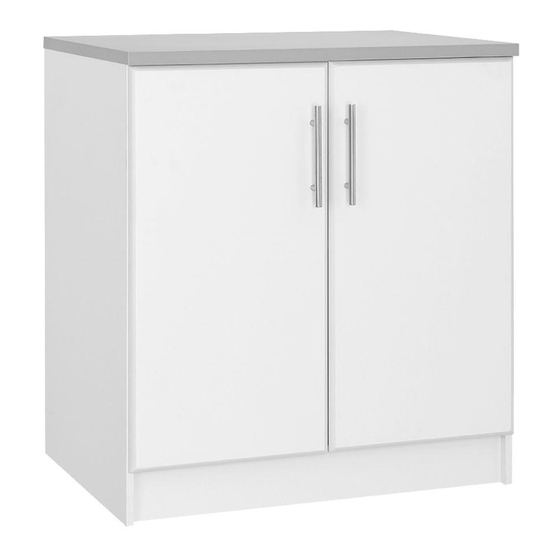

36 in white base 2-door cabinet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OMSID # 205523154
Model # THD90068.1a.ST
USE AND CARE GUIDE
36 in White Base 2-Door Cabinet
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this bookcase. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THD90068.1a.ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY THD90068.1a.ST

Summary of Contents for HAMPTON BAY THD90068.1a.ST

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this bookcase. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........2 .

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Compare all parts with the Hardware Included and Package Contents lists in this manual. If any part appears missing or damaged, do not assemble this product. Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com. TOOLS REQUIRED Flathead Phillips screwdriver...

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Bottom Left Side Panel Right Side Panel Bottom Front Rail Adjustable Shelf Cross Bars Left Door Right Door...

  • Page 5: Assembly

    Assembly Preparing the top , left side panel and Preparing the bottom , two cross bars right side panel and bottom front rail □ Screw four cam bolts (b) into the appropriate holes on the top (A). □ Insert four wood dowels (c) into the bottom panel (B). □...
  • Page 6 Assembly (continued) Assembly framework □ Connect left side panel (C) and bottom panel (B) , two cross bars (G) and bottom front rail (E) , Ensure that the wood dowels (c) are fully inserted into the appropriate holes. □ Using five screws (d) , make sure the finished side of the panel face toward the mantle , screwdriver to tighten the screws. □...
  • Page 7 Assembly (continued) Fliping the framework □ Stand up the framework. Unfinished Edge Attaching the top □ Place the top (A) on top of the assemle unit , ensuring all cam bolts (b) and wood dowels (c) fit together. □ Secure the top (A) by inserting four cam locks (a) into the holes of the left and right side panels (C and D) and turning the cam locks (a) clockwise until they lock into place over the cam bolts (b).
  • Page 8 Assembly (continued) Fliping the framework □ Insert four shelf supports (i) into the desired holes of the cabinets inside and places the shelves (F) on top of the supports (i). □ Through four screws (g) with one hinge (h) to lock on the side panel , the same assembling step for the other hinges (h). Finished edge...
  • Page 9 Assembly (continued) Assembling the door □ Through two screws (g) with one hinge (h) to lock on the door , the same assembling step for the other hinges (h). □ Through two bolts (e) connect knob (f) with the door (H and I) , the same assembling step for the other knob (f). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Assembly (continued) To adjust the vertical height. Loosen the four screws "A" on both hinges. Two of them are usually in slotted holes which mean and you can adjust up or down by a few mm. Then tighten back up To adjust depth.

  • Page 11: Weight Limits

    Assembly (continued) WEIGHT LIMITS □ This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. WARNING: Please ensure that all the objects are removed before moving the assembled unit. The unit must be lifted by more than one person, not dragged or pushed.
  • Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m.-6 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
