HAMPTON BAY TCS64PK Use And Care Manual

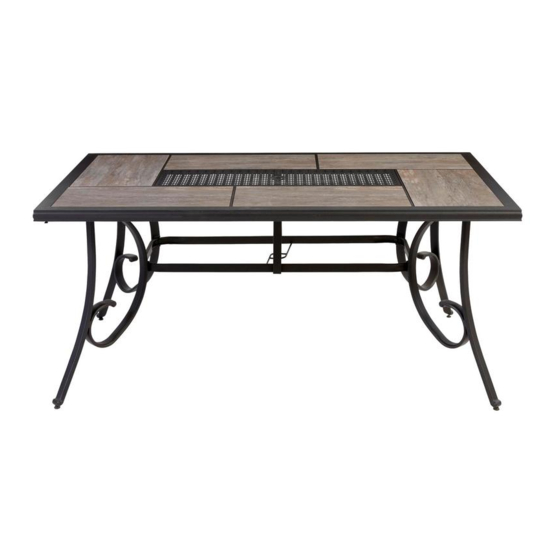

Crestridge tile top rectangular dining table
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual

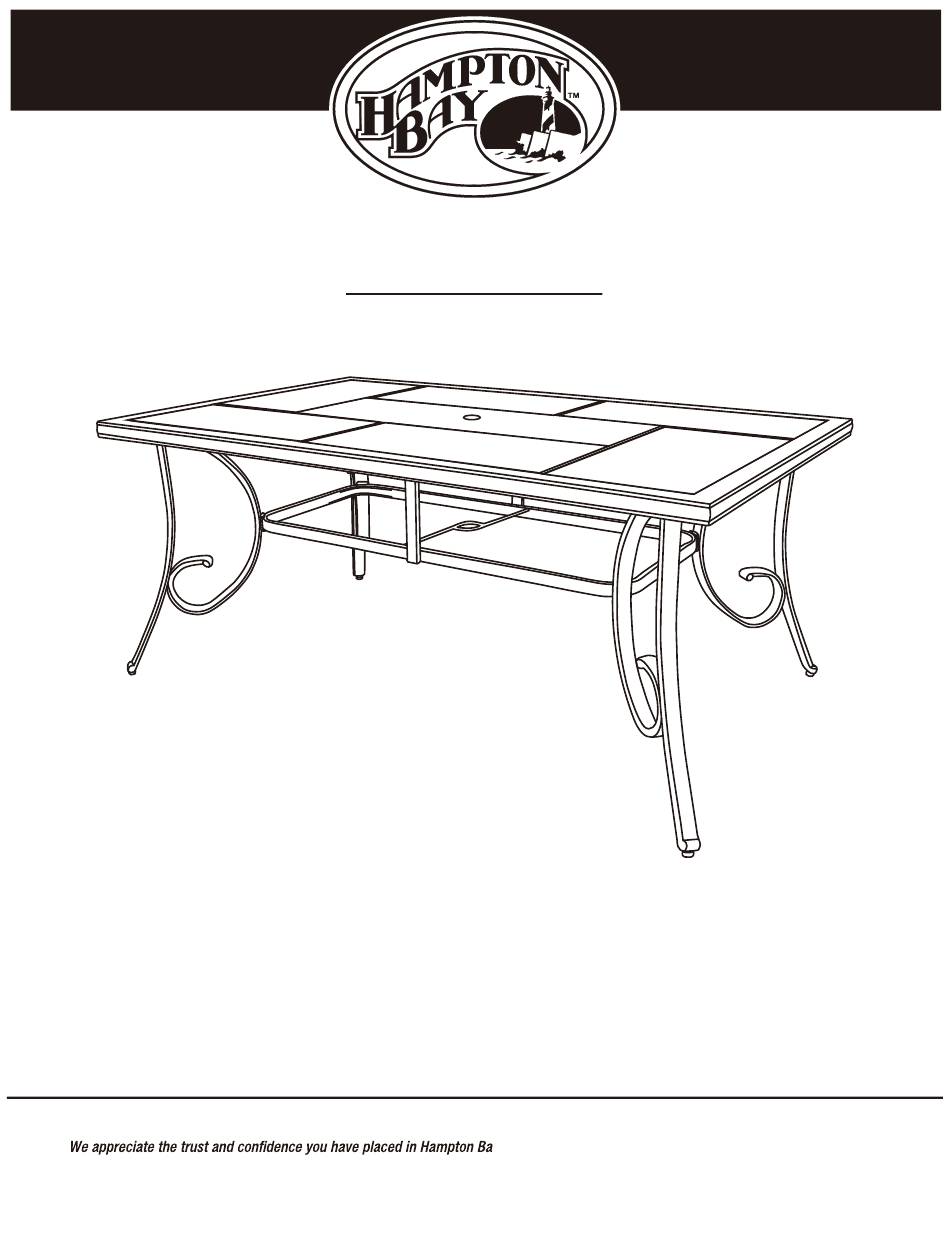

1003155146
Model TCS64PK
USE AND CARE GUIDE
Crestridge Tile Top Rectangular Dining Table
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
y through the purchase of this dining set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCS64PK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY TCS64PK

Summary of Contents for HAMPTON BAY TCS64PK

  • Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 2: Safety Warnings

    Table of Contents Table of Contents ............2 Table Assembly.............5 Safety Information ............2 Care and Cleaning............8 Product Caution ..............2 Safety Warnings ..............2 Warranty ................ 2 What is Covered ..............2 What is Not Covered ..............2 Pre-Assembly ..............

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...
  • Page 4 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table top Table leg Support Center connector with ring 600x300x10 Tile...
  • Page 5 Table Assembly Connecting the table legs and supports to the table top Place the table top (A) upside down on a soft surface. Attach the table legs (B) and supports (C) to the table top (A) using M6x16 bolts (AA) and d6.5xD13x1.0 washers (CC). NOTE: Loosely tighten all the bolts using the hex wrench (DD).
  • Page 6 Table Assembly (continued) Attaching the leg connector Attach the center connector with ring (D) to the table legs (B) using M6x16 bolts (AA) and d6.5xD13x1.0 washers (CC). NOTE: Loosely tighten all the bolts using the hex wrench (DD).
  • Page 7 Table Assembly (continued) Attaching the support connector Attach the center connector with ring (D) to the supports (C) using M6x25 bolts (BB) and d6.5xD13x1.0 washers (CC). Loosely tighten all of the the bolts using the hex wrench (DD). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 8: Care And Cleaning

    Table Assembly (continued) Tightening the bolts and placing the tiles Once all of the bolts are in place, fully tighten the bolts. Turn the table right side up. Then put the tiles (E) onto the table top (A) carefully. Ensure all connections are secure before use. Care and Cleaning For best results, clean the set with a damp cloth and dry thoroughly.
  • Page 9 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
