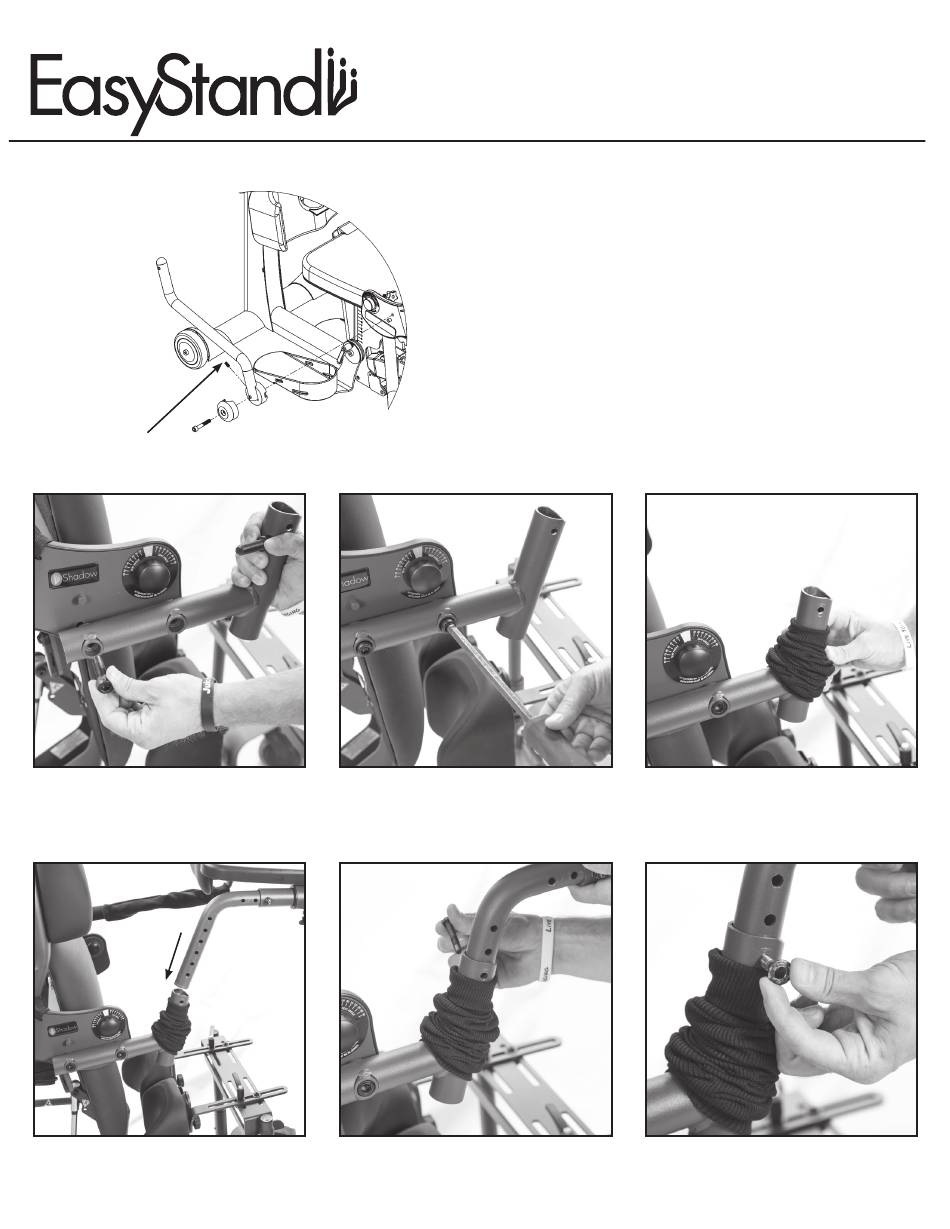

EasyStand Evolv Adjustable Shadow Tray Assembly

Required Tools:
-13mm open end wrench
-Hex Wrench
Set
Screw
2. Place the tray bracket on the unit
as shown. Insert one bolt and hand
tighten.
5. Insert tray tube into the tray bracket.
1. To install the support arm, first remove the nut and the washer from
the pre-assembled bolt on the arm, leaving the bolt and the two halves
of the fitting (one plastic and one metal) in place on the tube. Thread
the bolt into the hip plate. Once the bolt has been secured and the
support arm has the desired level of tension, install the nut and lock
washer on the bolt protruding through the opposite side of the hip
plate, closest to the user. Use either the small end of the wrench from
the supplied tool kit, or a 17mm socket wrench (preferred) to securely
tighten the nut.
A setscrew in the metal half of the support arm fitting may be used
to adjust the level of the tray once the installation is complete.
3. Insert second bolt and tighten both
bolts securely.
6. Insert bolt into desired hole.
Note: You may need assistance lining
up the hole from a partner.
Evolv Adjustable Shadow Tray
Customer Service
800.342.8968
4. Place the cloth protection sleeve on
the tray bracket as shown.
7. Place washer onto bolt.
Assembly
507.697.6393
