Chapter 1 Appearance

1.1

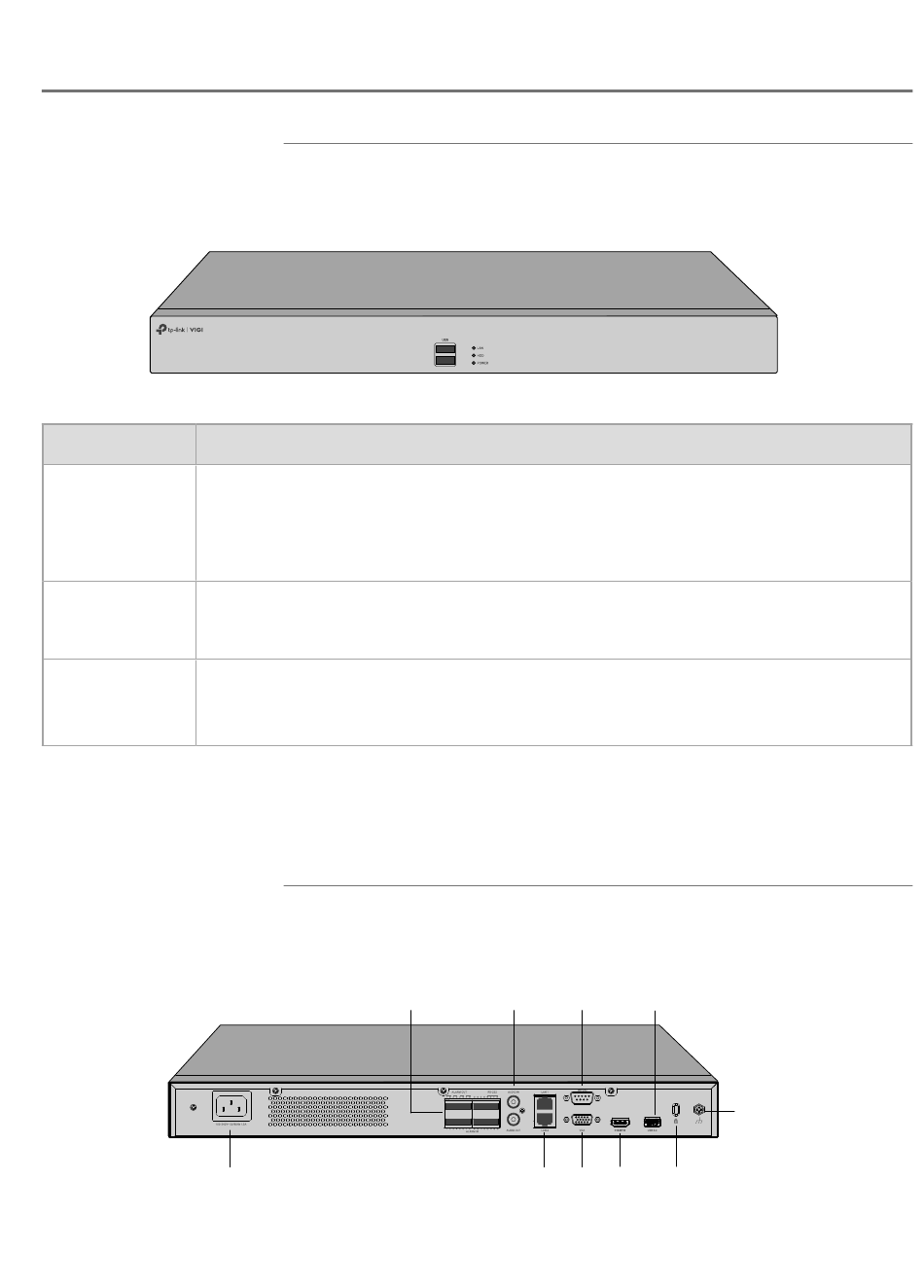

Front Panel

The figure is for demonstration purposes only. Your device may differ in
appearance from the depicted.
LED Indication
On: Network is working properly.
LAN Flashing: Data is being transmitted or received.
Off: Network is malfunctioning.
On: The HDD is normal.
HDD
Off: No HDD or the HDD is malfunctioning.
On: System is running normally.
POWER
Off: System is running abnormally.
USB Port
2 USB ports for additional devices such as USB mouse, USB storage
device, and USB keyboard.
1.2

Rear Panel

The figure is for demonstration purposes only. Your device may differ in
appearance from the depicted.
Power Socket
Alarm In/Out Audio In/Out
LAN Ports VGA
1
32 Channel Network Video Recorder
VIGI NVR4032H
RS-232 USB 3.0
Kensington
HDMI
Security Slot
Grounding
Terminal
