Chapter 3 Hardware Connection

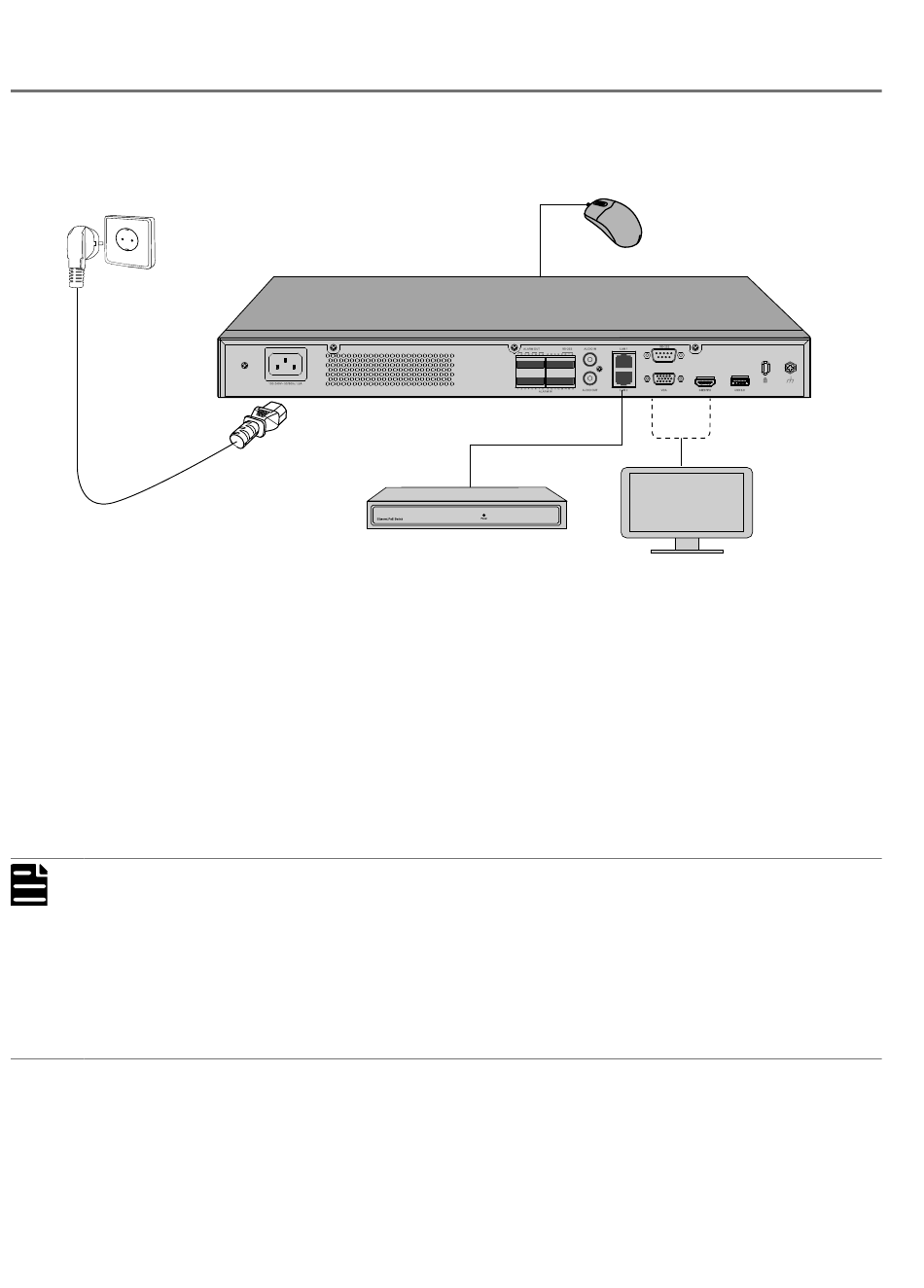

Follow the steps below to complete the hardware connection.
1. Connect your monitor to the HDMI or VGA port according to the
connection port it supports.
2. Connect your monitor to a power source and turn it on.
3. Connect the LAN port of the NVR to a network device with an Ethernet
cable.
4. Connect the provided USB Mouse to the USB Interface of the NVR.
Note:
If you want to turn off the NVR after installing the hard drive, right click on the
■
Live View screen and click the Power button on Main Menu of your monitor. Do
not unplug it directly.
The input voltage should match the power requirements of the NVR.
■
The buzzer on the NVR may be triggered when no hard drive is installed or
■
the hard drive in the NVR hasn't been initialized. You can turn it off in Event-
Exception Detection-Disk Exception.
Network Device
(e.g. Router, Switch)
11
Mouse
or
Monitor
