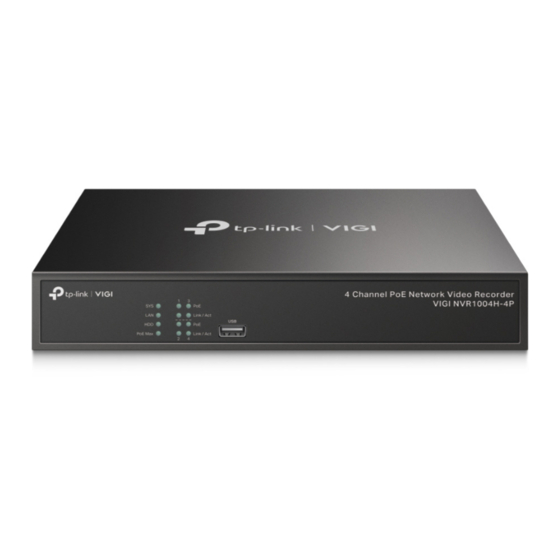

TP-Link VIGI NVR1004H-4P Quick Installation Manual

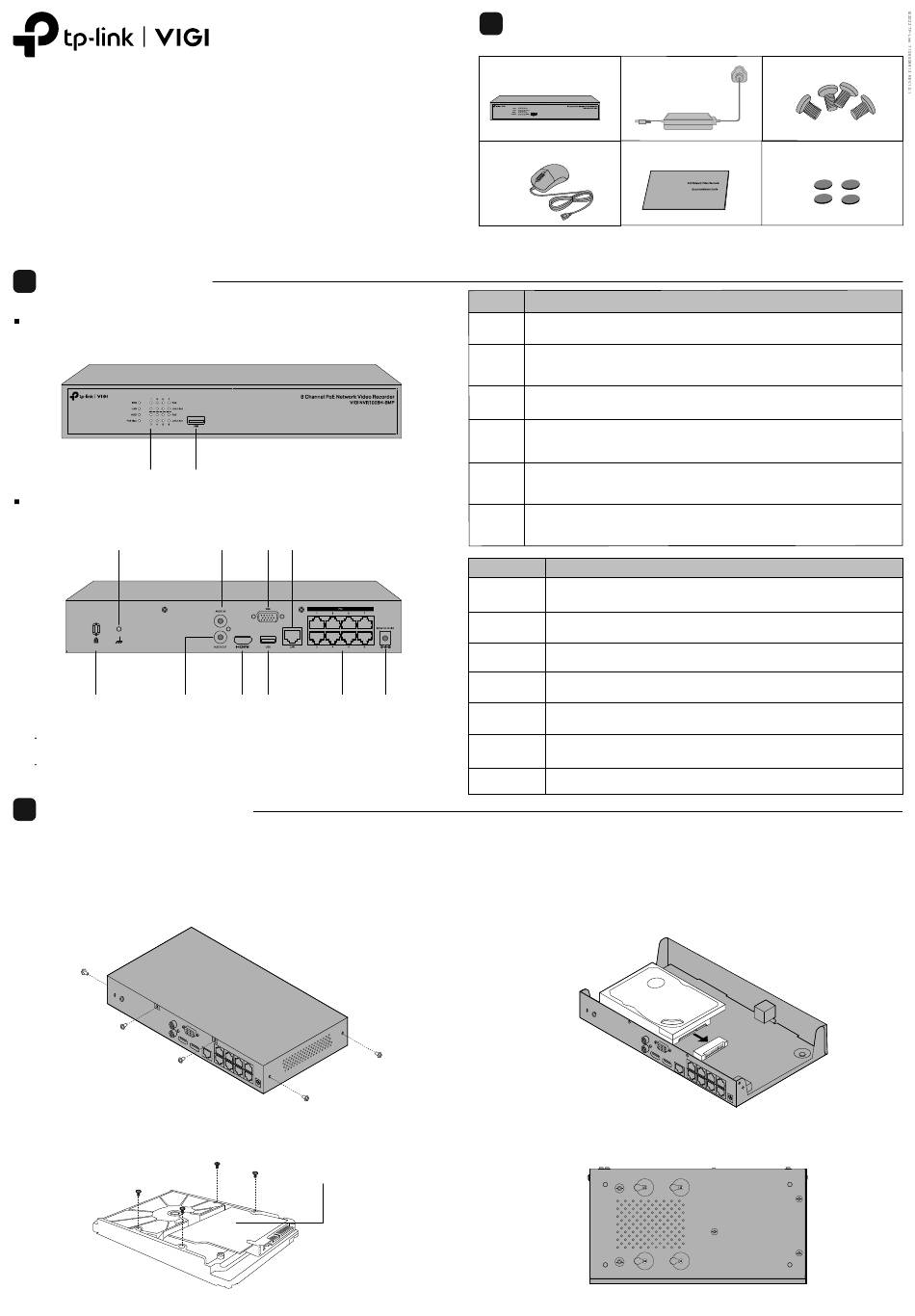

Quick Installation Guide
PoE Network Video Recorder
*Images may differ from actual products. VIGI NVR1008H-8MP is used for demonstration in this guide
2
Product Overview
Front Panel
LED USB Port
Back Panel
Grounding Terminal
Kensington
AUDIO OUT
Security Slot
Kensington Security Slot: Secure the lock (not provided) into the security slot to prevent the device
from being stolen.
Grounding Terminal: The device comes with lightning protection mechanism.
3
Hard Drive Installation
When installing for the first time, please prepare a 3.5-inch hard disk drive (HDD). It is recommended to use the HDD of surveillance or enter-
prise level. Before installation, please disconnect the power from the network video recorder (NVR).
1. Remove the fixing screws on the side and back panels to open the
cover of the NVR.
2. Attach the 4 included HDD screws to your hard drive. Do not fasten.
AUDIO IN VGA LAN Port
HDMI USB Port PoE Port POWER
Hard Disk Drive (HDD)
1
Package Contents
Network Video Recorder Power Adapter
Mouse
Quick Installation Guide
LED Indication
On: System is running normally.
SYS
Off: System is running abnormally.
On: Network is working properly.
LAN
Flashing:
Data is being transmitted or received
Off:
Network is malfunctioning.
On: The HDD is normal.
HDD
Off:
No HDD or the HDD is malfunctioning.
On: The total PoE power reaches the warning threshold.
PoE Max
Flashing: The total PoE power has reached the warning threshold for more than 2 minutes.
Off: The total PoE power does not reach the warning threshold.
On: The port is supplying power normally.
PoE
Flashing: Overload or short circuit is detected.
Off: Not providing PoE power on the port.
On: A device is linked to the port but no activity.
Link / Act
Flashing: Transmitting or receiving data.
Off: No device is linked to the corresponding port.
Interface Description
AUDIO IN /
Connector for audio input and output.
AUDIO OUT Note: Audio input only supports microphones with power supply.
Output port for high-definition audio and video signals. Connect
HDMI
your monitor to this port if it uses HDMI connection.
Output port for analog video signals.
VGA
Connect your monitor to this port if it uses VGA connection.
2 USB ports for additional devices such as USB mouse, USB storage device,
USB
and USB keyboard.
RJ45 10/100Mbps self-adaptive Ethernet port.
LAN
Connect to an Ethernet device (eg. router and switch).
Designed to connect to the device with a bandwidth of 100/10 Mbps. The port
PoE
can also provide power for PoE PDs (recommended for PoE cameras).
POWER Connector for power input.
3. Match the 4 screws on the HDD with the 4 holes on the NVR, and insert
the HDD interface into the slot.
4. Flip the NVR upside down and fasten the HDD screws. Replace the
cover and fasten the screws of the NVR.
HDD Screws
Rubber Feet (for some models)
.
