7. Apply the output channel configuration.
8. If needed set the proper pairing channels in PBTL mode.
9. Go to the Routing section and set the proper signal routng.

MATRIX

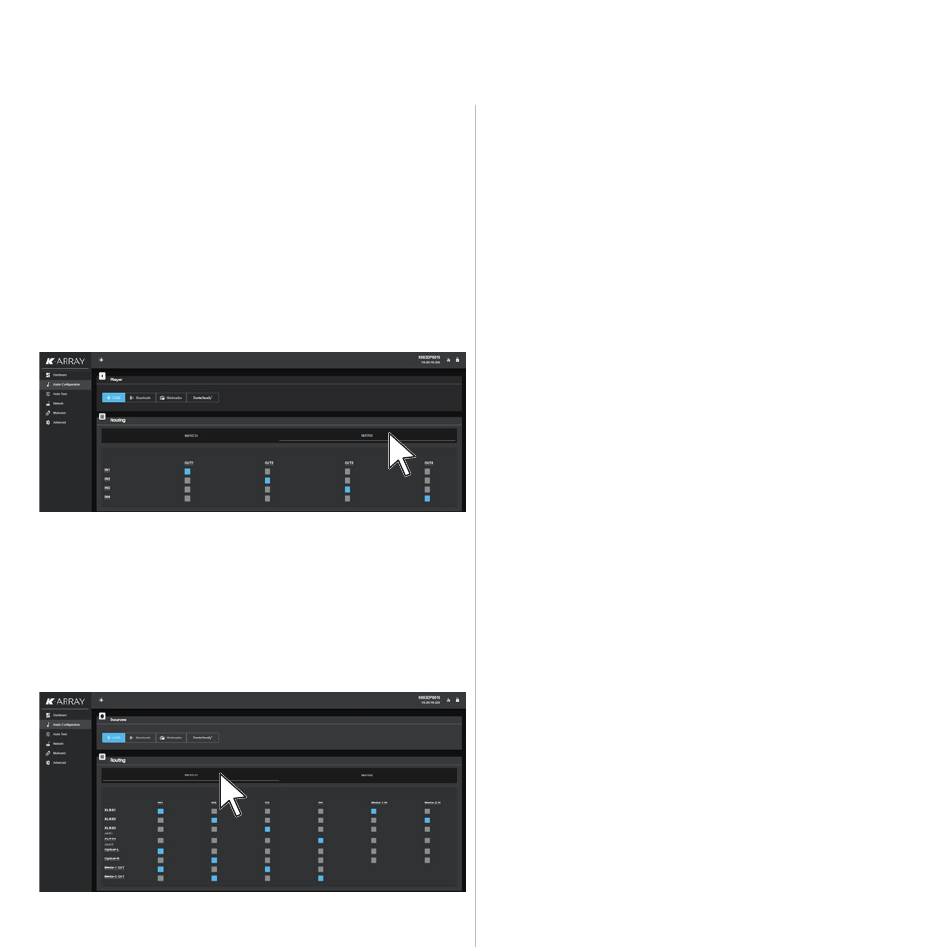

The matrix allows to set the signal routing path between the
amplifier's input channels and the amplifier's output connectors.
Blue boxes at the cross intersection between raws and columns
state an open path between sources (raw) and destinations
(columns).

INPATCH - 4-channel unit only

The input patch tab allows to address the input connections
and the input streamer (media player) to the four amplifier's
input channels.
The signal managed by the media player can be routed to the
amplifiers' input channels via the Media-1 OUT and Media-2 OUT.
