Printed Matter No. 9836 9756 01
Publication Date 2021-09-09
Valid from Serial No. A5400001
RRH10P TS
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
RRH 10P-TS
8426111070
WARNING

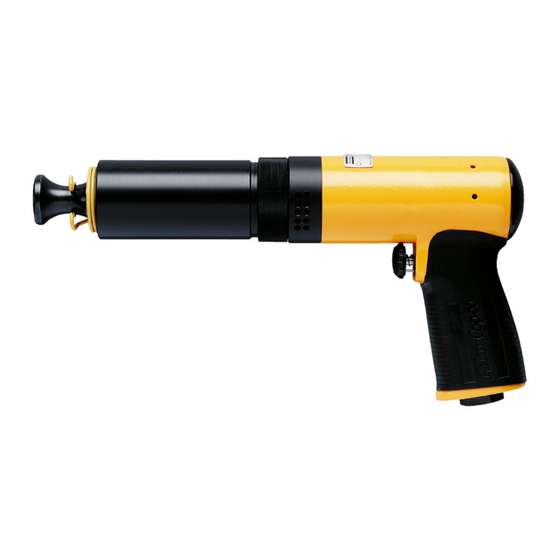

Riveting Hammer
Product Instructions
Advertisement
Table of Contents
Related Manuals for Atlas Copco RRH 10P-TS
Summary of Contents for Atlas Copco RRH 10P-TS
- Page 1 RRH 10P-TS Printed Matter No. 9836 9756 01 Riveting Hammer Publication Date 2021-09-09 Valid from Serial No. A5400001 Product Instructions RRH10P TS 8426111070 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Operating the tool .................. 6 Trigger control .................. 6 Service ........................ 7 Maintenance instructions .................. 7 Service recommendations .............. 7 Preventive maintenance ................ 7 Lubrication instructions .................. 7 Lubrication guide ................... 7 Lubrication ..................... 7 Recycling ......................... 8 Recycling instruction.................. 8 © Atlas Copco Industrial Technique AB - 9836 9756 01... -
Page 3: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 4: Website
ServAid is available on DVD and on the website: https://servaid.atlascopco.com For further information contact your Atlas Copco sales representative or e-mail us at: servaid.support@se.atlascopco.com Website Log in to Atlas Copco: www.atlascopco.com. -
Page 5: Installation
Air quality ■ For optimum performance and maximum product life we recommend the use of compressed air with a maximum dew point of +10°C (50°F). We also recommend to install an Atlas Copco refrigeration type air dryer. ■ Use a separate air filter which removes solid particles larger than 30 microns and more than 90% of liquid water. -
Page 6: Operation
The trigger valve is designed to allow different impact energies and impact frequencies. The impact en- ergy and frequency can be steplessly controlled by pushing the trigger to different positions. © Atlas Copco Industrial Technique AB - 9836 9756 01... -
Page 7: Service
1 cm³, can be dropped into the air hose. When the machine is in continuous ser- vice, installation of an Atlas Copco oil-fog lubricator is recommended. An excessive amount of oil will prevent the main valve from functioning. It is therefore vitally important to lubricate in strict accordance with the recommendations. -
Page 8: Recycling
When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle the components in accordance with local legislation. Batteries shall be taken care of by your national battery recovery organization. © Atlas Copco Industrial Technique AB - 9836 9756 01... - Page 12 Original instructions © Copyright 2021, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
