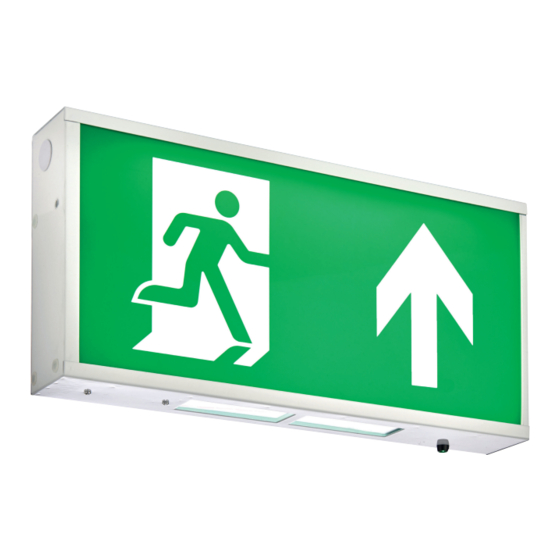

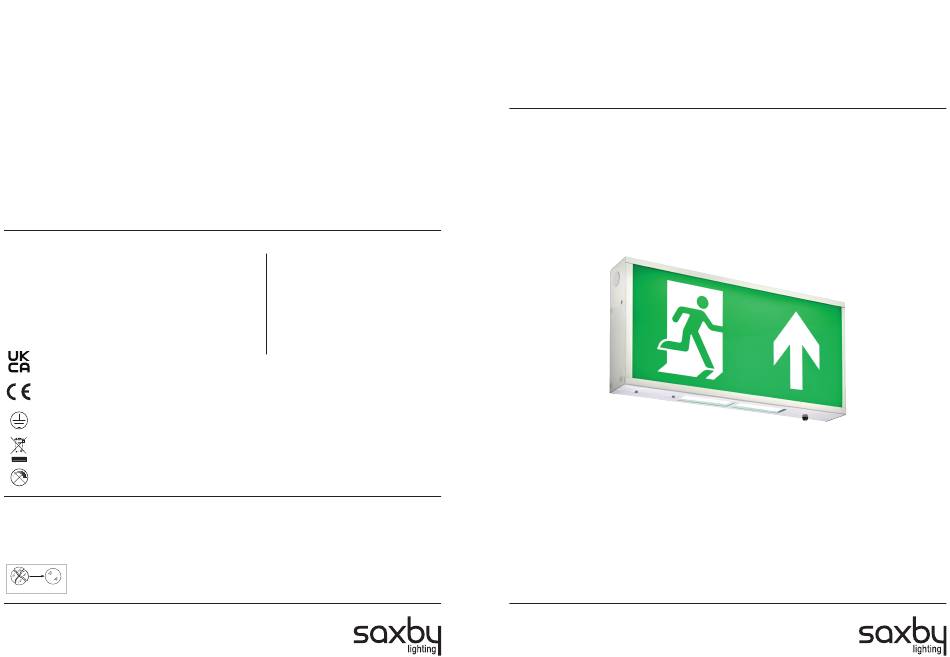

Saxby Lighting 73796 Instruction Manual

Battery Replacement
If after routine operation check, the lamp does not remain lit or the three hour period, a new battery pack may be required.
• Switch off the electricity at the mains, both switched and permanent supply.
• Allow batteries to fully discharge then reconnect to supply and allow to charge for 24 hours.
• Test again for 3 hours, if light does not remain lit change the battery pack as follows:
- Undo the two screws at the end of the unit, remove the end
plate, slide off the cover and set aside.
- Unplug the battery lead from the lead coming from the PCB.
Remove any cable ties around the cables.
- Lift the unit off the wall, and undo the two screws on the rear
holding the battery in place. Remove the battery pack. Waste
electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your
local authority or retailer for recycling advice.
- Replace the battery with a 3.6V 900mAh Ni-Cd only. Use
of a different type of battery will damage the product.
Technical data
Supply
220-240 V~, 50 Hz
Voltage:
Bulb
1.5W LED (SMD), 6500K
Type:
The light source of this luminaire is not replaceable; when the
light source reaches its end of life the whole luminaire shall
be replaced.
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
This is a Class 1 product and must be earthed.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
Care and Safety
Live Voltages may be present in this unit even when turned off or when completely disconnected.
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
This bulb is protected by a shade. This part must be replaced immediately should the shade become
cracked or damaged. This fitting must not be used without the shade in place.
Replace Cracked Shade
V4 21/03/2022
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
- Write current date on the new battery pack.
- Fit the new battery pack in position and re-secure using the
screws set aside earlier. Refit the cable ties in position and then
plug battery pack into the PCB.
- Refit the unit on the wall.
- Perform full operation check and update test record.
- Slide in the shade. Refit end panel and screws.
- Restore power and allow to charge for 24 hours.
Duration: 3 hours (180 minutes)
Operating Temperature: -5 ºC to 50 ºC
Maximum Operatin Humidity: 10-90%
Change over Time: Approximately 1s
Battery Specification: 3.6V 900mAh Ni-Cd
Battery Charge Time: 24 hours
Battery warranty: 2 years
Instruction manual
Slight Box
73796
