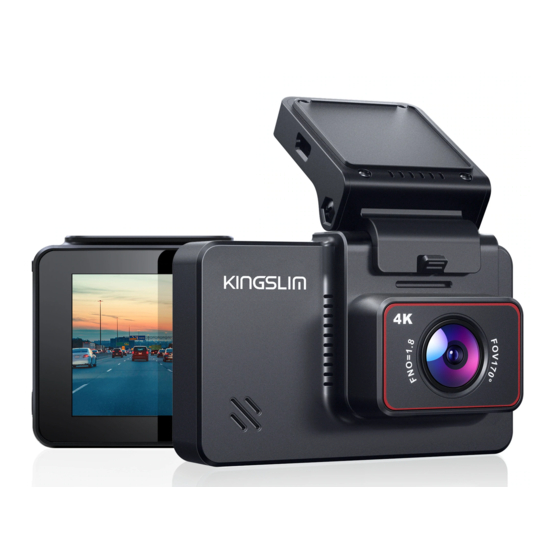

Summary of Contents for KingSlim D4

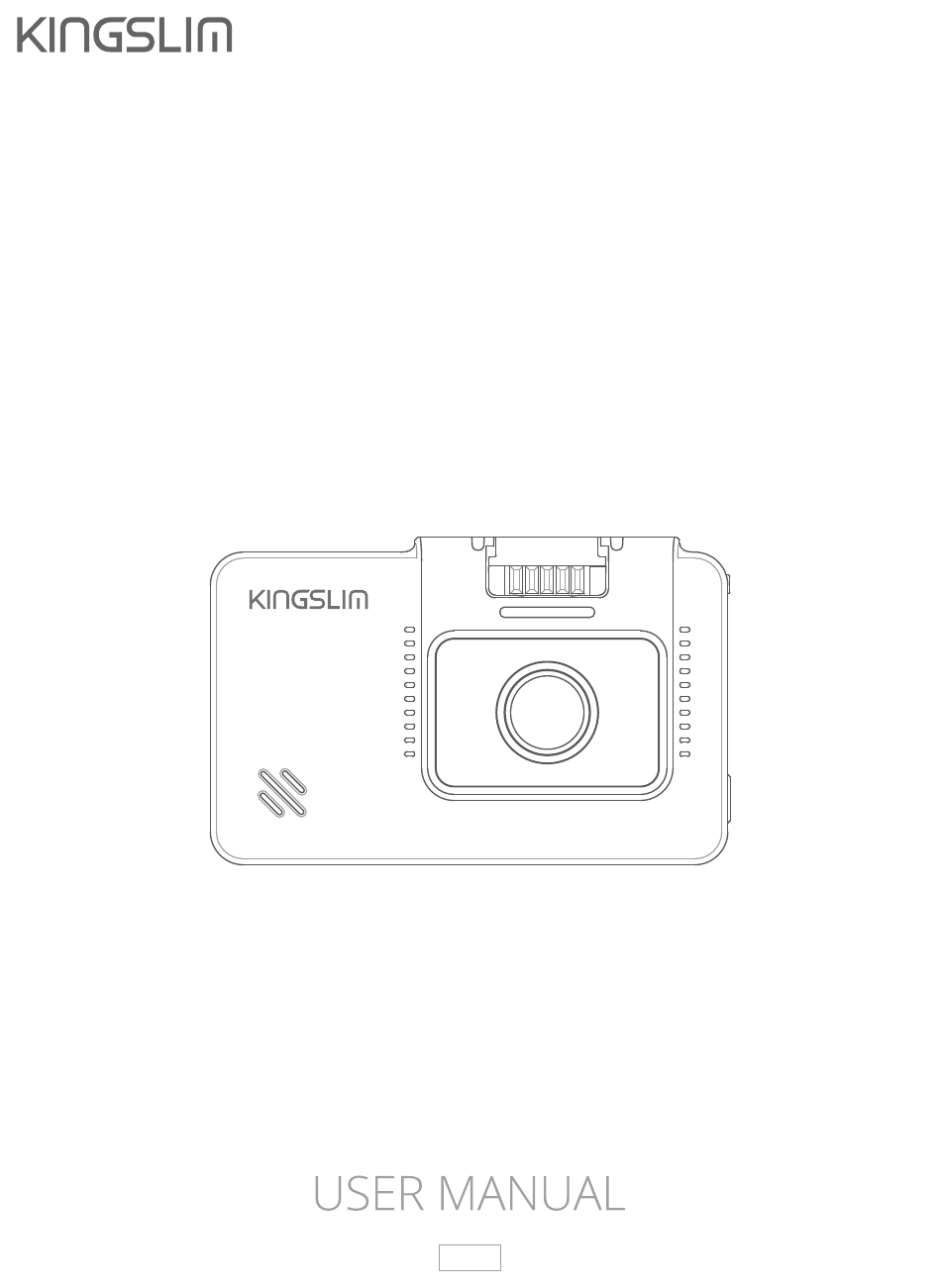

- Page 1 DASH CAM D4 V2.0...
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED 1. Memory card 2. First-time charging 3. Recording 4. Settings 5. Setting date & time 6. How to hide power cable inside your car’s dash board? 7. How to transfer videos to PC/MAC? 8. Wifi 9. Camera specifications 10. - Page 3 PLAYBACK 1. Dash cam playback 2. Kingslim app playback 3. Playback on PC/MAC SYSTEM SETTING 1. Resolution 2. Speed unit 3. Screen dormant 4. Light source frequency 5. Impact sensitivity 6. Parking mode 7. Date format 8. Audio recording 9. Volume 10.
- Page 4 User agreement By purchasing Kingslim dash cams, you agree to Kingslim's terms including pre-cautions, user warnings, and conditions of the warranty. If for any reason you do not agree to any of the terms mentioned in this manual, then you may return the product in its original packaging, and unused within its return window for a full refund.
-
Page 5: Getting Started
3. Recording KINGSLIM 4K D4 dash cam is programmed to turn on and start recording automatically when it receives the power. It will also automatically stop recording, save the last video safely and then shut down within 2 seconds when it's unplugged. -
Page 6: Setting Date & Time
(See Page 30 for details) 8. Wifi You can also connect the KINGSLIM D4 dash cam to your smartphone by using the built-in Wifi feature. After your phone is connected to the camera's Wifi, its 4G signal will be blocked, and it will automatically recover after disconnection. -
Page 7: Camera Specifications
9. Camera specifications Sensor Sony IMX335 LCD touch screen 3-inch IPS Video resolution 3840*2160 @30fps (front)*1080P (rear) 2560*1440p (front)+1080P (rear) Photo resolution Lens aperture F/1.8 Built-in GPS Wifi Built-in Video format Memory card Class 10 U3 or above, capacity up to 256GB G-sensor Built-in 3-axis acceleration G-sensor locks and protects the current video... -
Page 8: What's In The Box
10. What's in the box D4 Dual Dash Cam Dash Cam Bracket Double-Sided Adhesive Electrostatic Sticker × 1 × 1 Tape for Dash Cam × 2 × 2 Waterproof 7m Rear Camera Double-Sided Adhesive Car Charger with Rear Camera × 1 Extension Cable ×... -
Page 9: Camera Overview
11. Camera overview Bracket Slot Rear Camera IN Front Camera Please remove the front lens film before use. Speaker Mini USB Power Port Memory Card Slot Reset hole Working Indicator Power Button Press and hold: Power on/off Press: Turn off/wake up the screen ��... - Page 10 Vent Mini USB Power Port Screen ��...
-
Page 11: Installation
12. Installation 12.1 Memory card use A Samsung/Sandisk/Kingston Class 10 U3 or above memory card is highly recommended for the D4 dash cam. This dash cam supports a memory card of up to 256GB. Please format your card on your computer first and then in the camera before using it for better compatibility. - Page 12 ➂ Formatting the memory card Please format your memory card in the camera each time you insert it into your camera. a. Tap the“ Settings” icon to enter the Settings page. b. Select "Format SD", then tap the "Confirm" icon. Wait a few seconds to finish the formatting and the system will exit automatically.
- Page 13 12.3 Adjust the viewing angle. Warm tip: To remove the dash cam from the dash cam bracket, you can press the buckle firmly with your finger, and push the camera out at the same time. ��...
- Page 14 12.4 Install the dash cam on the windshield. (1) Take off one film on the double-sided adhesive tape for the dash cam, and apply it to the dash cam bracket. (2) Clean the windshield with a dry cloth, then remove the film of the electrostatic sticker and apply the sticker to the windshield.
- Page 15 (3) Peel off the other film on the adhesive tape, and secure the dash cam bracket on the electrostatic sticker. Notes: ➀ If you want to remove the dash cam, please take off the electrostatic sticker. ➁ You can stick the dash cam to the windshield without using the electrostatic sticker. ��...
-
Page 16: Charging
13. Charging 13.1 Connect the USB power cable to the Mini USB power port of the D4 dash cam, then plug the car charger into the cigarette lighter of your car. Car cigarette lighter socket Car cigarette lighter plug D4 Dash Cam Please do NOT connect the camera to the PC for charging. -
Page 17: Hardwire Kit (Sold Separately) Installation Guide
➀ We strongly suggest the professional installation of the hardwire kit. If you attempt to install it by yourself, KINGSLIM will not take the responsibility or liability for any product and vehicle damage or personal injuries due to improper operation during the process. - Page 18 ➁ Open the cover of fuse box and find a constant fuse slot. Remove the original fuse in the constant fuse slot and install it into the bottom slots of the fuse tap. ➁ Connect the fuse tap to the positive terminal of your constant fuse slot. ➂...
- Page 19 ➃ Crimp the black wire and screw it down to any non-coated metal bolt/screw in your vehicle to ground it. ➄ Connect the USB connector of the hardwire kit to the USB input of your dash camera. 14.2 Low voltage protection When the voltage detected by the hardwire kit is lower than 11.6V/23.5 (it varies depending on your vehicle), the hardwire kit will automatically cut off...
-
Page 20: Install The Rear Camera
15. Install rear camera Position 1: Install the rear camera on the rear windshield. The installation is easier when using this method. The power cables are routed as follows: Position 2: It is recommended to install the rear camera near the license plate. In this way, the image is crisp and clear for both rear viewing and reversing guide. - Page 21 To use the reversing function, please install the rear camera near the license plate, then connect the red wire of the rear camera extension cable to the positive lead of the vehicle reversing lamp. Rear camera connector Rear camera Reversing light positive pole Reversing light Note: ➀...
-
Page 22: Start Recording
START RECORDING 1. Main interface 4 5 6 00:00:34 2023-03-27 13:47 Recording indicator Power status Video time Settings Date / Time Album Emergency recording Microphone indicator Audio recording (Mute / Unmute) Wifi indicator Stop / Start recording ��... -
Page 23: Gestures
2. Gestures 2.1 Taking a photo In the video recording mode, slide from left to right to take photos. 00:00:34 2023-03-27 13:47 2.2 Switching recording display modes Tap the right side of the screen to quickly switch the recording display modes from either the full-screen display of the front/rear camera or the picture-in-picture display of both cameras. -
Page 24: Status Icons
�. Status icons Interface Status Recording on Recording status Recording time Recording time 00:00:34 Date/Time Date/Time 2023-04-27 GPS locate Locate successfully GPS not located Signal searching Microphone indicator on Microphone on Microphone indicator off Microphone off Wifi on Wifi interface Wifi... -
Page 25: Led Status Indicators
4. LED status indicators Charging indicator: Purple-red light flickering alternately: Recording video + battery not fully charged Purple light staying on: Not recording + battery not fully charged Working indicator: Blue light staying on: Not recording + battery fully charged Blue light flickering: Recording video+ battery fully charged + Parking mode on ��... -
Page 26: Time Zone Setting
5. Time zone setting Choose the time zone manually. The device will then display the time of the selected time zone. (Default Setting: UTC/GMT-OFF) Settings Settings Set Time UTC/GMT-OFF TimeZone Setting UTC/GMT-OFF UTC/GMT-12 Language English UTC/GMT-11 Greenwich Mean Time (GMT) Time zone When Daylight Savings Ends Nov- When Daylight Savings Begins... -
Page 27: Playback
”to enter the album to be played back. 00:00:34 2023-03-17 13:47 Album Front Normal Album Front Urgent Album Front Photo Back Normal Album Back Urgent Album Back Photo 2. KINGSLIM APP playback 2.1 APP download Download the Kingslim APP on the APP Store or Google Play. ��... - Page 28 2.2 Connect to the Kingslim APP. ➀ Stop video recording on the dash cam. 00:00:34 2023-0-27 13:47 ➁ After pausing video recording, tap the Wifi icon on your dash cam to turn on Wifi. The camera will enter Wifi mode and display the Wifi information in about 2 seconds. (Note: The Wifi will disconnect automatically once you exit the Wifi...
- Page 29 ➂ Go to your smartphone’s Wifi settings, search for the same Wifi SSID name displayed on the screen, and enter the password 12345678 for connection. Kingslim_ **** ➃ Open the Kingslim APP, tap the “New Account” icon, enter your email and get the verification code for login. ��...
- Page 30 2.3 APP playback ➀ Connect your dash cam to the phone Kingslim APP. ➁ Add your dash cam to the Kingslim APP by tapping '+'. ➂ Enter the preview interface, tap the Video set icon to enter the video menu.
- Page 31 2.4 Using Kingslim APP to download videos to your smartphone ➀ Tap the “Video set” icon to enter the video menu. Kingslim_ **** ➁ Tap the “Select” icon in the upper right corner, and choose the video you want to download.
- Page 32 ➂ Tap the Download icon at the bottom left corner to download the video. ➃ Waiting for the completion of download progress, the video will be downloaded to phone photo album. tap the video to play back or forward. ��...
-
Page 33: Playback On Pc/Mac
3. Playback on PC/MAC 3.1 Data transmission ➀ Connect the dash cam using a short USB data cable (sold separately) and choose to connect as "USB Storage" when the message (see below) pops up. Your PC or MAC will then recognize the memory card. - Page 34 You can also use the GPS Player to view the google map. You can download it for free from https://kingslim.net/pages/app-gps-download. You can also find it in the memory card drive after your card is recognized by your PC or MAC.
-
Page 35: System Setting
SYSTEM SETTING Tap the Settings icon in the bottom right corner to enter the system settings screen. 00:00:34 2023-03-27 13:47 Settings Resolution 4KP30 Speed Unit KM/H ScreenDormant Off 1. Resolution Menu Resolution 4KP30 The resolution of the front camera can be 4KP30 or 2KP30. The default resolution is 4KP30. The resolution of the rear camera is not optional, with a default resolution of 1080P. -
Page 36: Light Source Frequency
4. Light source frequency Menu Antiflicker Mode 60Hz Choose the right frequency to reduce screen flickering. Options: 60 Hz / 50 Hz Default setting: 60Hz 5. Impact sensitivity Menu Collision sensitivity When Impact sensitivity is enabled in video recording mode, if an impact or sudden braking is detected, the camera will automatically start recording an emergency video and save the content. -
Page 37: Date Format
7. Date format Menu Date format YY-MM-DD Set the format you prefer. Options: YY-MM-DD, DD-MM-YY, MM-DD-YY Default setting: YY-MM-DD 8. Audio recording Menu Audio Record sound and video at the same time. Option: On / Off Default setting: On 9. Volume Menu Volume Middle... -
Page 38: Time Setting
11. Time setting Menu Time setting Manually set the date and time. Note: If you need to set the date and time manually, please turn off the time zone setting. Time Setting 2023 Cancel Confirm For example: Confirm tap “ ”... -
Page 39: Format Memory Card
14. Format the memory card Menu Format SD ① All data will be deleted after formatting. Before formatting the memory card, please back up the data on another device. ② When inserting the memory card for the first time, please format the memory card in the dash cam first to ensure that the memory card is compatible with the dash cam. -
Page 40: General Faq
➂ If the camera still does not hold a charge with the USB cable, kindly contact customer service for further help. 4. What to do if the KINGSLIM APP can't connect to your dash cam? ➀ Make sure you have installed the up-to-date Kingslim APP on your phone. - Page 41 5. What to do if the camera Wifi is not connected? ➀ Check if your dash cam enters Wifi mode and displays the Wifi information after you tapped the Wifi icon. Warm tip: Do not exit the Wifi screen, otherwise, the camera Wifi will be disconnected. ➁...
-
Page 42: Contact Us
In the unlikely event that we can’t help, we’re always happy to provide a full, and hassle-free refund under the warranty. We sincerely hope our customers are happy and proud to use KINGSLIM dash camera! There is no perfect product, however, we will do our best. For more details, please contact us by email.
