- Page 1 USER MANUAL KINGSLIM D1 Dual Dash Cam v1.0...
-
Page 2: Table Of Contents
CONTENTS What’s in the Box Camera Overview Product Operation Installation Formatting the microSD Card Recording Icon Introduction Setup Menu Download the GPS Player Troubleshooting Caution Contact Us... -
Page 3: What's In The Box

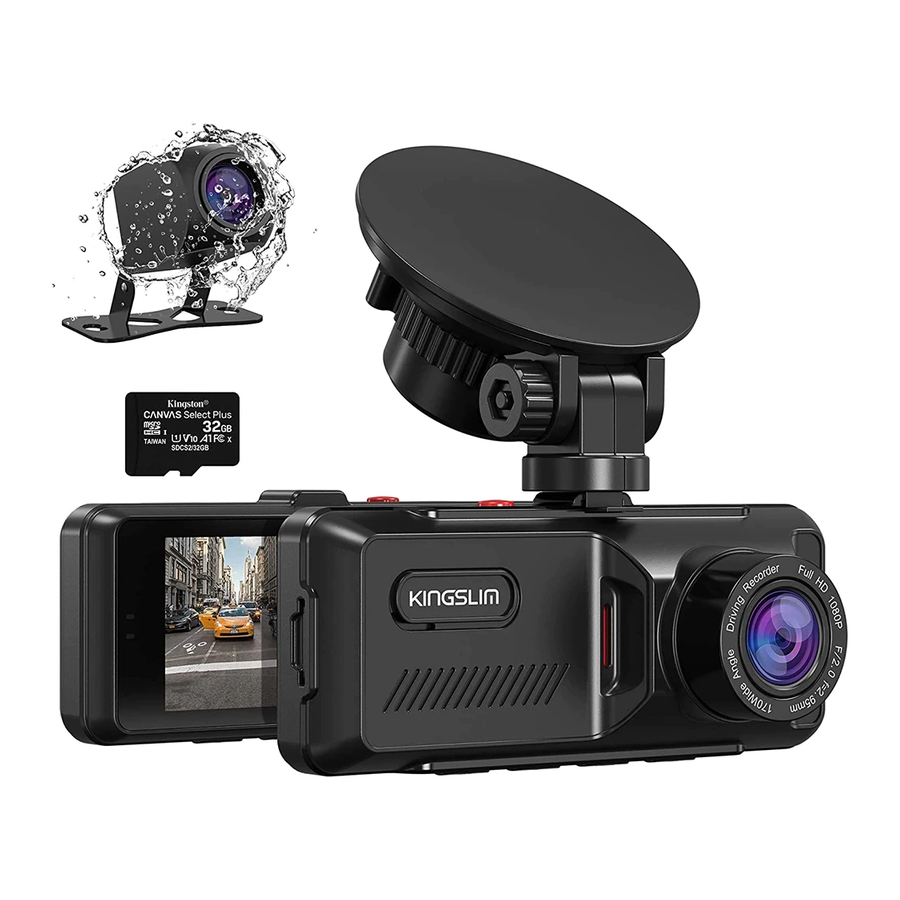

WHAT'S IN THE BOX Waterproof D1 Dual Dash Cam * 1 Bracket * 1 Rear Camera * 1 23ft Rear Camera Car Charger with 32GB microSD Card * 1 Extension Cable * 1 External GPS * 1 Double-Sided Adhesive Tape... -
Page 4: Camera Overview
CAMERA OVERVIEW Bracket Slot Rear Camera In Mini USB Power Port Power Button microSD Card Slot Lens Working Indicator Screen... -
Page 5: Product Operation
Up Button Down Button Reset Microphone OK Button Menu Button PRODUCT OPERATION 1. Power Button Function 1: Press to wake up/turn off the screen. Function 2: Long press to turn the camera on/off. 2. Menu Button Function 1: Long press to enter the set-up menu. Function 2: Press to switch the shooting mode/playback mode/recording mode. -
Page 6: Installation
4. Up Button Function 1: In the set-up menu, press the up button to view the setting options. Function 2: In the recording mode, press the up button to view the display modes. Function 3: After pause recording, long press the up button to display the GPS information. - Page 7 2. Insert the bracket into the bracket slot. 3. Install the dash cam on the windshield. First, clean the windshield with a dry cloth. Second, take the film off the suction cup and press the suction cup onto the windshield to make sure there is no air inside the suction cup, and then rotate to secure the bracket.
- Page 8 5. Connect the USB power cable into the USB power port of the dash cam, then plug the car charger into the cigarette lighter socket. Cable clip A-Pillar A-Pillar 6. Connect the rear camera to the dash cam with the extension cable to check that the rear camera works well.
- Page 9 Position 2: Install the rear camera near the license plate. Position 2 is highly recommended. The rear image is crisp and clear for both rear viewing and as a back-up camera. Note: ① Pay attention to the connector position when connecting the rear camera with the extension cable;...
-
Page 10: Formatting The Microsd Card
FORMATTING THE MICROSD CARD Use a high-speed microSD card of Class10 or higher. Format your microSD card in the camera before putting it into the dash cam. 1. Long press the menu button to access the set-up menu. 2. Press the down button to view "format", then press the OK button. 3. -
Page 11: Setup Menu
SETUP MENU • Long press the menu button to enter the dash camera set-up menu. • Press the up/down button to view the setting options. Select a setting option by using the OK button. • Press the menu button again to exit the set-up menu. 1. - Page 12 6. Date/Time Set the date and time manually. 7. Date Stamp Turn on the date stamp; recorded videos will show the time stamp. Options: On and Off Default Setting: On 8. Language Settings Options: English/繁體中文/简体中文/日本語/Français/Deutsch/Polskie/ไทย/ Tiếng Việt/русский/Español/Italiana Default Setting: English 9.
- Page 13 12. Speed Unit You can set the speed unit that you prefer. Options: KM/H and MP/H Default Setting: KM/H 13. Motion Detection In standby mode, it will automatically start recording when motion is detected. Options: On and Off Default Setting: Off 14.
-
Page 14: Download The Gps Player
Use this to check the version of the dash camera. DOWNLOAD THE GPS PLAYER Download the GPS player: www.kingslim.net/player TROUBLESHOOTING 1. The dash cam is not recording. • Check whether your microSD card has enough space. Back up any important data to another device first, and then format the microSD card. -
Page 15: Caution
3. Avoid leaving the device in direct sunlight for extended periods of time. 4. Do not remove or expose the internal battery. CONTACT US For any inquiries with KingSlim products, please feel free to contact us, we will respond within 24 hours. Email: cs@kingslim.net Tel: 888-811-1140 (US) Mon-Fri (except holidays) 9am-5pm (EST) Official website: www.kingslim.net...
