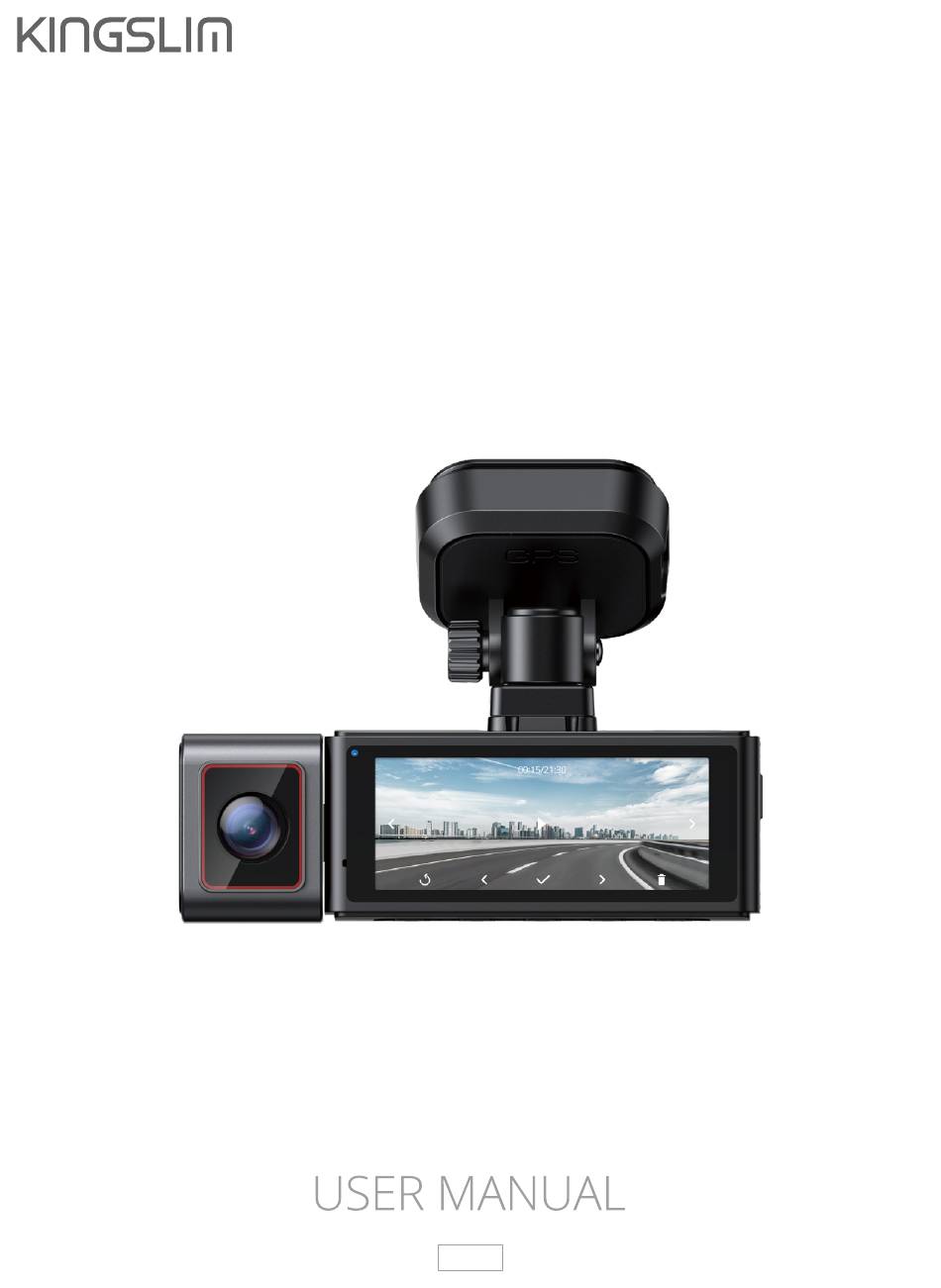

- Page 1 D4 PRO D A S H C A M V1.0...
-
Page 2: Table Of Contents
Contents User Agreement ------------------------------------------------------------------------------- 03 Precautions-------------------------------------------------------------------------------------- 03 Warnings ----------------------------------------------------------------------------------------- 04 Overheated Camera ------------------------------------------------------------------------- 05 1. First Use --------------------------------------------------------------------------------------- 06 (1) Insert memory card------------------------------------------------------------------------ 06 (2) First-time charging ------------------------------------------------------------------------- 06 (3) Recording ------------------------------------------------------------------------------------- 06 (4) Settings ---------------------------------------------------------------------------------------- 07 (5) Setting time zone --------------------------------------------------------------------------- 07 (6) How to hide power cable inside your car’s dash board? ----------------------- 07 (7) How to transfer videos to PC/MAC?--------------------------------------------------- 07 (8) Wifi... - Page 3 8.4 Playback on Your Phone’s album ----------------------------------------------------- 29 9. About the Kingslim APP ----------------------------------------------------------------- 30 9.1 Download the Kingslim APP ------------------------------------------------------------ 30 9.2 Connect to the Kingslim APP ----------------------------------------------------------- 30 9.3 Use the Kingslim APP --------------------------------------------------------------------- 33 9.4 Playback Videos on the Kingslim APP------------------------------------------------ 34 9.5 Download Videos from the Kingslim APP------------------------------------------- 35...
-
Page 4: User Agreement
User Agreement By purchasing Kingslim dash cams, you agree to Kingslim's terms and conditions, which include precautions, user warnings, and warranty coverage. If you do not agree to any of these terms mentioned in this manual for any reason, you may return the product unused and in its original packaging within the stated return window for a full refund. -
Page 5: Warnings
Warnings 1. Please take note of safety warnings and regulations as failure to comply may result in serious injury or death. 2. Avoid placing the camera on top of the instrument panel or in front of the airbag as it may fall and cause harm. 3. -
Page 6: Overheated Camera
Overheated Camera Dash cams are electronic devices that contain various components, including a processor, memory, camera lens, and other circuitry. When it's in use, it generates heat due to the power consumption and operation of these components. The heat generated during operation can cause the camera to heat up. Rest assured that our dash cams are equipped with radiators and vents to dissipate heat, and they operate within a temperature range of of -4°F (-20°C) to 149°F (65°C). -
Page 7: First Use
1. First Use Please read and understand warnings & safety instructions before operating. (1) Insert memory card To record videos, you need to insert a memory card, and complete the formatting process. We recommend you use a Class 10 U3 or higher memory card of well-known brands at a maximum of 256GB. -
Page 8: Recording
(4) Recording KINGSLIM 4K D4Pro dash cam is programmed to turn on and start recording automatically when it receives power. It will also start recording after you finish changing settings. To pause recording, simply press the button . When unplugged, this dash cam will also automatically stop recording, safely save the last video, and shut down within 5 seconds. -
Page 9: Wifi
(8) Wifi To connect the KINGSLIM D4 Pro dash cam to your smartphone, you can utilize its built-in Wifi feature. Please note that once your phone connects to the camera's Wifi, its 4G signal will be temporarily blocked but will automatically restore after disconnection. -
Page 10: Camera Specifications
2. Camera specifications Parameters Descriptions Model D4 Pro Sensor Sony IMX335 LCD touch screen 2.86-inch LCD Video resolution 4K+2K, 2K+2K Photo resolution Lens aperture F/1.8 External GPS module Key*6 1*Power Key 1*Reset Key 4*Function Key Wifi Built-in Video format Memory card... -
Page 11: What's In The Box
3. What's in the Box 3M Adhesive Tape for Bracket Electrostatic Sticker D4 Pro Dash Cam Dash Cam × 2 × 1 × 1 × 2 Rear Camera 7m Rear Camera Car Charger with Cable Clip × 1 Extension Cable × 1 Power Cable ×... -
Page 12: Camera Overview

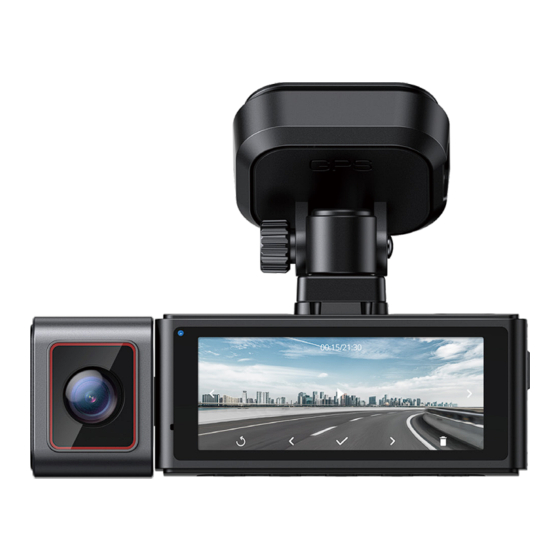

4. Camera Overview Bracket Slot Rear Camera IN Front Camera Speaker Screen Reset Memory Card Slot USB Type-C Power Port Microphone Power Button ��... -
Page 13: Getting Started
To record videos, you need a compatible memory card (sold separately). We recommend you use a Samsung/Sandisk/Kingston Class 10 U3 or high memory card for your D4 Pro dash cam. This dash cam supports a memory card of up to 256GB. - Page 14 (3) Format the memory card Format the memory card on the computer We recommend you format your memory card on a computer first for better compatibility. The following instructions are for your reference only. Format the memory card in the camera Before recording videos, please format the memory card in the camera by accessing the Setup screen.
-
Page 15: Install The Dash Cam On The Windshield
Settings prompt Format SD Format the memory card now? GPS Info ➂ On the formatting screen, press the OK button again to confirm the formatting process. prompt prompt Formatting... Format complete ➃ The system will then exit automatically. Kind reminder: All data will be deleted after formatting. - Page 16 (2) Prepare the area First, clean the area thoroughly with a microfiber cloth to remove any dust, dirt, or oil that could affect the bracket's grip. Then, remove the film of the electrostatic sticker and apply the electrostatic sticker to the windshield. (3) Place the dash cam First, tear off...
- Page 17 2) You can install the dash cam on the windshield without using the electrostatic sticker. This allows you to effortlessly remove the camera by simply pushing the GPS buckle towards left. 3) If you prefer not to use the electrostatic sticker, it is important to clean and dry the installation area thoroughly before attaching the dash cam directly to the windshield using the bracket sticker.
-
Page 18: Charge
Please utilize the 110V wall outlet instead. (2) Turn your camera ON/OFF Auto Power ON: KINGSLIM D4 Pro dash cam is designed to turn ON automatically when it receives power, i.e. when the car engine is started. Auto Power OFF: The camera is also pre-configured to turn OFF automatically within a few seconds... -
Page 19: Install The Rear Camera
5.4 Install the Rear Camera There are two recommended installation positions for the rear camera. Position 1: Installing the rear camera on the rear windshield offers a simpler installation process. For this method, please follow these steps to route the power cables: Position 2: It is advised to install the rear camera near the license plate. - Page 20 To enable the reversing function, please install the rear camera near the license plate and connect the red wire of the rear camera extension cable to the positive lead of the vehicle's reversing lamp. Rear camera connector Rear camera Reversing light positive pole Reversing light Note: ➀...
-
Page 21: Install The Hardwire Kit (Sold Separately)
5.5 Install the Hardwire Kit (sold separately) This camera comes with a built-in battery designed specifically for parking mode. To activate parking mode, it is necessary to leave the dash cam plugged in. However, this can result in battery drain. For this reason, we highly recommend installing a hardwire kit for your dash cam. -
Page 22: Introduction Of Important Feature
Kingslim did it! 1) With two years’ efforts in R & D, Kingslim’s developers have successfully designed the front camera to rotate up to 220°, allowing it to temporarily function as a cabin camera. -
Page 23: Start Recording
7. Starting Recording 7.1 Recording Screen 4 5 6 00:00:00 2023-11-11 00:00 Recording Indicator Power Status Recording Time Stop Recording Date & Time Emergency Recording GPS Icon Snapshot Audio Recording Switch between front and inside views Wifi Icon Switch display modes ��... -
Page 24: Gestures
7.2 Gestures (1) Take a photo During video recording, press the Photo button to snap a photo. 00:00:00 2023-11-11 00:00 (2) Switch display modes. During video recording, press the button to seamlessly transition between the full-screen view of either the front or rear camera, and the picture-in-picture display showing both cameras simultaneously. -
Page 25: Status Icons
Additionally, you can also press the button to flip between the front and inside views of the front camera during video recording 00:00:03 2023-11-11 00:00 00:00:00 2023-11-11 00:00 4K+2K 4K+2K Front View Inside View 7.3 Status Icons Icons Descriptions Interface Recording on Recording Recording time... -
Page 26: Led Indicators
Icons Descriptions Interface Switch display modes Recording Snapshot Recording Emergency recording Recording 7.4 LED Indicators Charging indicator: Purple and red lights flickering alternately: Charging + Recording video Purple light staying on: Charging + not recording Working indicator: Blue light staying on: Not recording + battery fully charged Blue light flickering: Recording video+ battery fully charged + parking monitor activated 7.5 Time Zone Setting... -
Page 27: Playback
8. Playback 8.1 Playback on the Dash Cam To playback your videos on the dash cam, first make sure the dash cam is on the preview interface, then press the button under the Album icon to access the playback screen. From there, you can choose to playback normal and emergency videos recorded by the front or rear cameras respectively. - Page 28 files to the player. By playing back videos on the GPS player, you can check the GPS information including speed, longitude, latitude, and driving route. ➀ You can also visit this link to download the GPS player to a computer: https://kingslim.net/pages/app-gps-download. ➁ Now the player is downloaded to the computer. ��...
- Page 29 ➂ Open the GX Player, then drag the GPS video to the file list for playback. ➃ During playback, you can check the driving route on Google Map, and check speed, longitude, and latitude at the bottom. Tips: ➀ The Google map helps you track the driving route, and it displays the default address.
-
Page 30: Playback On The Kingslim App
8.3 Playback on the Kingslim APP You can also playback videos on the Kingslim APP after connecting your dash cam to the app. For more details, please refer to About the Kingslim APP→Playback videos on the Kingslim APP. 8.4 Playback on Your Phone’s Album You can also playback videos on your phone’s photo album after downloading... -
Page 31: About The Kingslim App
9. About the Kingslim APP Once you have successfully connected your dash cam to the Kingslim APP via the camera’s Wifi, you will be able to access the camera, view and download videos via the app. You can also control the camera to capture or change the camera. - Page 32 “Weak Security” notice since the 4G signal of your phone is blocked, but you can ignore it and continue the app connection. (4) Access the Kingslim APP. To do this, open the Kingslim APP, then tap on the “New Account” icon to enter your email and get a verification code for login.
- Page 33 (5) Connect to the Kingslim APP. To do this, tap "Add Recorder" to add your Camera model, then wait for a few seconds till the app loads past the Connecting screen to enter the Preview interface. (6) Now your dash cam is successfully connected to the Kingslim APP.
-
Page 34: Use The Kingslim App
(2) Change the camera settings on the APP. To change the camera settings on the Kingslim APP, please tap the Settings icon in the upper right corner to enter the settings screen. By using the phone app, you can change the loop recording time, change the settings of G-Sensor, or Parking mode, and more. -
Page 35: Playback Videos On The Kingslim App
(1) Tap on the “Video set” icon to view all the video files stored on the memory card. Kingslim_D4Pro_ **** (2) Tap on the video you want to watch for playback. Note: The Kingslim APP works with KINGSLIM dash cams only. ��... -
Page 36: Download Videos From The Kingslim App
9.5 Download Videos from the Kingslim APP (1) Tap on the “Video set” icon to view all the video files stored on the memory card. Kingslim_D4Pro_ **** (2) Tap on the icon in the upper right corner, and select the video you want to download. - Page 37 (3) Tap on the Download icon in the bottom left corner, then tap “OK” to confirm the download. (4) Wait for the completion of the download progress, the video will be saved to your phone's album. You can tap on it for playback or forward it to social media. ��...
-
Page 38: System Settings
10. System Settings To access the system settings screen, first make sure the dash cam is on the Preview interface, then press the Settings button. You will be able to configure the available settings by using the Down button. 2023-11-11 00:00 Settings Resolution 4K+2K... - Page 39 Settings Screen Dormant Resolution 4K+2K Off Speed Unit 1 Min 3 Min Screen Dormant Off (4) Antiflicker Mode: 60Hz (default)/50Hz Antiflikcker mode refers to the frequency of the alternating current (AC) that is used in most electrical power systems around the world. We recommend you keep the default setting.
- Page 40 (6) Parking Monitor: Off (default)/Low/Middle/High When the car engine is off, the dash cam will enter parking mode automatically. If an impact or sudden braking is detected during parking, the dash cam will automatically start recording a 15-second video and save the content. The video will be locked in the front or rear emergency folder, preventing it from being overwritten by new video files.
- Page 41 ensure continuous recording. To change the video length, simply access the loop recording settings screen to select your desired loop recording time. (11) Time Setting Please manually set the camera’s date and time per your time zone. The dash cam will then display the correct date and time.
- Page 42 will then respond to the given voice commands, executing various functions. With this intelligent feature, you can focus on driving and mind road conditions ahead, thus ensuring better safety. What’s more, this feature allows you to do simple tasks without lifting a single finger, such as recording video, shooting, changing the camera’s settings, and more.
- Page 43 (20) Reset System: Yes/No This option will restore all the settings to default values. Note: This option will also reboot your dash cam. prompt Reset factory at once? (21) About This option allows you to check this dash cam’s model and version. ��...
-
Page 44: General Faqs
➂ If the camera still does not take charge with the USB cable, kindly contact customer service for further help. 4. What to do if you can't connect the Kingslim APP to your dash cam? ➀ Make sure you have installed the up-to-date Kingslim APP on your phone. - Page 45 5. What to do if the camera Wifi is not connected? ➀ Check if your dash cam enters Wifi mode and displays the Wifi information after you turned on Wifi. Warm tip: Do not exit the Wifi screen, otherwise, the camera Wifi will be disconnected. ➁...
-
Page 46: Contact Us
12. Contact Us For any inquiries about KINGSLIM products, please feel free to contact us. We will respond within 24 hours. ��... -
Page 47: A Big Thank You
In the unlikely event that we can’t help, we’re always happy to provide a full, and hassle-free refund under the warranty. We sincerely hope our customers are happy and proud to use KINGSLIM dash camera! There is no perfect product, however, we will do our best. For more details, please contact us by email.
