Summary of Contents for KingSlim D6

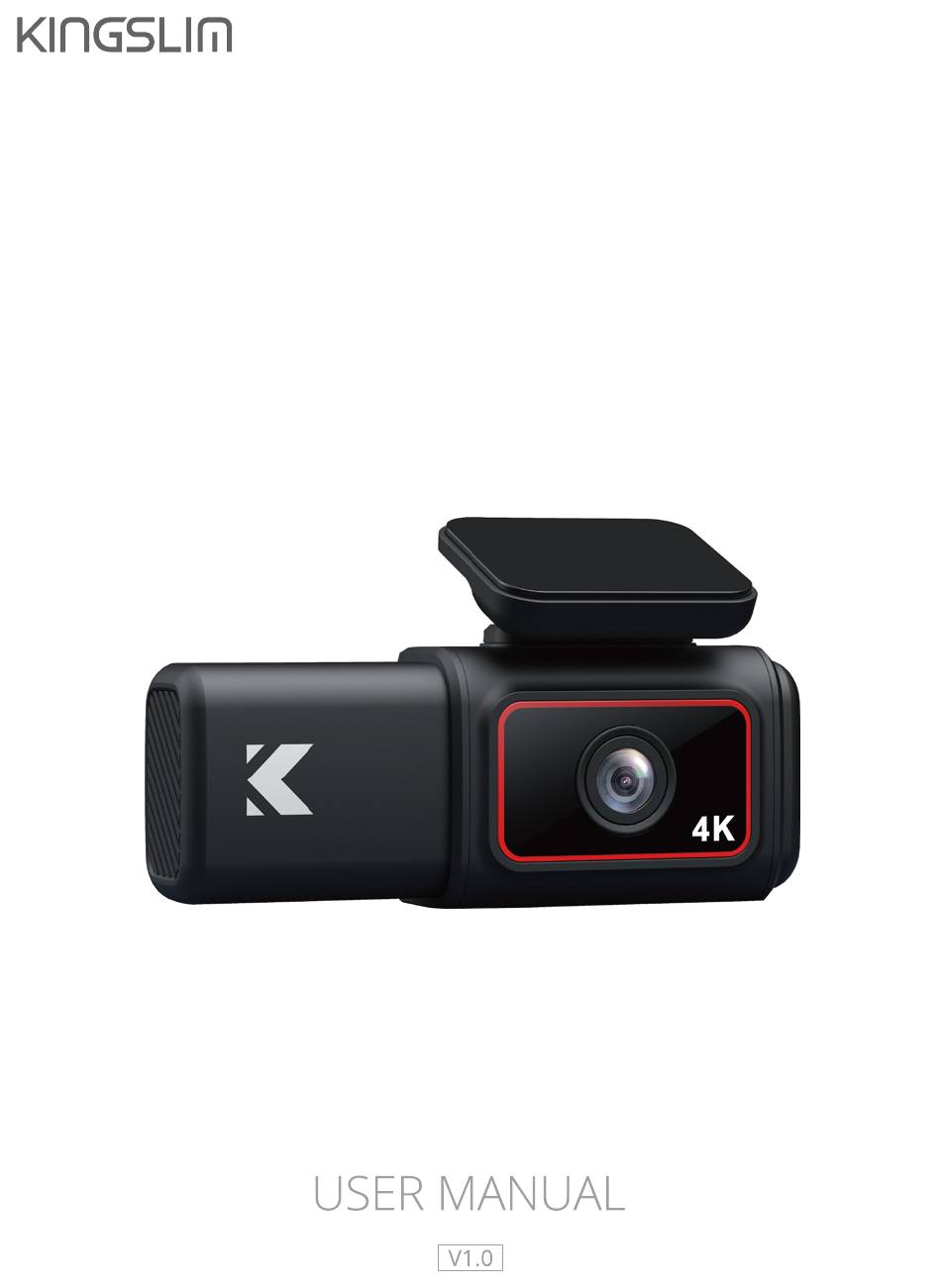

  • Page 1 D A S H C A M...
  • Page 2: Table Of Contents

    12.1 Insert the memory card---------------------------------------------------------- 11 12.2 Insert the bracket into the bracket slot ------------------------------------- 11 12.3 Install the suction cup mount -------------------------------------------------- 12 12.4 Install the D6 dash cam to the windshield --------------------------------- 13 13. Charging ------------------------------------------------------------------------------------ 14 14. Button Operation Instructions ------------------------------------------------------ 15 14.1 Preview interface ------------------------------------------------------------------ 15...
  • Page 3 Playback ----------------------------------------------------------------------------------------- 20 1. Dash cam playback ----------------------------------------------------------------------- 20 2. Kingslim APP playback------------------------------------------------------------------- 20 2.1 APP Download------------------------------------------------------------------------ 20 2.2 Connect to Kingslim APP ---------------------------------------------------------- 20 2.3 App playback ------------------------------------------------------------------------- 22 3. PC/MAC playback -------------------------------------------------------------------------- 24 3.1 Data transmission ------------------------------------------------------------------- 24 3.2 Correct video player to play 4K videos ---------------------------------------- 25...
  • Page 4 12. Wifi-------------------------------------------------------------------------------------------- 28 13. Date/Time ---------------------------------------------------------------------------------- 28 14. Time system ------------------------------------------------------------------------------- 28 15. Language ----------------------------------------------------------------------------------- 29 16. Parking Mode ----------------------------------------------------------------------------- 29 17. Frequency ---------------------------------------------------------------------------------- 29 18. Fatigue driving reminder-------------------------------------------------------------- 29 19. Time Zone ---------------------------------------------------------------------------------- 29 20. GPS speed ---------------------------------------------------------------------------------- 30 21.
  • Page 5: Important Messages

    Important Messages User agreement By purchasing KINGSLIM Dash cam, it is assumed that by default you agree with precautions, user warnings and all the terms & conditions of warranty. If for any reason you do not agree with any of the terms mentioned in this manual, then you may return the product in its original packaging unused within its return window for a full refund.
  • Page 6 • Do not expose this device to an excessive heat, dust or use any chemical substance or cleaning solvent to clean this device. Instead use soft moist cloth for cleaning. Pay careful attention when cleaning the lens surface. Use a soft, moist cloth to clean the lens to avoid scratches which may compromise video quality.
  • Page 7: Getting Started

    3. Recording KINGSLIM 4K D6 dash cam is programmed to turn ON and start recording automatically when it receives power, and when the power gets disconnected, it will stop...
  • Page 8: Settings

    8. Wifi You can also connect KINGSLIM D6 Car Dash Cam to your smart phone directly by using built-in Wifi feature. After your mobile phone is connected to the hotspot of our device, the 4G signal of the mobile phone will be blocked, and it will automatically recover after disconnection.
  • Page 9: Camera Specifications

    9. Camera Specifications LCD touch screen 2-inch IPS Video resolution 4K+2K (Front+Rear), 4K+1080P (Front+Interior) Photo resolution Lens aperture F/1.8 Included Wifi Built-in Video format Memory card Above Class10 U3 speed, max up to 256GB G-sensor Built-in 3-Axis Anti flicker 50 Hz / 60 Hz Loop recording Support-seamless recording Parking Mode...
  • Page 10: What's In The Box

    10. What is in the Box Dual Dash Cam D6 Dash Cam Bracket Suction Cup Mount × 1 × 1 × 1 Car Charger with 3.5 M Double-sided Adhesive Electrostatic Sticker Power Cable × 1 Tape for Dash Cam × 2 ×...
  • Page 11: Camera Overview

    11. Camera Overview Function button Front camera Type C power port Card slot Indicator light Display screen Rearview camera IR Fill light...
  • Page 12: Installation

    12. Installation 12.1 Insert the memory card. Tips: The dash cam supports up to 256GB memory card of Class 10 or above. memory card 12.2 Insert the bracket into the bracket slot. Warm Tip: You can also insert the suction cup mount into the bracket slot.
  • Page 13: Install The Suction Cup Mount

    12.3 Install the suction cup mount. ① Remove the film of the suction cup. ② Insert the suction cup into the bracket slot and make sure there is no air inside the suction cup. Rotate to secure the bracket.
  • Page 14: Install The D6 Dash Cam To The Windshield

    ③ Peel off the film on one side of the double-sided adhesive tape and apply the tape to the D6 Dash Cam. ④ Peel off the film on the other side of the adhesive tape and press the D6 Dash Cam firmly to secure it on the electrostatic sticker (if you wish to remove the dash cam, please take off...
  • Page 15: Charging

    13. Charging Connect the USB power cable into the USB power port of D6 Dash Cam, then plug the car charger into the cigarette lighter of your car. Car cigarette lighter socket Car cigarette lighter plug D6 Dash Cam Note: Do NOT connect the camera to PC for charging.
  • Page 16: Button Operation Instructions

    14. Button Operation Instructions 14.1 Preview Interface 00:00:00 4K+1080P 01/1/2022 00:00:00 Parking monitor Short-press this button to turn the parking monitor mode on or off. Setup / Wifi Short-press this button to enter Menu, long press to enter the Wifi mode. Short-press the Back button to return to the preview mode.
  • Page 17: Main Interface

    14.2 Main Interface 00:00:00 4K+1080P 01/1/2022 00:00:00 Photo Short-press this button to take photos. Emergency recording Short-press this button to turn the emergency recording mode on or off. Audio recording Short-press this button to turn the audio on or off. Stop recording Short-press this button to stop recording.
  • Page 18: Start Recording

    2. Two-channel mode, 4K+2K (Front+Rear), or 4K+1080P (Front+Interior). (Default setting is 4K+1080P) Enter the menu to choose the resolution. Note: The rear camera for the D6 dash cam is not included, please purchase it separately to make the three-way mode possible. 2. Time Zone Setting Choose the time zone manually before starting recording.
  • Page 19: Memory Card Use

    USA. 3. Memory card use A Class 10 or above memory card is highly recommended for the D6 dash cam (memory card is not included). D6 dash cam supports an up to 256GB memory card. Please format your card in the camera before using this dash cam. Do not remove or insert the memory card when the dash cam is turned on.
  • Page 20: Removal

    ① Press the button to stop recording. ② Short-press Setup/Wifi button to enter Menu. ③ Choose options on the menu, click the OK button to confirm. ④ Click the Format option to format, then choose OK. 5. Return to the main interface, press the button to start recording.
  • Page 21: Playback

    2. Kingslim APP Playback 2.1 APP Download Download the Kingslim APP on the APP Store or Google Play. 2.2 Connect to Kingslim APP ① Stop video recording on the dash cam. ② After pausing video recording, long press the Setup/Wifi button to enter the Wifi...
  • Page 22 ③ Go to your smartphone’s Wifi settings, search for the same Wifi SSID name displayed on the screen, and enter the password 12345678 for connection. D6- **** ④ Open the Kingslim APP, tap the “New Account” icon, enter your email and get the verification code for login.
  • Page 23: App Playback

    To play back videos on your smartphone, simply long press the Wifi button to turn on the camera Wifi first, then connect the KINGSLIM hot spot by entering the default password “12345678” . Once connected, simply open the correct Kingslim App to add your model.
  • Page 24 Using Kingslim App to download videos to your smartphone for local playback. ① Tap the “Video set” icon to enter the menu. D6_ **** ② Tap the “Select” icon at the upper right corner and tap the video you want to...
  • Page 25: Pc/Mac Playback

    ③ Waiting for the completion of download progress, the video will be downloaded to phone photo album. Tap the video and it will play. 3. PC/MAC playback 3.1 Data transmission ① Connect the camera with the short USB cable and choose to connect as Mass Storage on the camera when this message pops up.
  • Page 26: Correct Video Player To Play 4K Videos

    ② GPS player (GPS player software installation (PC/MAC only). You can also use our GPS Player from our website for free to view the google maps from https://kingslim.net/pages/gps-player. What are the features ? To see the exact GPS route with the video on google maps;...
  • Page 27: System Settings

    System Settings 1. Resolution Select to switch resolution. Options: • 4K+2K • 4K+1080P • 2K+1080P+2K Default setting: 4K+1080P 2. Loop Recording If you choose the 3 Minutes option, the files will be saved every 3 minutes. When the memory card is full, new files will overwrite the old ones if Loop Recording is on.
  • Page 28: Record Audio

    5.Record Audio Select to turn on / off. Default setting: on 6. Beep Sound Turn the beep sound on / off. Default setting: On 7. Date Stamp Select to add a date stamp to photos / videos. Turn the on / off. Default setting: Off...
  • Page 29: Screen Saver

    10. Screen Saver The display screen will turn off automatically after a set time. When the screen is turned off, power consumption will be reduced. The camera will still work while the screen is turned off. Just click the screen to turn it back on. Options: •...
  • Page 30: Language

    15. Language 9-country languages. Default setting: English 16. Parking Mode If there is an impact on the car during parking, the camera will turn on automati- cally and create a locked 20-second recording. The higher the selected level, the easier it is to trigger the recording. Default setting: Off...
  • Page 31: Gps Speed

    20. GPS speed Track your driving speed and show your preferred speed unit. Options: • KM / H • MPH Default setting: KM / H 21. Format Format your memory card. 22. Default setting Restore the default settings. 23. Version info Check the software version of the camera.
  • Page 32 ② If not, plug the dash cam into another cigarette lighter or USB port for about one hour to see if it finally turns on. ③ If so, contact customer support for further help. 3. What to do if your dash cam does not turn off ? ①...
  • Page 33: Contact Us

    ③ If your issue remains, contact customer support for further help. 9. What to do if you can’t connect your dash cam with the app Kingslim ? ① Make sure the camera Wifi is connected normally before connecting with the app.
