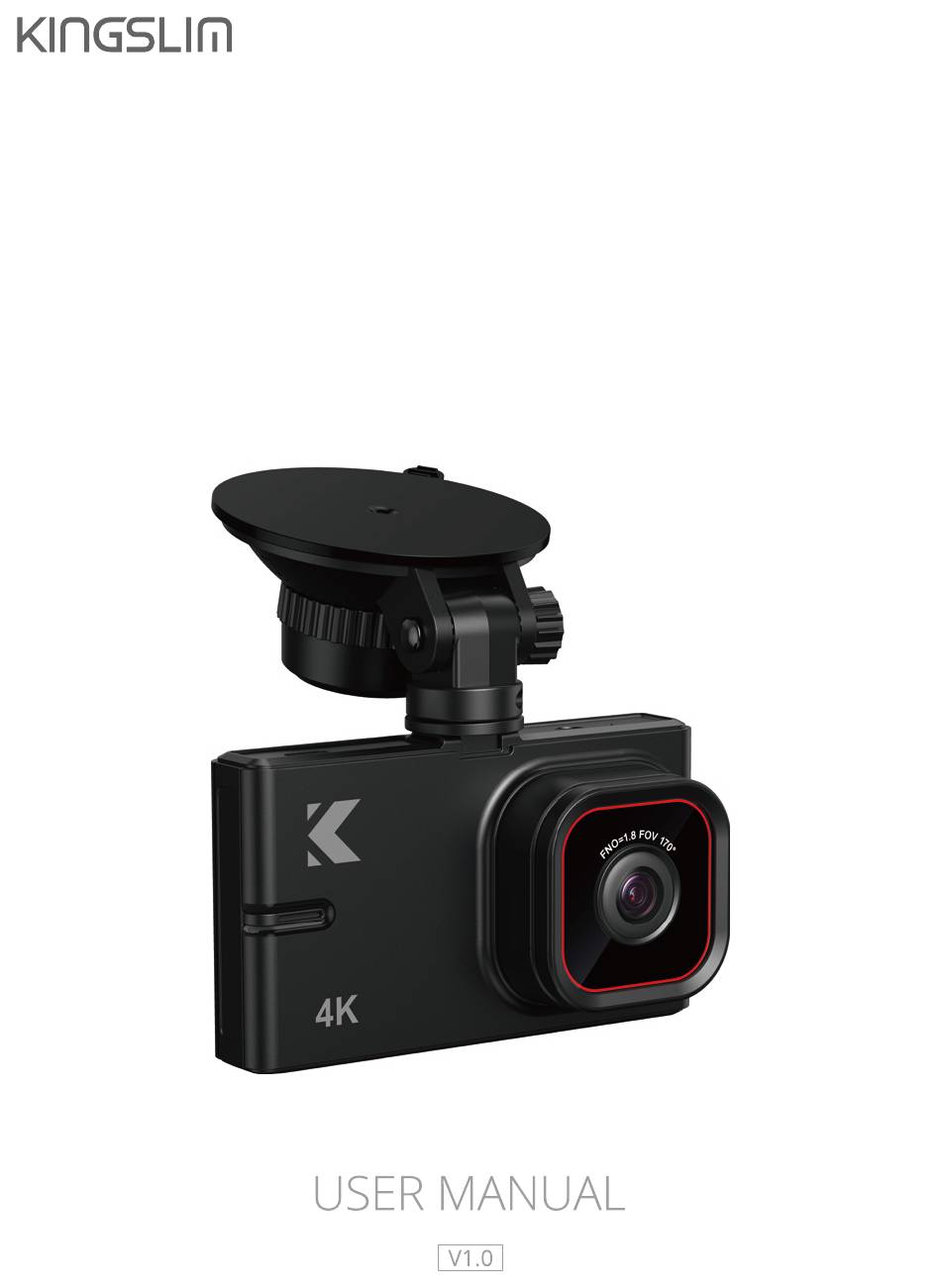

- Page 1 D2 PRO D A S H C A M...
-
Page 2: Table Of Contents
Contents Important Messages ------------------------------------------------------------------------ 04 Getting Started-------------------------------------------------------------------------------- 06 1. Memory card-------------------------------------------------------------------------------- 06 2. First-time charging ------------------------------------------------------------------------ 06 3. Recording ------------------------------------------------------------------------------------ 06 4. Settings---------------------------------------------------------------------------------------- 07 5. Setting date & time ----------------------------------------------------------------------- 07 6. How to hide power cable inside your car’s dash board? -------------------- 07 7. - Page 3 2.2 Removal ---------------------------------------------------------------------------------- 19 2.3 Formatting ------------------------------------------------------------------------------- 20 3. Time zone setting-------------------------------------------------------------------------- 20 Playback ----------------------------------------------------------------------------------------- 21 1. Dash cam playback ----------------------------------------------------------------------- 21 2. Kingslim APP playback------------------------------------------------------------------- 22 3. PC/MAC playback -------------------------------------------------------------------------- 26 System Settings------------------------------------------------------------------------------- 28 1. Resolution------------------------------------------------------------------------------------ 28 2. Loop recording ----------------------------------------------------------------------------- 28 3.
- Page 4 16. Version -------------------------------------------------------------------------------------- 30 17. Time Zone Setting ----------------------------------------------------------------------- 30 General FAQ------------------------------------------------------------------------------------ 31 Contact Us -------------------------------------------------------------------------------------- 33...
-
Page 5: Important Messages
Important Messages User agreement By purchasing KINGSLIM Dash cam, it is assumed that by default you agree with precautions, user warnings and all the terms & conditions of warranty. If for any reason you do not agree with any of the terms mentioned in this manual, then you may return the product in its original packaging unused within its return window for a full refund. - Page 6 • Do not expose this device to an excessive heat, dust or use any chemical substance or cleaning solvent to clean this device. Instead use soft moist cloth for cleaning. Pay careful attention when cleaning the lens surface. Use a soft, moist cloth to clean the lens to avoid scratches which may compromise video quality.
-
Page 7: Getting Started
3. Recording KINGSLIM 4K D2 Pro dash cam is programmed to turn ON and start recording automatically when it receives power, and when the power gets disconnected, it... -
Page 8: Settings
8. Wifi You can also connect KINGSLIM D2 Pro Car Dash Cam to your smart phone directly by using built-in Wifi feature. After your mobile phone is connected to the hotspot of our device, the 4G signal of the mobile phone will be blocked, and it will automatically recover after disconnection. -
Page 9: Button Operation Instructions
9. Button operation instructions 9.1 Preview interface 01/01/2022 00:00:00 AM 00:00:00 Up Button Down Button Power Button OK Button Setup Button Microphone/Wifi indicator Short-press the Down button to turn on or off Microphone. Long press to enter the Wifi mode. Settings/Album Short-press the Setup button to enter the settings menu. -
Page 10: Recording Interface
9.2 Recording interface 01/01/2022 00:00:00 AM 00:00:01 Microphone indicator Short-press the Down button to turn on or off Microphone. Emergency recording Short-press Setup button to lock the current video. Snapshot Short-press the Down button to snap a shot. 9.3 Playback interface 20220101104233_000005A Up button Down button... -
Page 11: Camera Specifications
Settings Long press the Setup button to enter or exit the playback interface. Short-press to enter the video deletion page. 10. Camera Specifications Sensor GC4653 LCD touch screen 3-inch IPS Video resolution 4K(Front only) / 2K(Front)+1080P(Rear) / 1080P(Front)+1080P (Rear) Photo resolution Lens aperture F/1.8 Optional... -
Page 12: What's In The Box
11. What is in the Box D2 Pro Dash Cam * 1 Waterproof Bracket * 1 Rear Camera * 1 Car Charger with 3.5m Rear Camera Extension Pry Tool * 1 Power Cable * 1 Cable * 1 Double-sided Adhesive... -
Page 13: Camera Overview
12. Camera Overview Rear Camera IN Bracket Slot Mini USB Power Port (Power supply) Reset Memory Card Slot Indicator Light Microphone Front Camera Speaker Up Button Down Button Power Button OK Button Setup Button Screen... -
Page 14: Installation
13. Installation 13.1 Insert the memory card. Tips: The dash cam supports up to 256GB memory card of Class 10 or above. memory card 13.2 Insert the bracket into the bracket slot. -
Page 15: Install The Dash Cam On The Windshield
13.3 Install the dash cam on the windshield. ① Clean the windshield with a dry cloth. ② Take the film of the suction cup and press the suction cup onto the windshield to make sure there is no air inside the suction cup. ③... -
Page 16: Install The Rear Camera
13.4 Install the rear camera. Position 1: Install the rear camera on the rear windshield. The installation is easier when using this method. The power cables are routed as follows: Position 2: It is recommended to install the rear camera near the license plate. In this way, the image is crisp and clear for both rear viewing and reversing guide. - Page 17 Note: ① When connecting the rear camera with the extension cable, please refer to the details below. ② Please clean the position to ensure the adhesive quality before installing the rear camera. ③ Please clean the rear windshield regularly to ensure the image quality if you choose to install the rear camera on the rear windshield.
-
Page 18: Charging
14. Charging 14.1 Connect the USB power cable into the USB power port of D2 Pro Dash Cam, then plug the car charger into the cigarette lighter of your car. Car cigarette lighter socket Car cigarette lighter plug D2 Pro Dash Cam Note: Do NOT connect the camera to PC for charging. -
Page 19: Start Recording
Start recording 1.Main interface 4 5 6 01/01/2022 00:00:00 AM 01/01/2022 00:00:00 AM 00:00:00 00:00:01 Current resolution Settings/Playback Video time Switch display modes Date/Time Confirm Audio recording Power icon Memory card indicator Power status Charging indicator Emergency recording Microphone/Wifi Snapshot Note: While recording, long press the Setup button to lock the video. -
Page 20: Memory Card Use
2. Memory card use A Class 10 or above memory card is highly recommended for the D2 Pro dash cam (memory card is not included). D2 Pro dash cam supports an up to 256GB memory card. Please format your card in the camera before using this dash cam. Do not remove or insert the memory card when the dash cam is turned on. -
Page 21: Formatting
2.3 Formatting Please format the memory in the camera before using this dash cam. Tip: Do not remove or insert the memory card when the dash cam is turned on as this may damage the card. ① Press the OK button to pause recording. -
Page 22: Playback
Greenwich Mean Time (GMT) Time zone When Daylight Savings Ends When Daylight Savings Begins Nov-March March-Nov Hawaii GMT (-10:00) Alaska GMT (-9:00) GMT (-8:00) Pacific Time Zone GMT (-8:00) GMT (-7:00) Mountain Time Zone GMT (-7:00) GMT (-6:00) Central Time Zone GMT (-6:00) GMT (-5:00) Eastern Time Zone... -
Page 23: Kingslim App Playback
③ Go to your smartphone’s Wifi settings, search for the same Wifi SSID name displayed on the screen, and enter the password 12345678 for connection. D2 PRO_ **** ④ Open the Kingslim APP, tap the “New Account” icon, enter your email and get the verification code for login. - Page 24 Wifi first, then connect the Kingslim hot spot by entering the default password “12345678”. Once connected, simply open the correct Kingslim App to add your model. Please note that for KINGSLIM models, only Kingslim App can be used for operation. Enter the preview interface, tap the “Video set” icon, then you can watch those videos.
- Page 25 2.4 Using Kingslim App to download videos to your smartphone for local playback. ① Tap the “Video set” icon to enter the menu. D2 Pro_ **** ② Tap the “Select” icon at the upper right corner and tap the video you want to...
- Page 26 ③ Tap the icon at the bottom left corner to download the video. ④ Waiting for the completion of download progress, the video will be downloaded to phone photo album. Tap the video and it will play.
-
Page 27: Pc/Mac Playback
① We recommend VLC Media player. You can get the player for free at www.videolan.org ② GPS player (GPS player software installation (PC/MAC only). You can also use our GPS Player from our website for free to view the goggle maps from https://kingslim.net/pages/gps-player... - Page 28 What are the features ？ To see the exact GPS route with the video on google maps; Check driving speed; Check driving direction Play back your Look up recorded videos (i.e. N, S, NW, SE, etc.). recorded video To see the exact GPS route with the video on goggle maps; Check driving speed;...
-
Page 29: System Settings
System Settings 01/01/2022 00:00:00 AM Setup 00:00:00 Resolution Loop Recording Exposure Record Audio Short-press the Setup button to enter the menu page. 1. Resolution The recording resolution of the front camera can be single 4K or 2K+1080P and dual 1080P. The default resolution is 4K. The recording resolution of rear camera is not optional, with a default resolution of 1080P. -
Page 30: Date Stamp
3.Exposure Select to change exposure. Options: +0.0, -1 / 3, -2 / 3, -1.0, 4 / 3, -5 / 3, -2.0 (Default setting: +0.0) 4.Record Audio Record sounds and videos at the same time Option: on / off (Default setting: on) 5. -
Page 31: Hour Time
9. 12-Hour Time Options: Off / On (Default setting: On) 10. LCD auto off The screen will be turned off automatically after the time you set. After turning off, the screen will reduce power consumption. The camera still works while the display screen is turned off. -
Page 32: Version
16. Version Displays this dash cam’s model and software version. 17. Time Zone Select Manually choose the corresponding time zone of your region, and the recorder will automatically display the date and time of the time zone. Default setting: Off Note: The GPS module is sold separately. - Page 33 ① Make sure the camera Wifi is connected normally before connecting with the app. ② Open the Kingslim APP, tap the New Account icon, enter your email and get a verification code for login. ③ Tap Add Recorder, and wait for a few seconds to enter the preview interface.
-
Page 34: Contact Us
Contact Us (888) 811-1140 (US) cs@kingslim.net kingslim.net For any inquiries about KINGSLIM products, please feel free to contact us. We will respond within 24 hours.
