Printed Matter No. 9836 6534 01
Publication Date 2021-05-21
Valid from Serial No. A3550001
Valid to Serial No. A2839999
POWER FOCUS 600
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
POWER FOCUS 600
8436370001
WARNING
Control and drive unit
Product Instructions
Advertisement
Table of Contents
Related Manuals for Atlas Copco POWER FOCUS 600
Summary of Contents for Atlas Copco POWER FOCUS 600
- Page 1 POWER FOCUS 600 Printed Matter No. 9836 6534 01 Control and drive unit Publication Date 2021-05-21 Valid from Serial No. A3550001 Product Instructions Valid to Serial No. A2839999 POWER FOCUS 600 8436370001 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Preventing ESD problems ................ 11 Maintenance Instructions................ 11 Service recommendations .............. 11 Replacing the clock and calendar battery.......... 11 General Service and Maintenance Safety ........... 11 Repair Instructions.................. 12 Wiring .................... 12 Recycling ....................... 13 Environmental Regulations................ 13 Recycling information .................. 13 © Atlas Copco Industrial Technique AB - 9836 6534 01... -
Page 3: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 4: Website
Atlas Copco website. Please visit: www.atlascopco.com. Safety Data Sheets MSDS/SDS The Safety Data Sheets describe the chemical products sold by Atlas Copco. Please consult the Atlas Copco website for more information www.atlascopco.com/sds. Country of Origin For the Country of Origin, please refer to the information on the product label. -
Page 5: Network Connections
Temporary overvoltages occurring on the mains supply ■ Pollution degree 2 ■ Ingress protection rating: Technical Product Data Technical Product Data can be found on either ServAid, or the Atlas Copco website. Please visit: https://servaid.atlascopco.com or www.atlascopco.com. Service Overview Service recommendations Preventive maintenance is recommended at regular intervals. -
Page 6: Installation

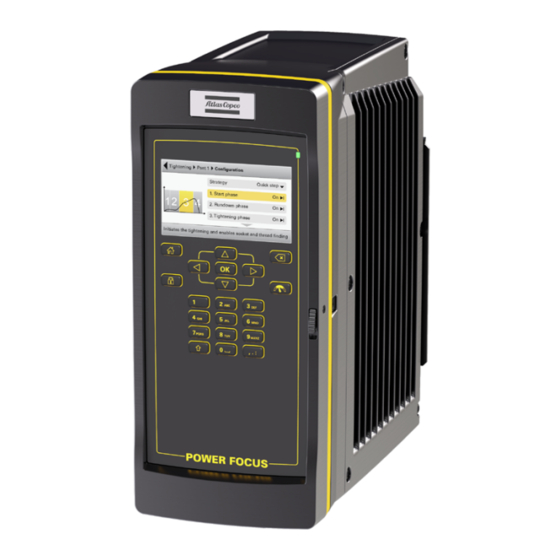

Installation POWER FOCUS 600 Installation Installation Requirements Installation checklist This POWER FOCUS 600 is a control and monitoring unit for electric assembly tools. The system consists of: ■ a POWER FOCUS 600 ■ an IAM, Intelligent Application Module, containing software and configurations ■... -
Page 7: Configuring Remote Start For Single Controller Solutions
Emergency stop in Power Focus 600 Power Focus 600 is equipped with an emergency stop function with redundant breaking according to EN ISO 13849-1 category 3 PL d. It provides a safe system that can be used with hand-held tools and sys- tems. -
Page 8: Installing The Ip54 Module
Put the wall cover back into position. Make sure that the blue insets are positioned inside the corre- sponding grooves of the wall cover. Tighten the screw with an Allen key. Close the front cover of the controller. © Atlas Copco Industrial Technique AB - 9836 6534 01... -
Page 9: Rcbo - Test
Phase and neutral are found in the two holes located above the RCBO switch. In the case of a mains volt- age of 220V or above, a functionality test can be performed by pushing the yellow button on the RCBO device. © Atlas Copco Industrial Technique AB - 9836 6534 01... -
Page 10: Operation
Type your torque value and press OK. The system is now ready to perform a tightening using the specified torque. Please refer to the User guide for more information on how to set up your system. © Atlas Copco Industrial Technique AB - 9836 6534 01... -
Page 11: Service
Cleaning Instruction Equipment should be wiped off with a damp/wetted cloth. Only use water, no cleaners containing solvents should be used. © Atlas Copco Industrial Technique AB - 9836 6534 01... -
Page 12: Repair Instructions
Interrupter (GFI). The test button for the GFI activates the GFI even if the power supply is from an isolated transformer. Warning! If the power supply cable needs to be replaced, only use an Atlas Copco original replacement cord. Use of another cable may result in dangerous situations. -
Page 13: Recycling
When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle the components in accordance with local legislation. Batteries shall be taken care of by your national battery recovery organization. Recycling information Part Recycle as Chassis Aluminum Wall mount Steel © Atlas Copco Industrial Technique AB - 9836 6534 01... - Page 14 Skiip module plate Steel Screw Steel Chassis lid Aluminum Washer Steel Radio cover Front lid Aluminum Lithium battery Battery IT board WEEE Speaker WEEE Front Aluminum Logo plate Aluminum Overlay WEEE © Atlas Copco Industrial Technique AB - 9836 6534 01...
- Page 16 Original instructions © Copyright 2021, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
