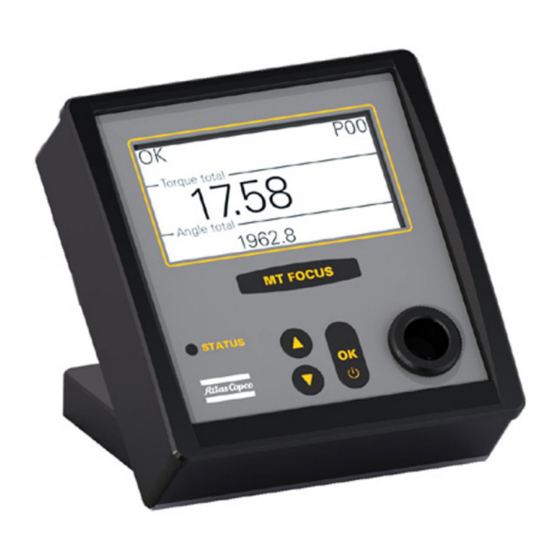

Atlas Copco MT Focus 400 Product Instructions

Control and drive unit
Hide thumbs Also See for MT Focus 400:
Table of Contents

Advertisement

Quick Links

Download this manual
Printed Matter No. 9836 6294 01
Publication Date 2020-04-16
Valid from Serial No. A5690001
Valid to Serial No. A2509999
MT FOCUS 400A
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
MT Focus 400
8432085000
WARNING
Control and drive unit
Product Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT Focus 400 and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas Copco MT Focus 400

Summary of Contents for Atlas Copco MT Focus 400

  • Page 1 MT Focus 400 Printed Matter No. 9836 6294 01 Control and drive unit Publication Date 2020-04-16 Valid from Serial No. A5690001 Product Instructions Valid to Serial No. A2509999 MT FOCUS 400A 8432085000 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.

  • Page 2: Table Of Contents

    Service recommendations .............. 18 Maintenance .................. 18 Controller ...................... 19 Opening the cover ................ 19 Changing the front panel .............. 19 Changing the display ................ 20 Closing the cover................. 21 Controller software update................ 22 Troubleshooting.................... 23 Controller reference .................. 23 Controller messages................ 23 © Atlas Copco Industrial Technique AB - 9836 6294 01...
  • Page 3 Controller system information.............. 24 Recycling ....................... 25 Environmental Regulations................ 25 © Atlas Copco Industrial Technique AB - 9836 6294 01...

  • Page 4: Product Information

    ■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions.

  • Page 5: Servaid

    For further Technical Information, please contact your local Atlas Copco representative. Safety Data Sheets MSDS/SDS The Safety Data Sheets describe the chemical products sold by Atlas Copco. Please consult the Atlas Copco website for more information www.atlascopco.com/sds. Country of Origin For the Country of Origin, please refer to the information on the product label.

  • Page 6: Technical Data

    Voltage Power 240 W Motor voltage Motor power Weight Weight Technical Product Data Technical Product Data can be found on either ServAid, or the Atlas Copco website. Please visit: https://servaid.atlascopco.com or www.atlascopco.com. Accessories Included accessories ToolsTalk MT 8432 0831 30...

  • Page 7: Installation

    RS232-C: Serial interface, for various accessories. VP: Vacuum pump connection. Tool, connected with the tool cable. I/O: Single digital input for special purpose. DIGITAL I/O: Connection for various accessories. Connection for ESD protective wrist strap © Atlas Copco Industrial Technique AB - 9836 6294 01...

  • Page 8: Connecting Accessories

    Serial interface (RS232-C) 3-pole socket connector for the serial interface. COM port settings: 115200 Baud, 8 Data bits, 1 Stop bit, No parity, No handshake. Use a 3-pole pin plug from the Binder 719 Series. © Atlas Copco Industrial Technique AB - 9836 6294 01...
  • Page 9 Description Transmitted data Data ground Received data Vacuum pump output (VP) 5-pole socket connector for the connection of Atlas Copco Vacuum pump VPX6 (24 V, 600 mA). Use a 5-pole pin plug from the Binder 719 Series. Output Description Default...
  • Page 10 If used to reset the tool, the signal duration must be more than 40 ms. ■ Interface connection can be connected in PNP mode (source type, positive logic), or in NPN mode (sink type, negative logic). © Atlas Copco Industrial Technique AB - 9836 6294 01...
  • Page 11 EXT-OUT0...EXT- OUT3 The outputs will be connected to the external 0 V when activated. EXT-IN0...EXT- IN3 The inputs will be activated by a 0 V signal applied to the input pin. © Atlas Copco Industrial Technique AB - 9836 6294 01...

  • Page 12: Mechanical Installation Of Controller

    Attach the controller to the surface, preferrably with the removed screws. NOTICE ■ The screws must not protrude into the controller more than 10 mm. © Atlas Copco Industrial Technique AB - 9836 6294 01...

  • Page 13: Operation

    ■ Use dust extraction system or mouth protection mask in dusty environments. Configuration Please refer to User guide 9836 5637 01: ToolsTalk MT. © Atlas Copco Industrial Technique AB - 9836 6294 01...

  • Page 14: Operating Instructions

    Move the selection down OK button: ■ Switch the controller on and off ■ Confirm the selection STATUS indicator: ■ Green - Tightening OK ■ Blue - Batch finished ■ Red - Error © Atlas Copco Industrial Technique AB - 9836 6294 01...
  • Page 15 If required, enter the password. Use the OK button to select a position and the UP or the DOWN but- tons to select the number. Select the required program set. Press OK. © Atlas Copco Industrial Technique AB - 9836 6294 01...
  • Page 16 Auto-start If Auto-start has been enabled from ToolsTalk, an extra menu option, Auto-start, appears. To activate Auto-start: Select Auto-start control in the menu. Press OK. Select Auto-start ON. Press OK. © Atlas Copco Industrial Technique AB - 9836 6294 01...
  • Page 17 To temporarily disable Auto-start: Put a non-magnetic object in the hole (A) on the front of the controller, for example a pencil. The Auto-start function will resume when the object is removed. © Atlas Copco Industrial Technique AB - 9836 6294 01...

  • Page 18: Service

    Check wear of the bit regularly. ■ Replace worn cables immediately. Tools which have been opened by anyone else than Atlas Copco Industrial Technique AB, will not be ser- viced. Calibration and preventive maintenance is recommended at regular intervals once per year or after maxi- mum 1.000.000 tightenings depending on which occurs sooner.

  • Page 19: Controller

    Make sure the light pipe is correctly positioned. Mount the tool holder. Insert the flat cable into the connector, and close the connector by pressing in the movable part using a small screwdriver. © Atlas Copco Industrial Technique AB - 9836 6294 01...

  • Page 20: Changing The Display

    Insert the flat cable into the connector. Make sure the cable runs under the small tabs at each side of the connector Close the connector by turning the movable part back inte position. © Atlas Copco Industrial Technique AB - 9836 6294 01...

  • Page 21: Closing The Cover

    Close the housing. NOTICE ■ Make sure the display and the USB isolator is in correct position. ■ Make sure the flat cable does not get harmed. Mount the four screws. © Atlas Copco Industrial Technique AB - 9836 6294 01...

  • Page 22: Controller Software Update

    Service MT Focus 400 Controller software update Please refer to User guide 9836 5312 01: MicroTorque Controller – Software update. © Atlas Copco Industrial Technique AB - 9836 6294 01...

  • Page 23: Troubleshooting

    Torque not reached The defined Min. torque for the step has not been reached. Total torque too low Total step torque is lower than Min. allowed torque. Unscrew Unscrew process active. © Atlas Copco Industrial Technique AB - 9836 6294 01...
  • Page 24 Friction: The internal friction in the tool. ■ No. tightenings: The total number of tool cycles, including unscrew and Not OK tightenings. ■ Supply Voltage: The controller supply voltage. Press OK when done. © Atlas Copco Industrial Technique AB - 9836 6294 01...
  • Page 25 When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle the components in accordance with local legislation. Batteries shall be taken care of by your national battery recovery organization. © Atlas Copco Industrial Technique AB - 9836 6294 01...
  • Page 28 Original instructions © Copyright 2020, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
