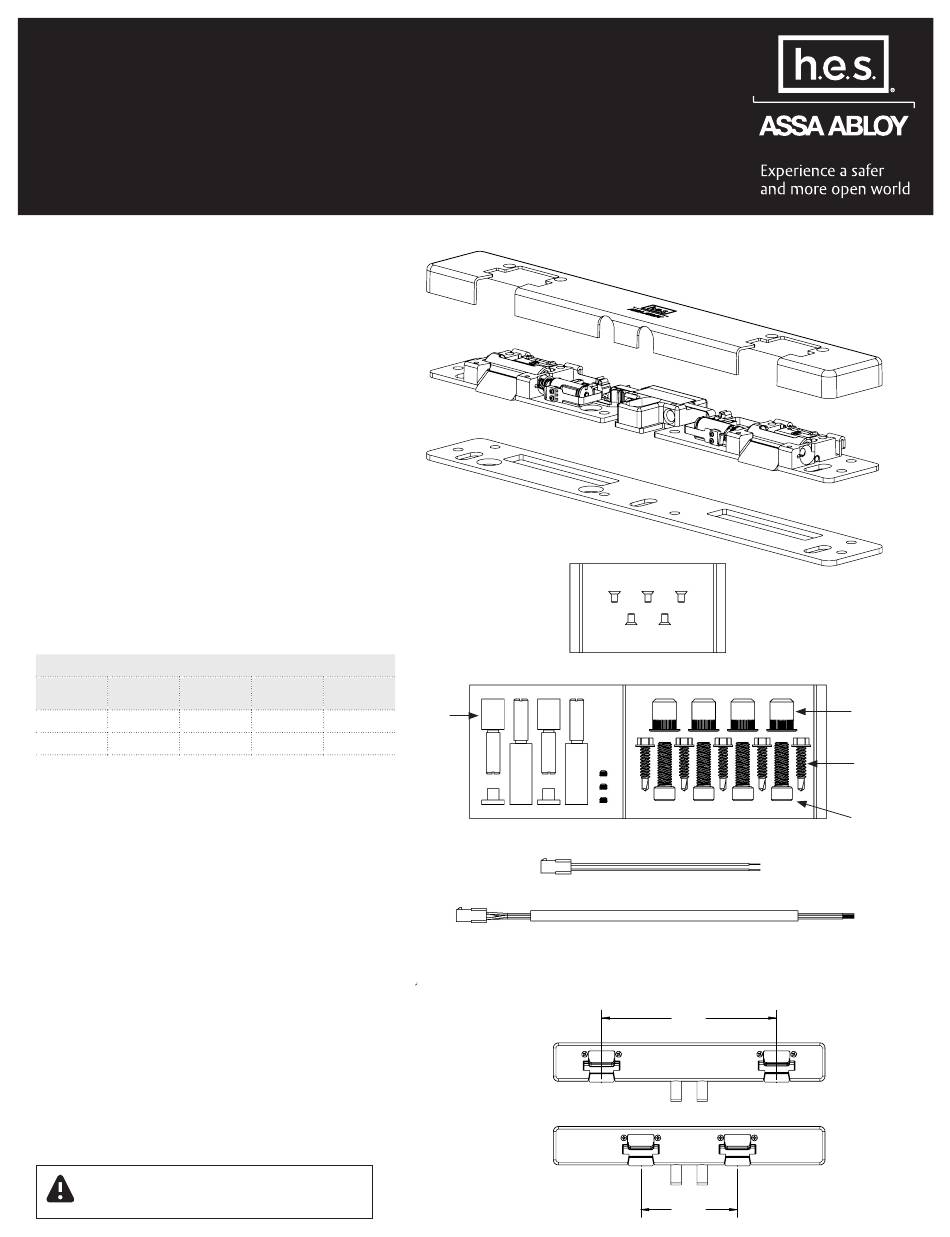

9200 Series
Electric Strikes
Installation & Operating Instructions
Product Components
A
9200 Strike Body
B
9200 Cover
C
9200 1/8" Spacer
D
5/16"–18 x 1" Mounting Screws
E
#12 Self Drilling Lockdown Screws
F
#6-32 x 1/4" Cover Screws
G
Door Stop/Rubber Bumper Kit
H
Blind Nut
I
Power Pigtail
J
LM/LMS Pigtail (included
with LM and LMS only)
Specifications
Recommended Wire Gage For Distance
200 Feet
Voltage
Current
or Less
12 VDC
.5a
18
24 VDC
.25a
22
UL1034
• Static Strength: 1500 lbs
• Dynamic Strength: 70 ft–lbs
• Endurance: 250,000 cycles
UL294 Performance Levels
• Destructive Attack: Level I
• Line Security: Level I
• Endurance: Level IV
• Standby Power: Level I
ANSI BHMA A156.31*
• Grade 1
• Function #: E09361
* For inductive kickback protection, consider using
with the HES 2005M3 SMART Pac
®
Plug-in Bridge Rectifier with built-in MOV.
NOTE Installation wiring for the product and
wiring methods shall be in accordance with the
National Electrical Code, ANSI/NFPA 70.
200–300
300–400
Feet
Feet
16
16
22
20
III or 2001M
B
A
C
F
G
I
J
9200W (WIDE)
9200N (NARROW)
Diagram 1
8-3/8"
4-5/8"
9200W
H
9200N (N
E
D
1 of 4
