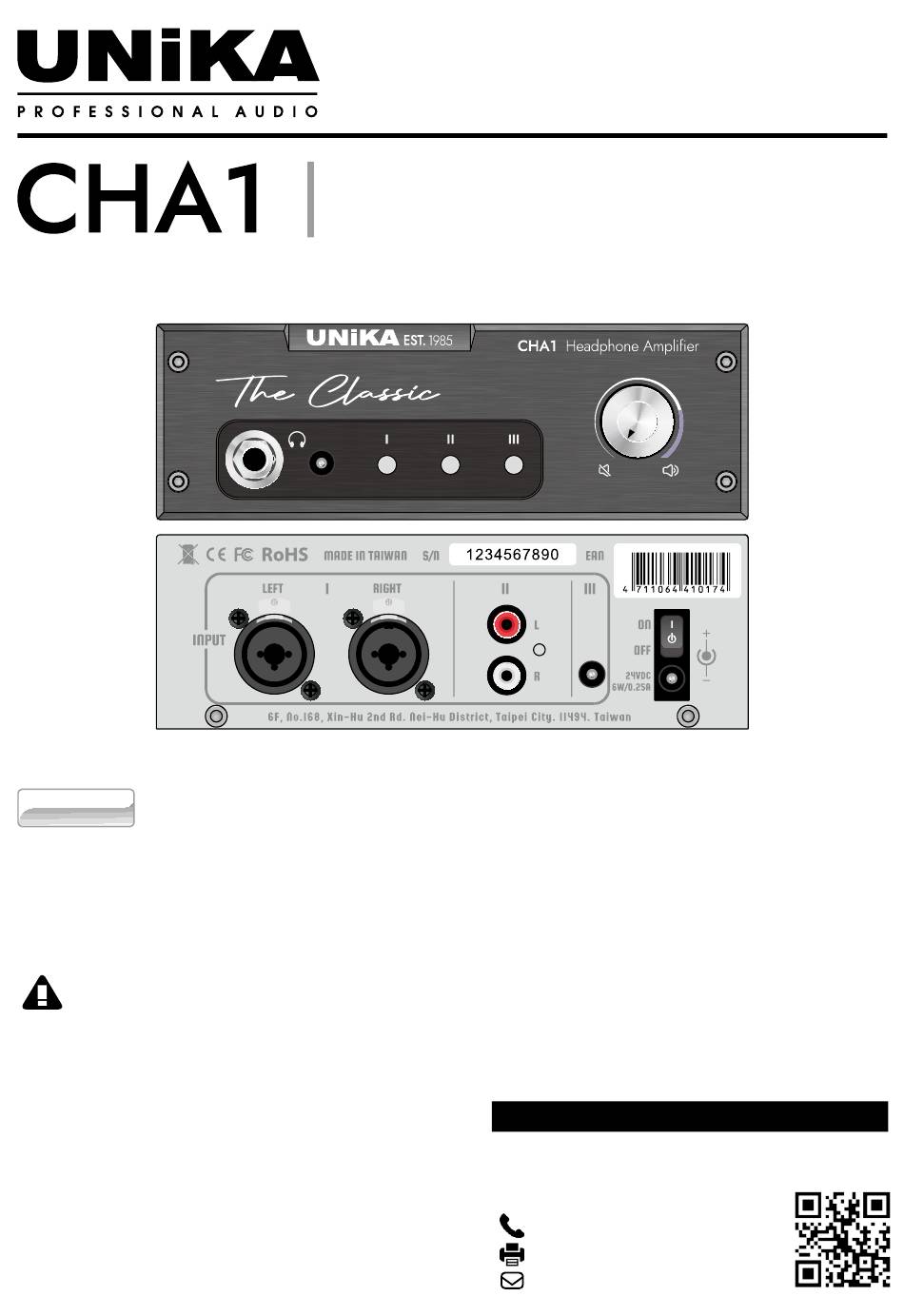

- Page 1 PREVENTING DAMAGE TO HEALTH AND HEARING LOUD AND DANGEROUS SOUND IS ALL AROUND US PRODUCT PACKAGING CONTENTS UNiKA Electronic Co., Ltd. FEATURES w w w . u n i k a p r o . c o m PRODUCT OVERVIEW 6F, No.168, Xin-Hu 2nd Rd.
-
Page 2: General Precaution
User Manual GENERAL PRECAUTION Thank you for purchasing the UNiKA product. Before using, please read this manual carefully and pay attention to every detail that you must pay attention to. Please make sure the power switch is on the "OFF” position before you plugged power adaptor in outlet. And make sure the power switch is on the “OFF”... - Page 3 UNiKA User Manual PREVENTING DAMAGE TO HEALTH AND HEARING • Please protect your hearing from high volume levels. Permanent hearing damage may occur when headphones are used at high volume levels for long periods of time. • To prevent hearing loss and damage from excessive headphone use, the WHO suggests keeping noise levels below 70 decibels over a 24-hour period.
- Page 4 UNiKA User Manual PRODUCT PACKAGING CONTENTS Power supply incl. 4 types CHA1 Headphone amplifier Warranty card of interchangeable AC plug FEATURES • Versatile headphone amplifier with great connectivity • 3 Switchable Stereo Inputs: XLR and 6.3mm Jack Combi, RCA plug and 3.5mm mini-jack • Choice of Headphone Outputs: 6.3mm jack or 3.5mm mini-jack • Specially selected electronic components for crystal-clear sound...
-
Page 5: Product Overview
From the test chart at the end of this manual, we can see that the frequency response of the CHA1 is very flat from 20Hz to 80KHz, and the full-band frequency response error value is not greater than -0.15dB in the test from low impedance to high impedance. - Page 6 UNiKA User Manual APPEARANCE PARTS & FUNCTIONS ① ② ③ ④ ⑤ ⑥ ⑦ ① The TRS stereo headphone output socket cannot be used with the mini TRS at the same time. When using one of the outputs, the other socket will automatically disconnect the output.
- Page 7 UNiKA User Manual APPEARANCE PARTS & FUNCTIONS PUSH PUSH ⑧ ⑨ ⑩ ® ⑧ NEUTRIK Combi jack for left channel input. It can be inserted XLR, TRS and TS plug. ® ⑨ NEUTRIK Combi jack for right channel input. It can be inserted XLR, TRS and TS plug.
-
Page 8: External Power Supply
UNiKA User Manual EXTERNAL POWER SUPPLY AU type plug Power supply body and DC wire US type plug UK type plug EU type plug • Universal Input Range - 90~264VAC • High Efficiency up to 84% • Interchangeable AC Plugs • Right angle DC plug • Class II Note Manufacturer cannot provide special specification plugs other than those mentioned above. -
Page 9: Specifications
UNiKA User Manual SPECIFICATIONS (Specifications are subject to change without notice.) Circuit principle OTL / External power supply / Stereo amplifier 20Hz ~ 20KHz, ±0.2dB Frequency response ( Limited by APx525's B.W. ) 0.0008%, 470 ~ 600Ω@XRL, THD+N @ 10mW 1KHz@20KHz B.W. Dynamic range@ 113.5dB @220Ω load, XLR input ® I: A pair of NEUTRIK Combi jack Input connector II: A pair of RCA ( Corresponding to 3 selection buttons ) - Page 10 UNiKA User Manual INSTRUMENT TEST DATA AND DOWNLOADS • Equipment: Audio Precision APx-525 • Test range: 20Hz~80KHz Items included in the test data • Gain • RMS Level • THD+N Ratio • Relative Level / Frequency Response Example...
- Page 11 Please click the link below to download the detailed rest results directly, https://www.unikapro.com/support/download/ Or please scan the following QR code with your mobile phone or pad,...
