UNiK A
P R O F E S S I O N A L AU D I O
X Series

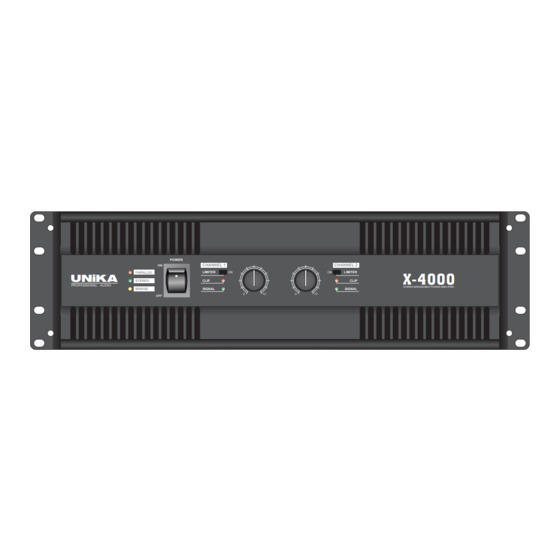

X-3000 <2U MODEL> / X-4000 X-6000 <3U MODEL>
U S E R I N S T R U C T I O N S
This booklet contains important information concerning the proper and safe operation of your new
UNiK A
PROFESSIONAL AUDIO
UNiK A
PROFESSIONAL AUDIO
UNiK A
PROFESSIONAL AUDIO
CHANNEL 1
ON
PARALLEL
LIMITER
ON
STEREO
CLIP
BRIDGE
SIGNAL
OFF
POWER
ON
CHANNEL 1
PARALLEL
LIMITER
ON
STEREO
CLIP
SIGNAL
BRIDGE
OFF
POWER
CHANNEL 1
ON
PARALLEL
LIMITER
ON
STEREO
CLIP
BRIDGE
SIGNAL
OFF
CHANNEL 2
ON
LIMITER
X-3000
CLIP
STEREO BRIDGEABLE POWER AMPLIFIER
SIGNAL
CHANNEL 2
ON
LIMITER
X-4000
CLIP
STEREO BRIDGEABLE POWER AMPLIFIER
SIGNAL
CHANNEL 2
ON
LIMITER
X-6000
CLIP
STEREO BRIDGEABLE POWER AMPLIFIER
SIGNAL
i i i i
amplifier..

Advertisement

Table of Contents
loading

Related Manuals for Unika X-3000

Summary of Contents for Unika X-3000

  • Page 1 P R O F E S S I O N A L AU D I O X Series X-3000 <2U MODEL> / X-4000 X-6000 <3U MODEL> i i i i U S E R I N S T R U C T I O N S This booklet contains important information concerning the proper and safe operation of your new amplifier..

  • Page 2: Important Precautions

    UNiK A X-3000 <2U MODEL> / X-4000 P-6000 <3U MODEL> P R O F E S S I O N A L AU D I O Important Precautions This symbol is used to alert the operator to 13.Do not block fan intake or exhaust ports. Do not...

  • Page 3: Table Of Contents

    UNiK A X-3000 <2U MODEL> / X-4000 X-6000 <3U MODEL> P R O F E S S I O N A L AU D I O CONTENTS Front Views & Rear Views ....................3 Introduction ........................4 Unpacking ...........................4 Installation and Mounting ....................4...

  • Page 4: Front Views & Rear Views

    UNiK A X-3000 <2U MODEL> / X-4000 X-6000 <3U MODEL> P R O F E S S I O N A L AU D I O Front Views & Rear Views Introduction Unpacking Installation and Mounting Front Panel Rear Panel Operation Mode Selection Protection Specifications X-3000 (2U MODEL) Front &...

  • Page 5: Introduction

    Be sure to save the carton and all packing materials for the carrier's inspection. If your packing materials are in good condition, please save them. If you ever need to ship the unit back to UNIKA or an authorized service center, you should use only the original factory packing.

  • Page 6: Front Panel

    "bridge" Mode. 4. UNIKA Logo and Model No - X series have 4 type model X-3000/X-6000 (3U model) / X-3000 (2U model). 5. Fan Inlet Grills and Filter - X Series amplifiers are cooled by two rear-mounted fans. Cool air from front grills are filtered and flows over the heat sinks and exhausts to back side.
  • Page 7 UNiK A X-3000 <2U MODEL> / X-4000 X-6000 <3U MODEL> P R O F E S S I O N A L AU D I O Rear Panel Front Views & Rear Views Introduction Unpacking Installation and Mounting Front Panel...
  • Page 8 UNiK A X-3000 <2U MODEL> / X-4000 X-6000 <3U MODEL> P R O F E S S I O N A L AU D I O Rear Panel Front Views & Rear Views Introduction Unpacking Installation and Mounting Front Panel...

  • Page 9: Operation

    Connecting Inputs Use either the XLR input connectors on the rear to supply audio signals to your UNIKA X Series amplifier. Both connectors accept balanced and unbalanced audio connections. (The X Series amplifiers are configured standard with "Pin 2 hot"...

  • Page 10: Mode Selection

    UNiK A X-3000 <2U MODEL> / X-4000 X-6000 <3U MODEL> P R O F E S S I O N A L AU D I O Mode Selection Front Views & Rear Views Introduction Unpacking Installation and Mounting Front Panel Rear Panel Operation...

  • Page 11: Stereo Mode Connections

    UNiK A X-3000 <2U MODEL> / X-4000 X-6000 <3U MODEL> P R O F E S S I O N A L AU D I O Mode Selection Front Views & Rear Views Introduction Unpacking Installation and Mounting Front Panel Rear Panel Operation...

  • Page 12: Parallel Mode Connections

    UNiK A X-3000 <2U MODEL> / X-4000 X-6000 <3U MODEL> P R O F E S S I O N A L AU D I O Mode Selection Front Views & Rear Views Introduction Unpacking Installation and Mounting Front Panel Rear Panel Operation...
  • Page 13 UNiK A X-3000 <2U MODEL> / X-4000 X-6000 <3U MODEL> P R O F E S S I O N A L AU D I O Mode Selection Front Views & Rear Views Introduction Unpacking Installation and Mounting Front Panel Rear Panel Operation...

  • Page 14: Protection

    UNiK A X-3000 <2U MODEL> / X-4000 X-6000 <3U MODEL> P R O F E S S I O N A L AU D I O Protection Front Views & Rear Views Introduction Unpacking Installation and Mounting Front Panel Rear Panel Operation Mode Selection...
  • Page 15 UNiK A X-3000 <2U MODEL> / X-4000 X-6000 <3U MODEL> P R O F E S S I O N A L AU D I O Specifications Front Views & Rear Views Introduction Unpacking Installation and Mounting Front Panel Rear Panel Operation Mode Selection...
