User Instructions
This booklet contains important information concerning the proper and safe operation of your new amplifier..

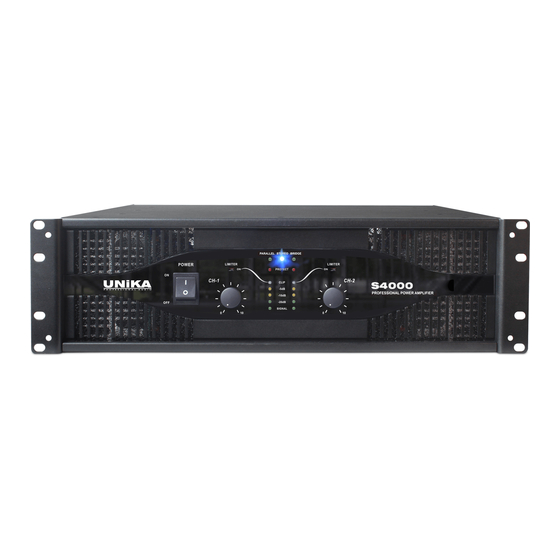

S-Series
S-4000 / S-5000 / S-6000
Made in Taiwan
Advertisement
Table of Contents
Related Manuals for Unika S-4000
Summary of Contents for Unika S-4000
- Page 1 SIGNAL PROFESSIONAL POWER AMPLIFIER This booklet contains important information concerning the proper and safe operation of your new amplifier.. Index S-Series S-4000 / S-5000 / S-6000 Made in Taiwan 02 Introduction 03 Front Panel 04 Rear Panel 05 Set Up...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS S-4000 / S-5000 / S-6000 This symbol is intended to alert the user to the presence of This symbol is intended to alert the user of non insulated "dangerous voltage" within the product's the presence of important operating and...
-
Page 3: Important Precautions
Features Specifications IMPORTANT PRECAUTIONS INTRODUCTION To reduce the risk of electrical shock or fire, do not expose this unit rain or Congratulations and thank you for purchasing S-4000/S-5000/S-6000 moisture. amplifier. These amplifiers are representation of UNiKA’s continuing Do not spill water or other liquids into or on to your unit. -
Page 4: Rear Panel
UNiKA S-4000/S-5000/S-6000 Front Panel Introduction Rear Panel Set Up Speakon Assembly Operating Modes Protection Features Specifications S-4000/S-5000/S-6000 FRONT PANEL PARALLEL STEREO BRIDGE POWER LIMITER LIMITER PROTECT CH-1 CH-2 UNiK A CLIP -5dB PROFESSIONAL AUDIO -10dB -20dB SIGNAL PROFESSIONAL POWER AMPLIFIER Figure 1 1. -
Page 5: Speakon Assembly
UNiKA S-4000/S-5000/S-6000 Rear Panel Introduction Front Panel Set Up Speakon Assembly Operating Modes Protection Features Specifications S-4000/S-5000/S-6000 REAR PANEL 21 22 PUSH TO RESET FREQUENCY INPUT FREQUENCY STEREO GAIN NORMAL NORMAL 20 Hz 200 Hz 0.775V 1V 1.44V BRIDGE PARALLEL... - Page 6 UNiKA S-4000/S-5000/S-6000 Set Up Introduction Front Panel Rear Panel Speakon Assembly Operating Modes Protection Features Specifications SET UP INPUTS - The S Series amplifier allows you to use two types of input connectors per channel, a XLR female jack for balanced connections and a 1/4”...
- Page 7 UNiKA S-4000/S-5000/S-6000 Set Up Introduction Front Panel Rear Panel Speakon Assembly Operating Modes Protection Features Specifications BANANA PLUG: (Figure 6) When connecting your speakers to the amplifier using banana plugs, be sure that the red and black caps on 1/5"...
- Page 8 UNiKA S-4000/S-5000/S-6000 Speakon Assembly Introduction Front Panel Rear Panel Set Up Operating Modes Protection Features Specifications SPEAKON ASSEMBLY: You will need a pair of Neutrik Speakon NL4FC connectors. You will also need high-quality two or four conductor Speakon cable, a pair of needle-nosed pliers and a 1.5-mm Allen key...
-
Page 9: Operating Modes
UNiKA S-4000/S-5000/S-6000 Operating Modes Introduction Front Panel Rear Panel Set Up Speakon Assembly Protection Features Specifications OPERATING MODES STEREO OPERATION : Page 8/ Figure 14 details an example of a typical stereo set-up. Connect your inputs into channels one and two of the amplifier. - Page 10 UNiKA S-4000/S-5000/S-6000 Operating Modes Introduction Front Panel Rear Panel Set Up Speakon Assembly Protection Features Specifications STEREO CH-1 Input Only S-4000 Rear Panel BRIDGE PARALLEL PUSH TO RESET FREQUENCY INPUT FREQUENCY STEREO GAIN NORMAL NORMAL 20 Hz 200 Hz 0.775V 1V 1.44V...
-
Page 11: Subwoofer Mode
Follow the set-up guides listed above to mix and match your operations. Do Not Use CH-1 Input STEREO NORMAL CH-2 Input S-4000 Rear Panel BRIDGE PARALLEL PUSH TO RESET FREQUENCY INPUT... -
Page 12: Protection
Front Panel Rear Panel Set Up Speakon Assembly Protection Features Specifications CH-2 CH-1 STEREO NORMAL NORMAL Input Input S-4000 Rear Panel BRIDGE PARALLEL PUSH TO RESET FREQUENCY INPUT FREQUENCY STEREO GAIN NORMAL NORMAL 20 Hz 200 Hz 0.775V 1V 1.44V... -
Page 13: Short Circuit Protection
UNiKA S-4000/S-5000/S-6000 Protection Introduction Front Panel Rear Panel Set Up Speakon Assembly Operating Modes Features Specifications PROTECTION LIMITER - The S Series amplifier comes with a built-in limiter. When the input signal overloads, the “CLIP LED” indicates a signal overload, at this time, the volume should be lowered to reduce distortion. -
Page 14: Amplifier Features
SWITCH-MODE POWER SUPPLY: The S Series amplifiers are designed with SMPS power with CLASS H (S-5000 & S-6000) and CLASS AB (S-4000) of Power Stage Topology instead of the traditional toroidal transformer, therefore the total weight of the amplifier is ultra-light, and also the complete performance is better. - Page 15 UNiKA S-4000/S-5000/S-6000 Introduction Specifications Front Panel Rear Panel Set Up Speakon Assembly Operating Modes Protection Features S-SERIES AMPLIFIER SPECIFICATIONS MODEL NO: S-4000 S-5000 S-6000 R.M.S. Output Power 2 Ch Driven 2ohms 1400W 2ohms 1800W 2ohms 2600W 2 ohms / 4 ohms / 8 ohms,...
