UNiK A
Professional Power Amplif iers
OFF
POWER
ON
MP-2800
LIMITER
ON
ON
LIMITER
PARALLEL
CLIP
CLIP
STEREO
PROFESSIONAL AMPLIFIER
SIGNAL
SIGNAL
BRIDGE
CHANNEL 1
0
10
0
10
CHANNEL 2
OFF
POWER
ON
LIMITER
ON
ON
LIMITER
PARALLEL
MP-4000
CLIP
CLIP
STEREO
PROFESSIONAL AMPLIFIER
SIGNAL
SIGNAL
BRIDGE
CHANNEL 1
CHANNEL 2
0
10
0
10
OFF
POWER
ON
LIMITER
ON
ON
LIMITER
PARALLEL
MP-5000
CLIP
CLIP
STEREO
PROFESSIONAL AMPLIFIER
SIGNAL
SIGNAL
BRIDGE
CHANNEL 1
0
10
0
10
CHANNEL 2
Index
02 Introduction
03 Front Panel
04 Rear Panel
05 Set Up
07 Speakon Assembly
08 Operating Modes
12 Protection
13 Features
14 Specifications
User Instructions
This booklet contains important information concerning the proper and safe operation of your new amplifier..
MP-Series
MP-2800 / MP-4000 / MP-5000
Made in Taiwan
Advertisement
Table of Contents
Related Manuals for Unika MP-2800
Summary of Contents for Unika MP-2800
- Page 1 CHANNEL 1 CHANNEL 2 This booklet contains important information concerning the proper and safe operation of your new amplifier.. Index MP-Series MP-2800 / MP-4000 / MP-5000 Made in Taiwan 02 Introduction 03 Front Panel 04 Rear Panel 05 Set Up...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS MP-2800/MP-4000/MP-5000 This symbol is intended to alert the user to the presence of This symbol is intended to alert the user of non insulated "dangerous voltage" within the product's the presence of important operating and CAUTION enclosure that may be of sufficient magnitude to constitute...
-
Page 3: Important Precautions
Features Specifications IMPORTANT PRECAUTIONS INTRODUCTION To reduce the risk of electrical shock or fire, do not expose this unit rain or Congratulations and thank you for purchasing MP-2800/MP-4000/MP-5000 moisture. amplifier. These amplifiers are representation of UNiKA’s continuing Do not spill water or other liquids into or on to your unit. -
Page 4: Front Panel

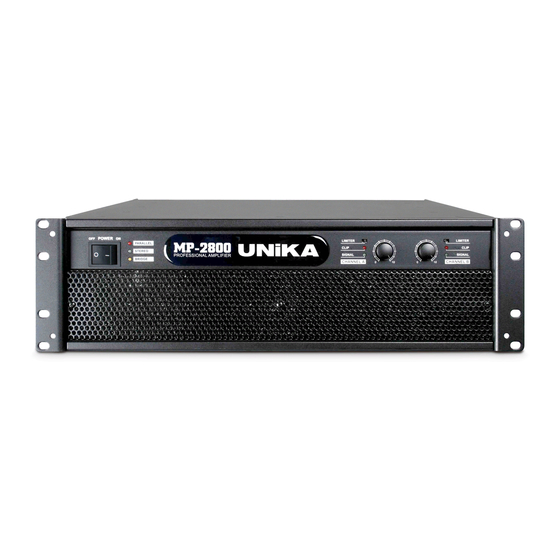

ACL (Active Clip Limiting) protection circuitry is engaged. 4. UNiKA Logo and Model No - MP series have 3 types of 3U Models MP-2800 9. Signal LED - Illuminates to indicate that a signal (above a minimum threshold) / MP-4000 / MP-5000. -
Page 5: Rear Panel
UNiKA MP-2800/MP-4000/MP-5000 Rear Panel Introduction Front Panel Set Up Speakon Assembly Operating Modes Protection Features Specifications MP-5000 REAR PANEL PUSH TO RESET FREQUENCY FREQUENCY STEREO BRIDGE PARALLEL NORMAL NORMAL WOOF WOOF 20 Hz 200 Hz 20 Hz 200 Hz CH-2... - Page 6 UNiKA MP-2800/MP-4000/MP-5000 Set Up Introduction Front Panel Rear Panel Speakon Assembly Operating Modes Protection Features Specifications SET UP INPUTS - MP-4000/MP-5000 amplifier allows you to use two types of input connectors per channel, a XLR female jack for MP-2800/ balanced connections and a 1/4” TRS female jack that will accept balanced and unbalanced connectors. Use these connections to connect the output signal from a mixer, cross-over or EQ to your MP-4000/MP-5000 amplifiers.
- Page 7 UNiKA MP-2800/MP-4000/MP-5000 Set Up Introduction Front Panel Rear Panel Speakon Assembly Operating Modes Protection Features Specifications BANANA PLUG: (Figure 6) When connecting your speakers to the amplifier using banana plug, be sure that the red and black caps on 1/5"...
-
Page 8: Speakon Assembly
UNiKA MP-2800/MP-4000/MP-5000 Speakon Assembly Introduction Front Panel Rear Panel Set Up Operating Modes Protection Features Specifications SPEAKON ASSEMBLY: You will need a pair of Neutrik Speakon NL4FC connectors. You will also need high-quality two or four conductor Speakon cable, a pair of needle-nosed pliers and a 1.5-mm Allen key... -
Page 9: Operating Modes
Never attempt to parallel the speaker outputs, this may cause serious damage to your amplifier! This mode is recommended when using the MP-2800/MP-4000/MP-5000 to run bass speakers, to achieve better low end. To run in parallel mono mode connect your system as you would if you were going to run in stereo mode. - Page 10 Operating Modes Introduction Front Panel Rear Panel Set Up Speakon Assembly Protection Features Specifications CH-1 Input STEREO BRIDGE PARALLEL Only MP-2800 Rear Panel PUSH TO RESET PUSH TO RESET FREQUENCY FREQUENCY FREQUENCY FREQUENCY STEREO STEREO BRIDGE BRIDGE PARALLEL PARALLEL NORMAL...
- Page 11 Follow the set up guides listed above to mix and match your operations. Do Not Use CH-1 Input STEREO BRIDGE PARALLEL CH-2 Input Set to Subwoof MP-2800 Rear Panel PUSH TO RESET PUSH TO RESET FREQUENCY FREQUENCY FREQUENCY FREQUENCY STEREO STEREO...
- Page 12 Set Up Speakon Assembly Protection Features Specifications CH-2 Input CH-1 Input STEREO BRIDGE PARALLEL Set to Set to Subwoof Subwoof MP-2800 Rear Panel PUSH TO RESET PUSH TO RESET FREQUENCY FREQUENCY FREQUENCY FREQUENCY STEREO STEREO BRIDGE BRIDGE PARALLEL PARALLEL NORMAL...
-
Page 13: Protection
THERMAL PROTECTION - Dual variable speed fans on the MP-2800/MP-4000/MP-5000 amplifiers provide adequate cooling. During low level output the fans run at normal speeds. During high output and as heat raises, (exceeding 90°C.), the fans will run at higher speeds to aid the cooling process. If the heatsink temperature exceeds 91°C., the amplifier will mute until the amplifier cools down. -
Page 14: Amplifier Features
UNiKA MP-2800/MP-4000/MP-5000 Protection Features Introduction Front Panel Rear Panel Set Up Speakon Assembly Operating Modes Specifications INPUT/OUTPUT PROTECTION - The input circuits are isolated by resistors. An ultrasonic network uncouples RF from the output and helps to keep the amplifier stable with reactive loads. -
Page 15: Specifications
UNiKA MP-2800/MP-4000/MP-5000 Specifications Introduction Front Panel Rear Panel Set Up Speakon Assembly Operating Modes Protection Features MP-SERIES AMPLIFIER SPECIFICATIONS MODEL NO. MP-2800 MP-4000 MP-5000 Output Power: 1200W RMS Stereo. 1600W RMS Stereo. 2400W RMS Stereo. 2 ohms, 1 Khz 1% THD 1000W RMS Stereo. - Page 16 UNiK A Professional Power Amplif iers...
