Index
02 Introduction
03 Front Panel
05 Rear Panel
07 Set Up
09 Speakon Assembly
10 Operating Modes
14 Protection
15 Features
16 Specifications
User Instructions
This booklet contains important information concerning the proper and safe operation of your new amplifier..
A-Series

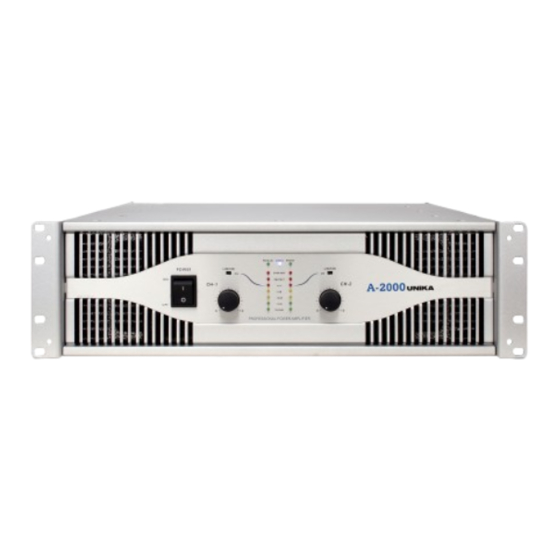

A-2000 / A-3000 / A-4000
Made in Taiwan
Advertisement
Table of Contents
Related Manuals for Unika A Series
Summary of Contents for Unika A Series
- Page 1 UNiK A Professional Power Amplif iers PARALLEL STEREO BRIDGE POWER LIMITER LIMITER PROTECT CH-A CH-B CLIP A-2000 UNiK A -5dB -10dB -20dB SIGNAL PROFESSIONAL POWER AMPLIFIER PARALLEL STEREO BRIDGE POWER LIMITER LIMITER PROTECT CLIP CH-A CH-B A-3000 UNiK A -5dB -10dB -20dB SIGNAL...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS A-2000/A-3000/A-4000 This symbol is intended to alert the user to the presence of This symbol is intended to alert the user of non insulated "dangerous voltage" within the product's the presence of important operating and CAUTION enclosure that may be of sufficient magnitude to constitute maintenance (servicing) instructions in the Do not open - a risk of electric shock to persons.
-
Page 3: Important Precautions
Congratulations and thank you for purchasing A-2000/A-3000/A-4000 or moisture. amplifier. These amplifiers are representation of UNiKA’s continuing Do not spill water or other liquids into or onto your unit. commitment to produce the best and highest quality audio products at an affordable price. - Page 4 UNiKA A-2000/A-3000/A-4000 Front Panel Introduction Rear Panels Set Up Speakon Assembly Operating Modes Protection Features Specifications A-2000 FRONT PANEL MONO STEREO BRIDGE POWER LIMITER LIMITER OVER HEAT PROTECT CLIP A-2000 CH-1 CH-2 UNiK A 10dB 15dB SIGNAL PROFESSIONAL POWER AMPLIFIER Figure 1.
- Page 5 15. Fan Inlet Grills and Filter - A Series amplifiers are cooled by two rear- 12. Channel 2 Clip Indicator - This red LED will begin to flash when the mounted fans. Cool air from front grills is filtered and flows over the channel begins to overload (clip), at this point the channel will begin to heatsinks and exhausts to back side.
- Page 6 UNiKA A-2000/A-3000/A-4000 Rear Panels Introduction Front Panel Set Up Speakon Assembly Operating Modes Protection Features Specifications A-2000 REAR PANEL PIN OUT PIN OUT CH- 2 CH- 1 BRIDGE POS NEG POS NEG POS NEG ~110V 50 Hz Figure 3 17. Fan Outlet Ports - Cooling air enters the amplifier through the front grills 23.
- Page 7 UNiKA A-2000/A-3000/A-4000 Rear Panels Introduction Front Panel Set Up Speakon Assembly Operating Modes Protection Features Specifications A-3000/A-4000 REAR PANEL PUSH TO RESET FREQUENCY FREQUENCY STEREO BRIDGE PARALLEL NORMAL NORMAL WOOF WOOF 20 Hz 200 Hz 20 Hz 200 Hz CH-2...
- Page 8 UNiKA A-2000/A-3000/A-4000 Set Up Introduction Front Panel Rear Panels Speakon Assembly Operating Modes Protection Features Specifications SET UP INPUTS - A-3000/A-4000 amplifiers allow you to use two types of input connectors per channel, a XLR female jack for balanced A-2000/ connections and a 1/4”...
- Page 9 UNiKA A-2000/A-3000/A-4000 Set Up Introduction Front Panel Rear Panels Speakon Assembly Operating Modes Protection Features Specifications BARE WIRE CONNECTIONS: (Figure 10) 1/5" When connecting your speakers to the amplifier using bare wire, unscrew the red and black caps on the binding 13mm post, be sure not to completely remove or unscrew the red and black caps.
- Page 10 UNiKA A-2000/A-3000/A-4000 Speakon Assembly Introduction Front Panel Rear Panels Set Up Operating Modes Protection Features Specifications SPEAKON ASSEMBLY: You will need a pair of Neutrik Speakon NL4FC connectors. You will also need high-quality two or four conductor Speakon cable, a pair of needle-nosed pliers and a 1.5-mm Allen key...
-
Page 11: Operating Modes
UNiKA A-2000/A-3000/A-4000 Operating Modes Introduction Front Panel Rear Panels Set Up Speakon Assembly Protection Features Specifications OPERATING MODES STEREO OPERATION : Page 10/ Figure 18 details an example of a typical stereo set-up. Connect your inputs into channels one and two of the amplifier. - Page 12 UNiKA A-2000/A-3000/A-4000 Operating Modes Introduction Front Panel Rear Panels Set Up Speakon Assembly Protection Features Specifications CH-1 Input STEREO BRIDGE PARALLEL Only A-3000 Rear Panel PUSH TO RESET FREQUENCY FREQUENCY STEREO BRIDGE PARALLEL NORMAL NORMAL WOOF WOOF 20 Hz 200 Hz...
-
Page 13: Subwoofer Mode
UNiKA A-2000/A-3000/A-4000 Operating Modes Introduction Front Panel Rear Panels Set Up Speakon Assembly Protection Features Specifications SUBWOOFER MODE : This mode sends low frequencies to your speakers without the use of an external cross-over. The subwoofer operation can be operated in stereo, parallel, or bridge mono modes. - Page 14 UNiKA A-2000/A-3000/A-4000 Operating Modes Introduction Front Panel Rear Panels Set Up Speakon Assembly Protection Features Specifications CH-2 Input CH-1 Input STEREO BRIDGE PARALLEL Set to Set to Subwoof Subwoof A-3000 Rear Panel PUSH TO RESET FREQUENCY FREQUENCY STEREO BRIDGE PARALLEL...
-
Page 15: Short Circuit Protection
THERMAL PROTECTION - Dual 2-speed fans on the amplifiers A series provide adequate cooling. During low level output the fans run at normal speeds. During high output and as heat raises, (exceeding 50°C.), the fans will run at higher speeds to aid the cooling process. If the heatsink temperature exceeds 91°C., the amplifier will mute until the amplifier cools down. - Page 16 UNiKA A-2000/A-3000/A-4000 Protection Features Introduction Front Panel Rear Panels Set Up Speakon Assembly Operating Modes Specifications INPUT/OUTPUT PROTECTION - The input circuits are isolated by resistors. An ultrasonic network uncouples RF from the output and helps to keep the amplifier stable with reactive loads.
-
Page 17: Specifications
