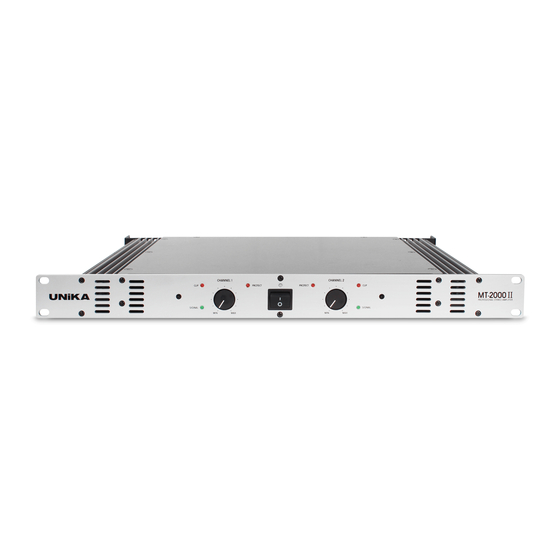

PROFESSIONAL STEREO AMPLIFIER
User Instructions
This booklet contains important information concerning the proper and safe operation of your new amplifier.
MT-Series
Made in Taiwan
MT-1000/2000II
Advertisement
Table of Contents
Related Manuals for Unika MT-1000
Summary of Contents for Unika MT-1000
- Page 1 UNiK A Professional Power Amplif iers CHANNEL 1 CHANNEL 2 PROTECT PROTECT MT-1000 CLIP CLIP SIGNAL SIGNAL CHANNEL 1 CHANNEL 2 CLIP PROTECT PROTECT CLIP MT-2000 II UNiK A PROFESSIONAL STEREO AMPLIFIER SIGNAL SIGNAL User Instructions This booklet contains important information concerning the proper and safe operation of your new amplifier.
- Page 2 UNiKA MT-1000/MT-2000II This symbol is intended to alert the user to the presence of This symbol is intended to alert the user of non insulated "dangerous voltage" within the product's the presence of important operating and CAUTION enclosure that may be of sufficient magnitude to constitute...
-
Page 3: Important Precautions
Features Specifications IMPORTANT PRECAUTIONS INTRODUCTION To reduce the risk of electrical shock or fire, do not expose this unit rain or Congratulations and thank you for purchasing MT-1000/MT-2000II moisture. amplifier. These amplifiers are representation of UNiKA’s continuing Do not spill water or other liquids into or on to your unit. -
Page 4: Front Panels
UNiKA MT-1000/MT-2000II Front Panels Important Precautions Introduction Rear Panels Set Up Operating Modes Protection Features Specifications MT-1000/2000II FRONT PANEL CHANNEL 1 CHANNEL 2 PROTECT PROTECT MT-1000 CLIP CLIP SIGNAL SIGNAL Figure 1 CHANNEL 1 CHANNEL 2 CLIP PROTECT PROTECT CLIP... -
Page 5: Rear Panels
XLR pin setting: Pin-2/signal positive, Pin-3/signal negative, Pin-1/ground. 19. Ground Lift Switch (MT-1000 only) - This switch is used to disconnect the For MT-2000II, it also allows to use Euroblock input connectors. Euroblock pin internal ground signal from the amplifier's chassis ground. - Page 6 INPUTS - The MT-1000 and MT-2000II amplifiers allow you to use two types of input connectors per channel, a XLR female jack for balanced connections and a 1/4” TRS female jack that will accept balanced and unbalanced connectors. Use these connections to connect the output signal from a mixer, cross-over or EQ to the MT-1000 and MT-2000II amplifiers.
- Page 7 UNiKA MT-1000/MT-2000II Set Up Important Precautions Introduction Front Panels Rear Panels Operating Modes Protection Features Specifications BANANA PLUG: (Figure 9) When connecting your speakers to the amplifier using banana plugs, be sure that the red and black caps on the binding post are completely screwed in. Insert the banana plugs into the caps of the binding post, be sure Figure that the banana plugs are inserted securely to avoid the risk of popping out.
-
Page 8: Mono Bridge Operation
UNiKA MT-1000/MT-2000II Operating Modes Important Precautions Introduction Front Panels Rear Panels Set Up Protection Features Specifications OPERATING MODES STEREO OPERATION : Page 7 / Figure 13 details an example of a typical stereo set-up. Connect your inputs into channels one and two of the amplifier. -
Page 9: Amplifier Features
“hissing” is heard from speakers with no music being played, this will ensure the lowest possible distortion during normal operation. AMPLIFIER FEATURES GROUND LIFT SWITCH (MT-1000 only) - Applying or lifting the ground switch will change level for background noise and hum, if the noise level remains the same in either position, better to keep the ground lift switch in the ground position. -
Page 10: Specifications
UNiKA MT-1000/MT-2000II Specifications Important Precautions Introduction Front Panels Rear Panels Set Up Operating Modes Protection Features SPECIFICATIONS M T- 1000 M T- 2000II R.M.S. Output Power 2 Ch Driven 4ohms 150W 4ohms 300W 4ohms/8ohms 1KHz 1% THD 8ohms 100W 8ohms 200W R.M.S. - Page 11 UNiKA MT-1000/MT-2000II Specifications Important Precautions Introduction Front Panels Rear Panels Set Up Operating Modes Protection Features page 10...
- Page 12 UNiK A Professional Power Amplif iers...
