6-8 C
HAPTER

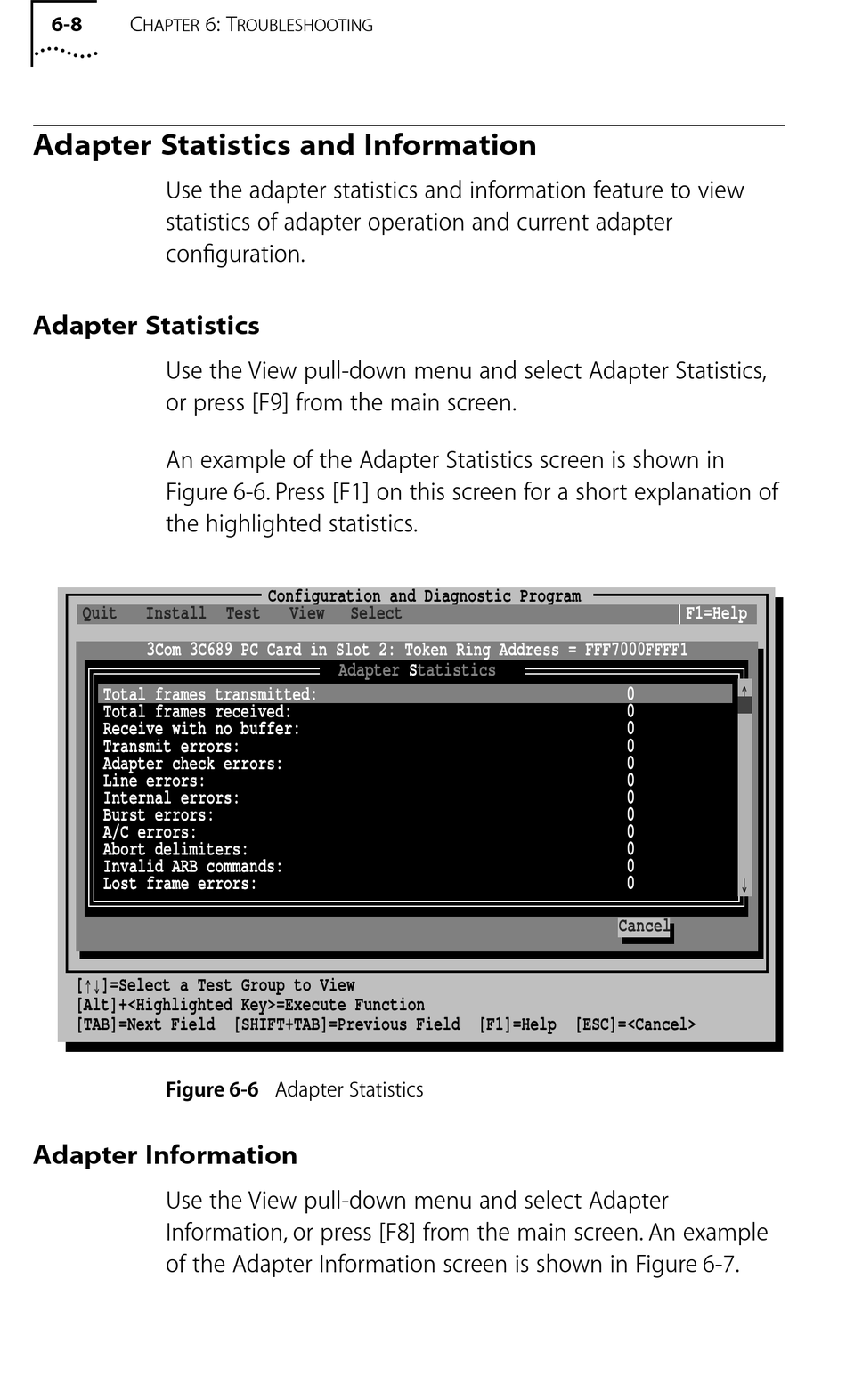

Adapter Statistics and Information

Use the adapter statistics and information feature to view
statistics of adapter operation and current adapter
configuration.

Adapter Statistics

Use the View pull-down menu and select Adapter Statistics,
or press [F9] from the main screen.
An example of the Adapter Statistics screen is shown in
Figure 6-6. Press [F1] on this screen for a short explanation of
the highlighted statistics.
Quit Install
3Com 3C689 PC Card in Slot 2: Token Ring Address = FFF7000FFFF1
Total frames transmitted:
Total frames received:
Receive with no buffer:
Transmit errors:
Adapter check errors:
Line errors:
Internal errors:
Burst errors:
A/C errors:
Abort delimiters:
Invalid ARB commands:
Lost frame errors:
-¯
[ ]=Select a Test Group to View
[Alt]+<Highlighted Key>=Execute Function
[TAB]=Next Field [SHIFT+TAB]=Previous Field [F1]=Help [ESC]=<Cancel>
Figure 6-6 Adapter Statistics

Adapter Information

Use the View pull-down menu and select Adapter
Information, or press [F8] from the main screen. An example
of the Adapter Information screen is shown in Figure 6-7.
6: T
ROUBLESHOOTING
Configuration and Diagnostic Program
Test View Select
Adapter Statistics
F1=Help
-
0
0
0
0
0
0
0
0
0
0
0
¯
0
Cancel
