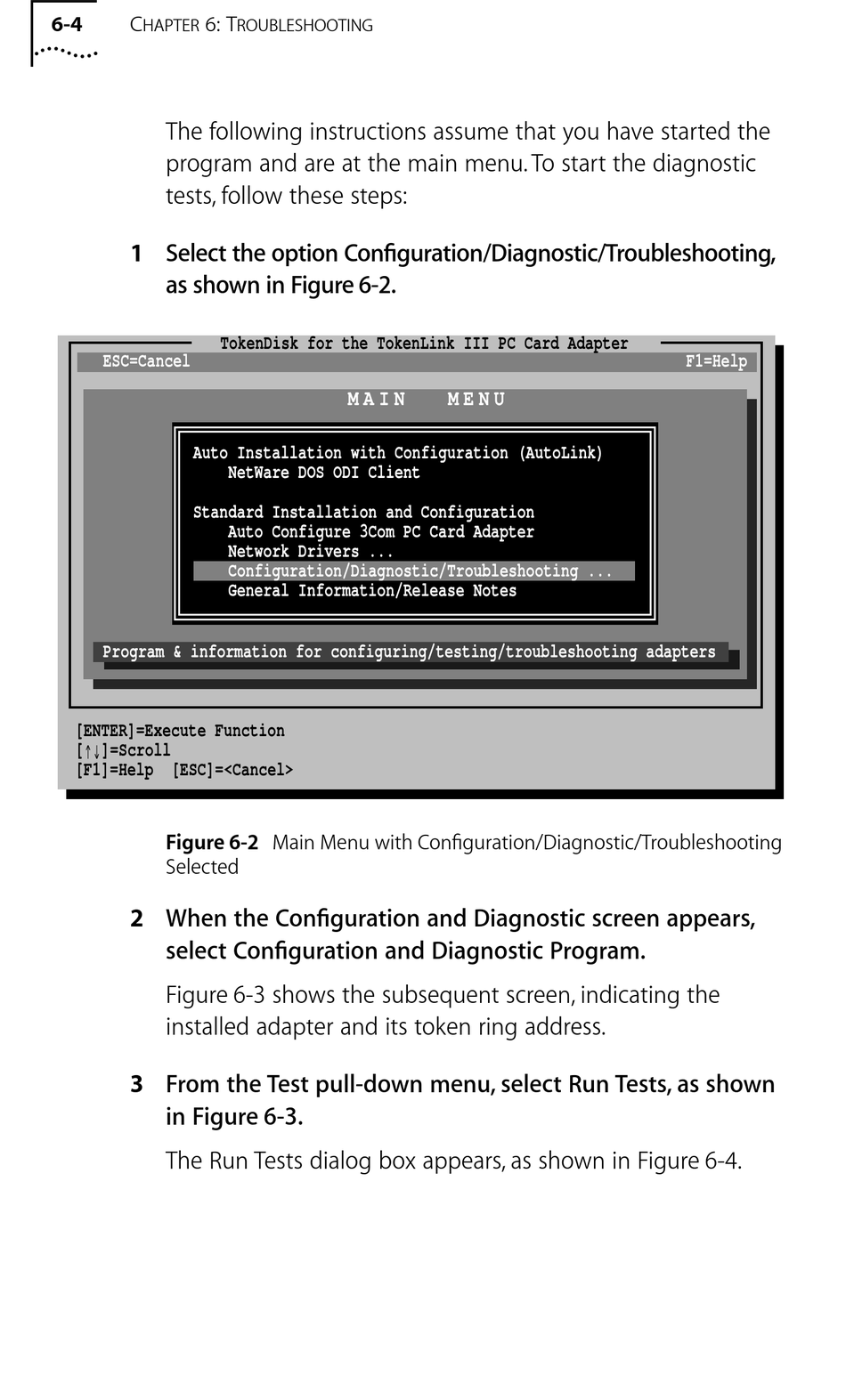

6-4 C 6: T
HAPTER
The following instructions assume that you have started the
program and are at the main menu. To start the diagnostic
tests, follow these steps:
1 Select the option Configuration/Diagnostic/Troubleshooting,
as shown in Figure 6-2.
ESC=Cancel
Auto Installation with Configuration (AutoLink)
Standard Installation and Configuration
Program & information for configuring/testing/troubleshooting adapters
[ENTER]=Execute Function
-¯
[ ]=Scroll
[F1]=Help [ESC]=<Cancel>
Figure 6-2 Main Menu with Configuration/Diagnostic/Troubleshooting
Selected
2 When the Configuration and Diagnostic screen appears,
select Configuration and Diagnostic Program.
Figure 6-3 shows the subsequent screen, indicating the
installed adapter and its token ring address.
3 From the Test pull-down menu, select Run Tests, as shown
in Figure 6-3.
The Run Tests dialog box appears, as shown in Figure 6-4.
ROUBLESHOOTING
TokenDisk for the TokenLink III PC Card Adapter
M A I N
NetWare DOS ODI Client
Auto Configure 3Com PC Card Adapter
Network Drivers ...
Configuration/Diagnostic/Troubleshooting ...
General Information/Release Notes
M E N U
F1=Help
