6-6 C
HAPTER
4 Press [Enter] to start the tests.
Each test is set up to run once unless you specify otherwise.
The test results are displayed on the screen with "Passed" or
"Failed" in the Results column.
If you want to run the tests continuously, select the
Continuous option in the Test Setup dialog box, as described
in the next section, "Changing the Test Setup."

Changing the Test Setup

If you want to change the test parameters, follow these
steps:
1 Choose the <Test Setup> command button in the Run
Tests dialog box shown in Figure 6-4.
The Test Setup dialog box appears, as shown in Figure 6-5.
Quit Install
Group Select
Group 1
Group 2
Repetitions
(.) [1
Continuous
Errors
[X] Halt on Error
-¯
[ ]=Select a Test Group to View
[Alt]+<Highlighted Key>=Execute Function
[TAB]=Next Field [SHIFT+TAB]=Previous Field [F1]=Help [ESC]=<Cancel>

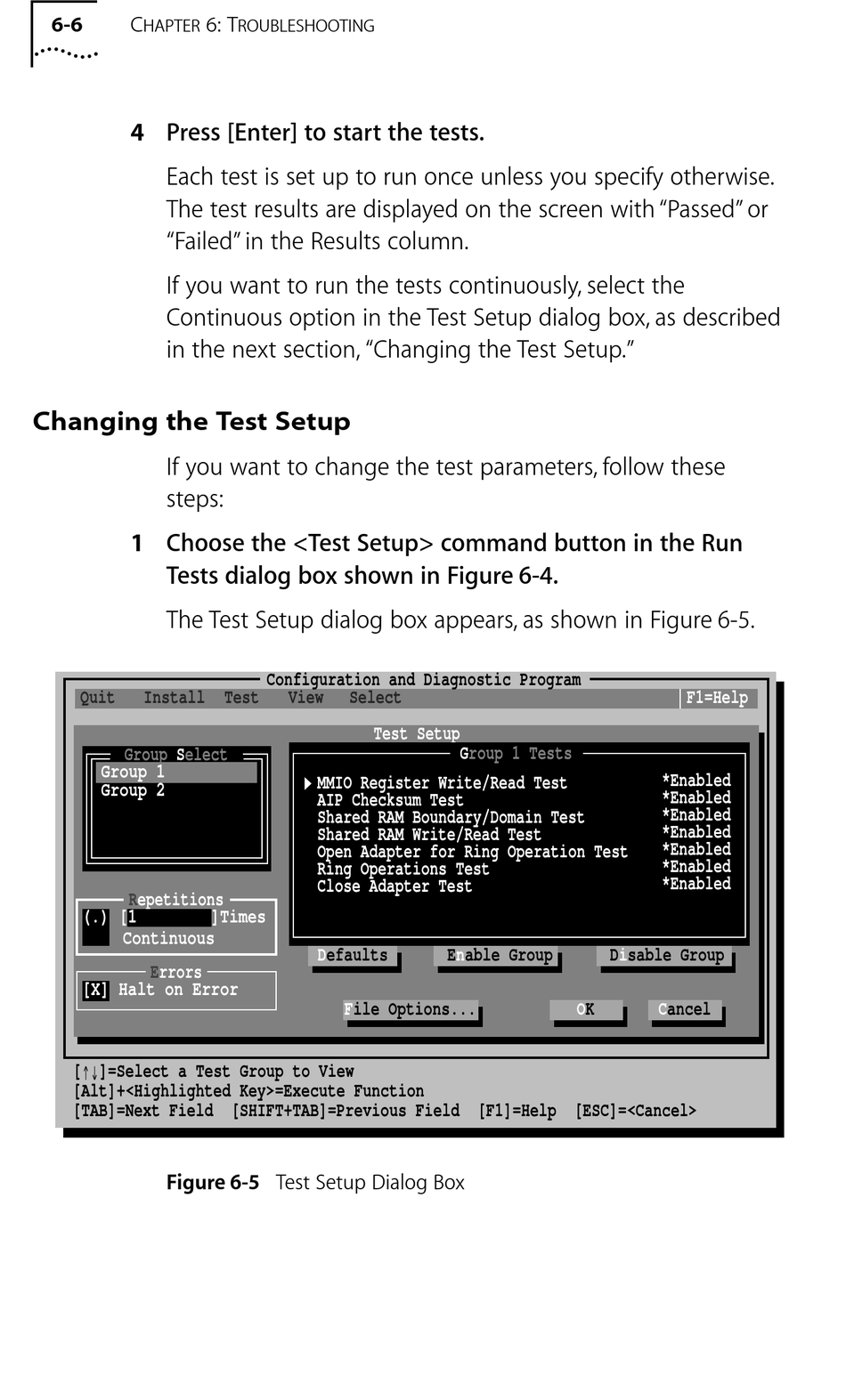

Figure 6-5 Test Setup Dialog Box
6: T
ROUBLESHOOTING
Configuration and Diagnostic Program
Test View Select
MMIO Register Write/Read Test
AIP Checksum Test
Shared RAM Boundary/Domain Test
Shared RAM Write/Read Test
Open Adapter for Ring Operation Test
Ring Operations Test
Close Adapter Test
]Times
Defaults
File Options...
Test Setup
Group 1 Tests
Enable Group
F1=Help
*Enabled
*Enabled
*Enabled
*Enabled
*Enabled
*Enabled
*Enabled
Disable Group
OK Cancel
