Rinstrum 400 Series Quick Start Manual

Summing indicator
Hide thumbs Also See for 400 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

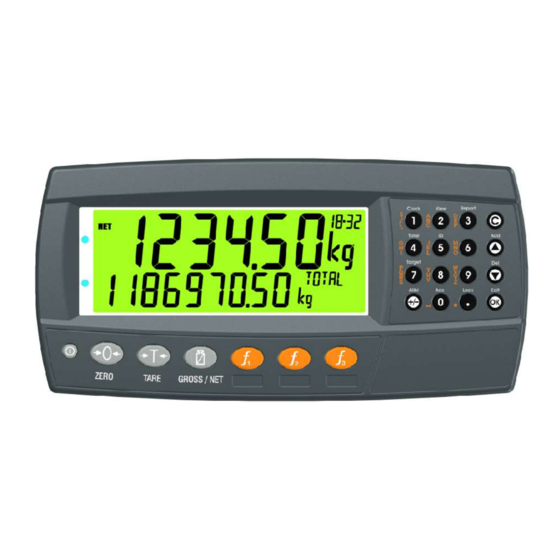

400 Series
(K481)
Summing Indicator
Quick Start Manual
RI00-619-100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 400 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rinstrum 400 Series

Summary of Contents for Rinstrum 400 Series

  • Page 1 400 Series (K481) Summing Indicator Quick Start Manual RI00-619-100...
  • Page 2 Rinstrum Pty Ltd. Disclaimer Rinstrum Pty Ltd reserves the right to make changes to the products contained in this manual in order to improve design, performance or reliability. The information in this manual is believed to be accurate in all respects at the time of publication, but is subject to change without notice.

  • Page 3: Table Of Contents

    Quick Start - Software Version 1.1x & 2.x Table of Contents 1. INTRODUCTION ............... 2 1.1. Manuals ................2 1.2. Shipping Contents ............2 2. SPECIFICATIONS ..............3 3. WARNINGS................4 3.1. General................4 3.2. Configuration Issues ............4 4. INSTALLATION ................ 5 4.1.

  • Page 4: Introduction

    Quick Start - Software Version 1.1x & 2.x 1. Introduction This manual contains information on the installation and setup of the Indicator. 1.1. Manuals For more information on the indicator refer to the Reference Manual and Operator Manual. 1.2. Shipping Contents The following table identifies the items shipped with indicators.

  • Page 5: Specifications

    Quick Start - Software Version 1.1x & 2.x Specifications Performance Operating Temperature: –10 to +50°C ambient Environment Humidity: <90% non-condensing Storage: –20 to +50°C ambient IP55 when panel mounted or with rear boot (otherwise IP40) Case Materials ABS, Silicon Rubber, Nylon, Acrylic (no halogen used) Packing Weights Basic Indicator: 0.6kg Digital...

  • Page 6: Warnings

    Quick Start - Software Version 1.1x & 2.x 3. Warnings 3.1. General • Indicator not to be subject to shock, excessive vibration or extremes of temperature (before or after installation). • Inputs are protected against electrical interference, but excessive levels of electro-magnetic radiation and RFI may affect the accuracy and stability.

  • Page 7: Installation

    Quick Start - Software Version 1.1x & 2.x Installation The following steps are required to set up the indicator. • Inspect indicator to ensure good condition. • Use connection diagrams to wire up serial summing, power and auxiliary cables as required. •...

  • Page 8: Optical Communications

    Quick Start - Software Version 1.1x & 2.x 4.4. Optical Communications A temporary infrared communications link can be established between the instrument and a PC using an optional cable. This connection can be used to transfer setup and calibration information from a PC or to download software upgrades.

  • Page 9: Connections

    Quick Start - Software Version 1.1x & 2.x Connections 5.1. Cable Connections All cable connections are made to the rear of the instrument using pluggable screw terminals. It is not necessary to tin the ends of the wires with solder or to add crimp ferrules to the wires, however, these techniques are compatible with the terminals.

  • Page 10: Auxiliary Connections

    Quick Start - Software Version 1.1x & 2.x 5.3.2. Summing R300 Indicators using RS232 Ring Network 5.4. Auxiliary Connections This section provides diagrams to illustrate the communication connections. Page 8 004R-625-110...
  • Page 11 Quick Start - Software Version 1.1x & 2.x 5.4.1. Direct Personal Computer Link (RX, TX GND) 5.4.2. Printer Connections (RXD/TXD, GND and DTR) 5.4.3. Remote Display using RS232 (TXD, GND) Refer to documentation supplied with the Remote Display for connection details. Connect RX on the Remote Display with TX on the instrument and connect the RS232 GND signals together.

  • Page 12: Connecting Shields

    Quick Start - Software Version 1.1x & 2.x 5.5. Connecting Shields To obtain full EMC or for RFI immunity, cable shields MUST be connected and the earth lug on the rear of the instrument must be grounded. This figure illustrates an example of possible connections. Also shown are the connecting cables restrained using cable ties fastened by screws into the rear of the unit.

  • Page 13: Regulatory Sealing Requirements

    Quick Start - Software Version 1.1x & 2.x 5.5.1. Cable Shield Connection and Earthing • Care should be taken when connecting shields to maximise EMC or RFI immunity and minimise earth loops and cross-talk (interference) between instruments. • For full EMC or for RFI immunity, termination of the cable shields at the earth lug is very important.

  • Page 14: Instrument Setup

    Quick Start - Software Version 1.1x & 2.x 6. Instrument Setup 6.1. Calibration Counter Within Setup there are a number of critical steps that can affect the legal for trade performance of the instrument. If any of these steps are altered, the trade certification of the scale could be voided.

  • Page 15: Exit Full Or Safe Setup

    Quick Start - Software Version 1.1x & 2.x Ensure the instrument is on. • Press and hold the <POWER> and <ZERO> keys simultaneously for two seconds. 6.4. Exit Full or Safe Setup To save settings, exit setup and return to the normal weighing mode using one of the following methods: •...

  • Page 16: K481 Summing Indicator Configuration

    Quick Start - Software Version 1.1x & 2.x 6.5.3. R420 Slave Configuration The slaves must be one of the following: • K401 Version 1.41 or greater • K402 Version 1.41 or greater • K481 Version 1.10 or greater • K491 Version 1.10 or greater Summing of K411s is not supported.
  • Page 17 Quick Start - Software Version 1.1x & 2.x • Set H.WARE:SERx.HW:BAUD to the same baud rate as all the slaves for the appropriate serial port • Set H.WARE:SERx.HW:PARITY to NONE for the appropriate serial port • Set H.WARE:SERx.HW:DATA to 8 for the appropriate serial port •...

  • Page 18: Using Menus

    Quick Start - Software Version 1.1x & 2.x “S.TOT n” will be used. The SER.SUM:S.TOT.n:SLV.ADD menu item configures the slaves that should be added to the sub total. For example setting it to 12 will add slaves 1 and 2 to the subtotal.

  • Page 19: Settings

    Quick Start - Software Version 1.1x & 2.x 6.8. Settings MENU DESCRIPTION GEN.OPT General Options Menu Operator language (ENGLISH, GERMAN, DUTCH, FRENCH, └ LANG ....POLISH, ITALIAN, SPANISH) Date Format (DD.MM.YY, DD.MM.YYYY, MM.DD.YY, └ DATE.F....MM.DD.YYYY, YY.MM.DD, YYYY.MM.DD) Pass Codes └...
  • Page 20 Quick Start - Software Version 1.1x & 2.x MENU DESCRIPTION PR.MOD, PR.SEL, NUM.PAD ALIBI Display Options └ DISP └ B.LIGHT..Backlight operation (ON, OFF) └ FREQ ....Display update frequency (1Hz, 2Hz, 3.3Hz, 5Hz, 10Hz) └ VIEW....Default View (PRODUCT, TOP, DUAL) User String Names └...
  • Page 21 Quick Start - Software Version 1.1x & 2.x MENU DESCRIPTION └ SER1.HW, SER 2.HW Serial Hardware Menus └ BAUD....Baud rate (_1200_ , _2400_ , _4800_ , _9600_ , _19200_ , _57600_) └ PARITY ...Port parity (NONE, EVEN, ODD) └ DATA ....Number of data bits (_8_ , _7_) └...
  • Page 22 Quick Start - Software Version 1.1x & 2.x MENU DESCRIPTION └ ANL.HW └ TYPE....Voltage or current selection (Current, Volt) └ CLIP....Output clip enable (NO, YES) └ FRC.OUT ..Force analog output test └ ANL.CAL Analog output calibration └ ADJ.LO ..Adjust low output (4mA or 0V) └...
  • Page 23 Quick Start - Software Version 1.1x & 2.x MENU DESCRIPTION SER.SUM Serial Summing menu └ SERIAL ....Summing serial port (SER1A, SER2A) └ PROTO....Summing protocol (RING, NORMAL) └ SLAVES ....Number of slaves (1 .. 9) └ SLAV.1..SLAV.n Slave sub menus └ NAME .....Name of each slave (Maximum 6 characters) └...
  • Page 24 Quick Start - Software Version 1.1x & 2.x MENU DESCRIPTION └ AUTO ....Print: Automatic Print (NO, YES) └ IL.TYPE ..Print: Interlock type (NONE, MOTION, I.LOCK, RET.Z) └ I.LOCK ....Print: Interlock (0 .. Fullscale) └ AUT.OUT ..Single: Auto Output (AUTO.1, AUTO.2) └...
  • Page 25 Quick Start - Software Version 1.1x & 2.x MENU DESCRIPTION PRINT Print Menu └ NUM ....Number of printouts (_1_ .. _2_) └ HEADER .....Header (String) └ FOOTER....Footer (String) └ PAGE Print Page Options └ WIDTH ....Page width (0 .. 250) └...
  • Page 26 Quick Start - Software Version 1.1x & 2.x MENU DESCRIPTION └ CUSTOM Custom Print Format Strings └ REC.PRN ...Record: Record printout string └ DOC.PRN ...Docket: Docket printout string └ EV.D.NEW..Docket: New docket string └ EV.D.END...Docket: End of docket string └ EV.P.NEW ..Docket: New product string └...
  • Page 27 Quick Start - Software Version 1.1x & 2.x MENU DESCRIPTION ANL.OUT Analog Output Menu └ ABS .....Use absolute weight (NO, YES) └ RANGE....Weight range (FULLSCALE, CUSTOM) └ WGT.LO ....Weight at 0V or 4mA (-999999 .. 999999) └ WGT.HI....Weight at 10V or 20mA (-999999 ..

  • Page 28: Accessory Modules

    Quick Start - Software Version 1.1x & 2.x Accessory Modules 7.1. General There are many accessory modules which can be used with the indicator. CAUTION Instrument should be switched off before connecting or disconnecting accessory modules. Accessory modules provide additional features such as: •...

  • Page 29: Inputs

    Quick Start - Software Version 1.1x & 2.x 7.2. Inputs There are several accessory modules which provide inputs. Examples are M4301, M4302 and M4401. Some modules provide I/O which can be inputs or outputs depending on configuration. 7.2.1. Configuration The instrument has up to 8 special functions. The type of each function is chosen from a list of options.

  • Page 30: Outputs

    Quick Start - Software Version 1.1x & 2.x 7.3. Outputs There are several accessory modules which provide outputs. Examples are M4301 and M4401. Some modules provide I/O which can be inputs or outputs depending on configuration. 7.3.1. Configuration The instrument has up to 8 setpoint outputs. The type of each setpoint is chosen from a list of options.

  • Page 31: Analog Output

    Quick Start - Software Version 1.1x & 2.x 7.4. Analog Output Accessory modules provide analog outputs. An example is the M4401. 7.4.1. Configuration The instrument can only use a single analog output. Voltage or current output must be chosen. Other settings will function without alteration although they may be customised.

  • Page 32: Ethernet Module

    Quick Start - Software Version 1.1x & 2.x 1. Ensure module is connected and instrument is switched on. 2. Enter safe setup (or full setup) and go to the HDWARE: SER2.HW (Serial Port 2 Hardware) menu. 3. HDWARE:SER2.HW: Configure settings for the port. For example, set the baud rate, parity, data and stop bits.
  • Page 33 Quick Start - Software Version 1.1x & 2.x 3. HDWARE:ETH.HW: Configure settings for the module. DHCP is often sufficient, however you should obtain correct settings from your network administrator. 4. Application Settings: These settings are identical to the communication module discussed in Section Error! Reference source not found..

  • Page 34: Error Messages

    Quick Start - Software Version 1.1x & 2.x 8. Error Messages Error messages may be displayed to warn of operation outside of the acceptable limits. Short messages (XXXXXX) will appear as a single message. Longer messages (XXXXXX) (YYYYYY) will appear on the display in two parts, first the (XXXXXX) part, then the (YYYYYY) part.
  • Page 35 Quick Start - Software Version 1.1x & 2.x 8.1.1. Summing Errors Error Description No Resp One or more slaves are not responding. Slave will be shown in the bottom right display. Hdr Adr The address in the command header is bad (ie can't be parsed) Hdr Cmd The command in the command header is bad (ie...

  • Page 36: Setup Errors

    Quick Start - Software Version 1.1x & 2.x 8.2. Setup Errors These errors that may occur during the instrument setup. Error Description Resolution (ENTRY) When accessing setup, Turn the instrument (DENIED) more than three off and on, then enter attempts have been the correct passcode made with the incorrect to access setup.
  • Page 37 Notes...
