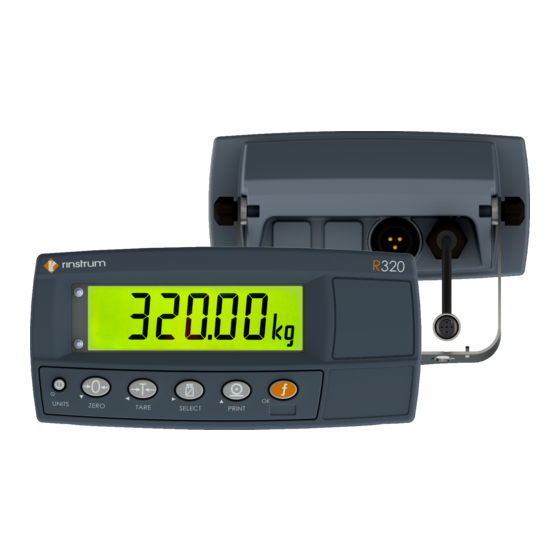

- Page 1 R300 Series (R310, R320 and R321) Digital Indicator Quick Start Manual For use with Software Versions 1.1 and above R300-602-150...
- Page 2 Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 Copyright All Rights Reserved. No part of this document may be copied, reproduced, republished, uploaded, posted, transmitted, distributed, stored in or introduced into a retrieval system in any form, or by any means (electronic, mechanical, photocopying, recording or otherwise) whatsoever without prior written permission of Rinstrum Pty Ltd.
-
Page 3: Table Of Contents
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 Table of Contents 1. INTRODUCTION ..............4 1.1. Approvals ..............4 1.2. Manuals............... 4 2. SHIPPING CONTENTS............4 3. SPECIFICATIONS............... 5 4. WARNINGS................. 6 4.1. General ............... 6 4.2. Configuration Issues............ 6 5. -
Page 4: Introduction
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 1. Introduction This manual contains information on the installation, calibration and setup of the R310, R320 and R321. Any reference to the R320 also includes the R321. Where all instruments are being described they will be referred to as the R300 Series. -
Page 5: Specifications
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 Specifications Performance Resolution Up to 30,000 divisions, minimum of 0.25µV/division, 20 updates/second (Trade 4000 divisions at 0.8µV/division) Zero Cancellation ±2.0mV/V Span Adjustment 0.1mV/V to 3.0mV/V full scale Stability/Drift Zero: < 0.1µV/°C (+ 8ppm of deadload max) Span <... -
Page 6: Warnings
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 Warnings 4.1. General • Indicator not to be subject to shock, excessive vibration or extremes of temperature (before or after installation). • Inputs are protected against electrical interference, but excessive levels of electro-magnetic radiation and RFI may affect the accuracy and stability. -
Page 7: Electrical Safety
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 5.1. Electrical Safety • For your protection all mains electrical hardware must be rated for environmental conditions of use. • Pluggable equipment must be installed near an easily accessible power socket outlet. -
Page 8: Rin-Link
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 5.4. rin-LINK The optional rin-LINK cable can be used to transfer setup and calibration information from a PC (eg. to be stored for later use and/or transferred to other instruments). It can also be used to download software upgrades to the instrument from a PC. -
Page 9: Connections
6.3. Load Cell Connection The R300 Series units may be connected for either 4-wire or 6- wire operation. For more information, refer to BUILD:CABLE setting page 20. - Page 10 Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 6.3.1. 4-Wire Connection The minimum connectivity requirements are the connection of four wires (ie. Excitation + and – along with Signal + and –). The BUILD:CABLE option must be set to 4 to allow for 4-wire connection.
-
Page 11: Auxiliary Connections (R320 Only)
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 6.4. Auxiliary Connections (R320 only) This section provides diagrams to illustrate the R320 terminal connections. 6.4.1. Direct Personal Computer Link (RXD, TXD, GND) RS-232 - R320 to PC using COM Port (DB9) - Page 12 Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 6.4.2. Printer Connections (RXD/TXD, GND and DTR) RS-232 - R320 to Printer (DB25) 6.4.3. Remote Display (TXD, GND) • Connect TXD to RXD and GND to GND on the remote display.
- Page 13 Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 6.4.4. Remote Input • The indicator requires a voltage free contact between TXD and RXD to enable the remote input (ie. SPEC:REM.FN). Note: The remote input will not function when in setup or when using the rin-LINK.
- Page 14 Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 R320 Outputs to Drive Relay R320 Outputs to Drive PLC Page 14...
-
Page 15: Connecting Shields
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 6.5. Connecting Shields To obtain full EMC or for RFI immunity, cable shields MUST be connected to the earth lug on the rear of the instrument. This figure shows the connecting cables restrained using cable ties fastened around the cable strain relief anchors. -
Page 16: Regulatory Sealing Requirements
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 6.6. Regulatory Sealing Requirements To comply with regulatory sealing requirements for each instrument, (ie. to ensure instruments are not accidentally or deliberately tampered with), it is important that proper sealing procedures be adhered to. - Page 17 Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 6.6.2. R321 Sealing Affix stickers in the locations indicated. For the R321, affix the sealing stickers to the rear of the instrument over one or more screws in the locations indicated.
-
Page 18: Instrument Setup
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 7. Instrument Setup 7.1. Calibration Counter The R300 Series built-in calibration counter(s) monitor the number of times trade critical settings are altered. Refer to Trade Critical Settings below for more information and to the OPTION:USE setting page20. -
Page 19: Access Full Setup
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 7.3. Access Full Setup Full Setup provides access to configure and calibrate the instrument. All items in all menus will be enabled in Full Setup. WARNING: Care should be taken to avoid inadvertently altering the Build or Calibration settings. -
Page 26: Error Messages
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 Error Messages 8.1. Weighing Errors • Check Setup = This item can be checked on site by service personnel Error Description Resolution (U - - - - -) The weight is below the... -
Page 27: Setup And Calibration Errors
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 8.2. Setup and Calibration Errors Error Description Resolution The instrument may be in Access Full Setup to edit the (ENTRY) Safe Setup and an item item. (DENIED) that needs Full Setup has been selected for editing. -
Page 28: Diagnostic Errors
Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 8.3. Diagnostic Errors • Check: This item can be checked on site by service personnel. • Return for Service: The instrument must be returned to the manufacturer for factory service. - Page 29 Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 Notes: Page 29...
- Page 30 Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 Notes: Page 30...
- Page 31 Rinstrum - R300 Series Digital Indicator Quick Start Manual Rev 1.5 Notes: Page 31...
