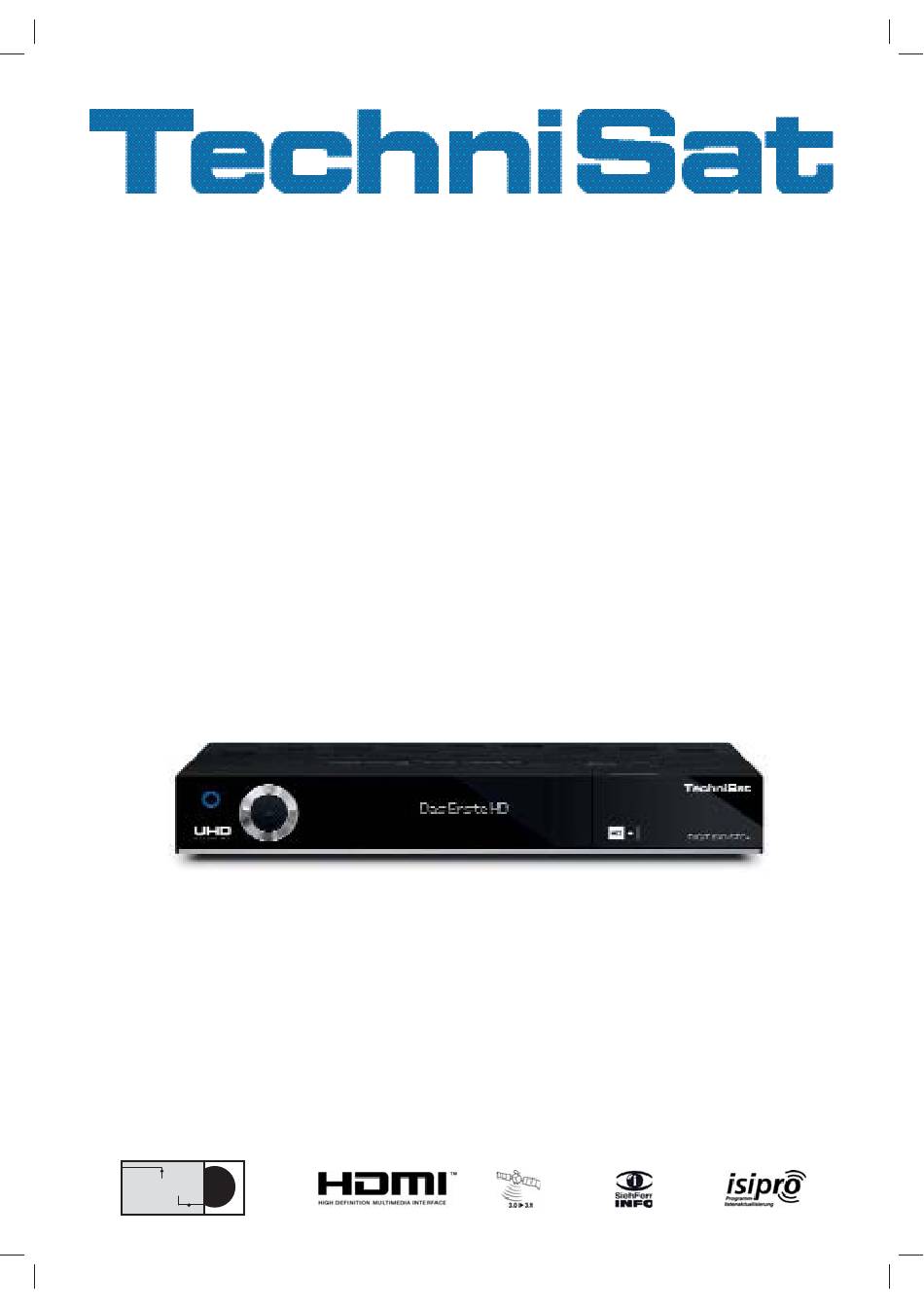

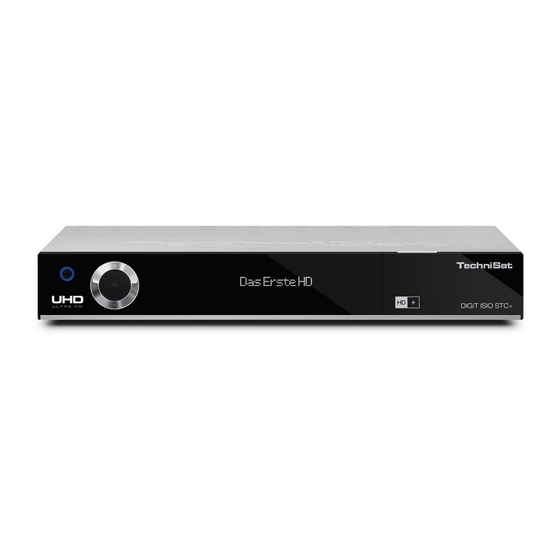

- Page 1 Quick start manual DIGIT ISIO STC DIGIT ISIO STC+ Digital Multituner-UHD Receiver With Internet access With CONAX / NAGRAVISION card reader and an interface for incorporating a CI / CI+ module, and DVR recording function via the USB interface or the home network.
-
Page 2: Dear Customer
For this reason, you should occasionally visit the TechniSat homepage, to download the latest version of the operating manual. We hope you enjoy your TechniSat DIGIT ISIO STC / DIGIT ISIO STC+ ! Your TechniSat Team... - Page 3 TechniSat hereby declares that the DIGIT ISIO STC / DIGIT ISIO STC+ is compliant with the basic requirements and other relevant provisions of the 1999 / 5 / EC directive. The declaration of conformity can be found at the following address: http://www.technisat.com/de_DE/konformitaetserklaerung/?productID=10861...
- Page 4 1 Illustrations On / standby Sleep Timer Remote control code Sound on / off Numeric keypad keys Recording TV / Radio mode Stop / DVR Rewind Fast forward Pause / Playback Arrow keys Page up Page down Back Info Options selection Channel + / - Volume + / - Function selection...
- Page 5 Front of TV Display USB port On / standby Arrow keys SD / MMC card reader Inserting the CONAX / NAGRAVISION (HD+) smartcard: > Insert the CONAX / NAGRAVISION (HD+) smartcard (gold chip facing down and to the front as you insert it) and push it in as far as it will go. Inserting the CI / CI+ module: >...
-
Page 6: Please Read This First
Before connecting and using the device, first check that everything has been supplied and familiarise yourself with the safety instructions. Included within the scope of supply for the DIGIT ISIO STC / DIGIT ISIO STC+: 1 digital receiver, 1 quick start guide, 1 CD-ROM, 1 remote control, 1 power supply, batteries (2x 1.5V microcells) -
Page 7: Periods Of Non-Use
Do not open the device under any circumstances! You risk receiving an electric shock. Any necessary repairs to the receiver should only be carried out by qualified service personnel. In the following circumstances, you should disconnect the device from the mains power and consult an expert: >... -
Page 8: Disposal Advice
Before handing your receiver over to your supplier for maintenance purposes, we recommend that you remove all storage media or data carriers. The recovery of data is not part of the maintenance and repair work. TechniSat assumes no warranty for the loss or damage of data during the repair. -
Page 9: Optional Accessories
3 Optional accessories 3.1 Optional IsiZapper remote control IsiZapper (Item No. 0000 / 3773) is an optional remote control that is specially designed for operation in ISI mode (see Point 16). On / standby Numeric keypad keys Sound on / off Teletext Function selection Arrow keys... -
Page 10: Connecting The Dvb Receiver
4 Connecting the DVB receiver Network connection Connecting the LNB 1 to the LNB input 1 of the DVB receiver. (Please note: The LNB must be connected with the LNB Input 1 when operating using an antenna signal.) Connecting the LNB 2 to the LNB input 2 on the DVB receiver. HDMI connection from the DVB receiver to the TV. -
Page 11: Mains Power Connection
4.1 Mains power connection The digital receiver should only be connected to the mains power supply once you have finished making all the connections to the various other components. This will prevent damage to the digital receiver or other components. Once you have made all the other connections in accordance with the following sections, use the mains adapter supplied to connect the receiver to a 230 V / 50-60 Hz mains power outlet. -
Page 12: Hi-Fi / Surround Sound Amplifier
4.4 Hi-fi / surround sound amplifier To achieve the best possible sound quality, you can connect your digital receiver to a hi-fi / surround sound amplifier. 4.4.1 Digital If your amplifier has an appropriate electrical or optical input, connect the electrical or optical DIGITAL AUDIO OUT socket to the electrical or optical input on your amplifier. - Page 13 4.7 Network port (RJ45) You can use the network port to connect the receiver to your existing network. This allows you to use the watchmi and Internet functions, UPnP functions, access to network drives and the program provider's HbbTV applications. Furthermore, this enables you to record to and playback from network drives.
-
Page 14: Basic Operation
5 Basic operation Dear Customer The following section starts by covering basic operation as well as recurrent operating steps for the TV. This should make it easier to read the instruction manual, since it avoids repeated description of identical steps at each individual stage. If a function or setting for the device has to be different from the basic operation, the difference in operation is described in detail at the relevant point in the instruction manual. - Page 15 5.2 Calling up the main menu and navigating through the menus / functions The following example will illustrate how you reach the main menu and call up a submenu. The objective of the example is to call up the Picture settings menu. Press the Menu button.
- Page 16 Now use the up / down arrow keys to highlight the Picture settings item. > The Picture settings menu is opened by then pressing the OK button. > You can also highlight the individual menu points in the same way as you highlight an item on a submenu to open it and alter the respective settings.
-
Page 17: Changing A Setting
5.3 Accepting settings / Exiting menus and functions In some menus and functions the changes made must be accepted manually in order to save them permanently. If this does not happen, the function or the values that existed before the change was made will be reset automatically on exiting the menu. If an Accept field or the green function key with Accept is displayed in the bottom line of the screen, you can see that the changes made must be saved manually to be accepted. -
Page 18: Selection List
5.4.1 Arrow selection method > is shown on the left and on the right next to the set value, you can alter this using the left / right arrow keys. 5.4.2 Selection list is shown on the right next to the set value, the value can be changed using the selection list. -
Page 19: Entering Numbers
5.4.3 Entering numbers Enter the new setting you want using the numeric keypad key if a question mark > or a number value is shown inside the highlight. 5.4.4 Virtual keyboard is shown on the right next to the set value, the value can be changed using the selection list. -
Page 20: Options Selection
Press one of the numeric keypad keys 0 - 9, to select the various letters, > numbers, characters and symbols. After the initial pressing of a numeric keypad key, the first letter of the corresponding character sequence is highlighted. > The highlight then moves one field to the right for every additional press of the same numeric pad key.
