Summary of Contents for Emerson SmartPower 701P

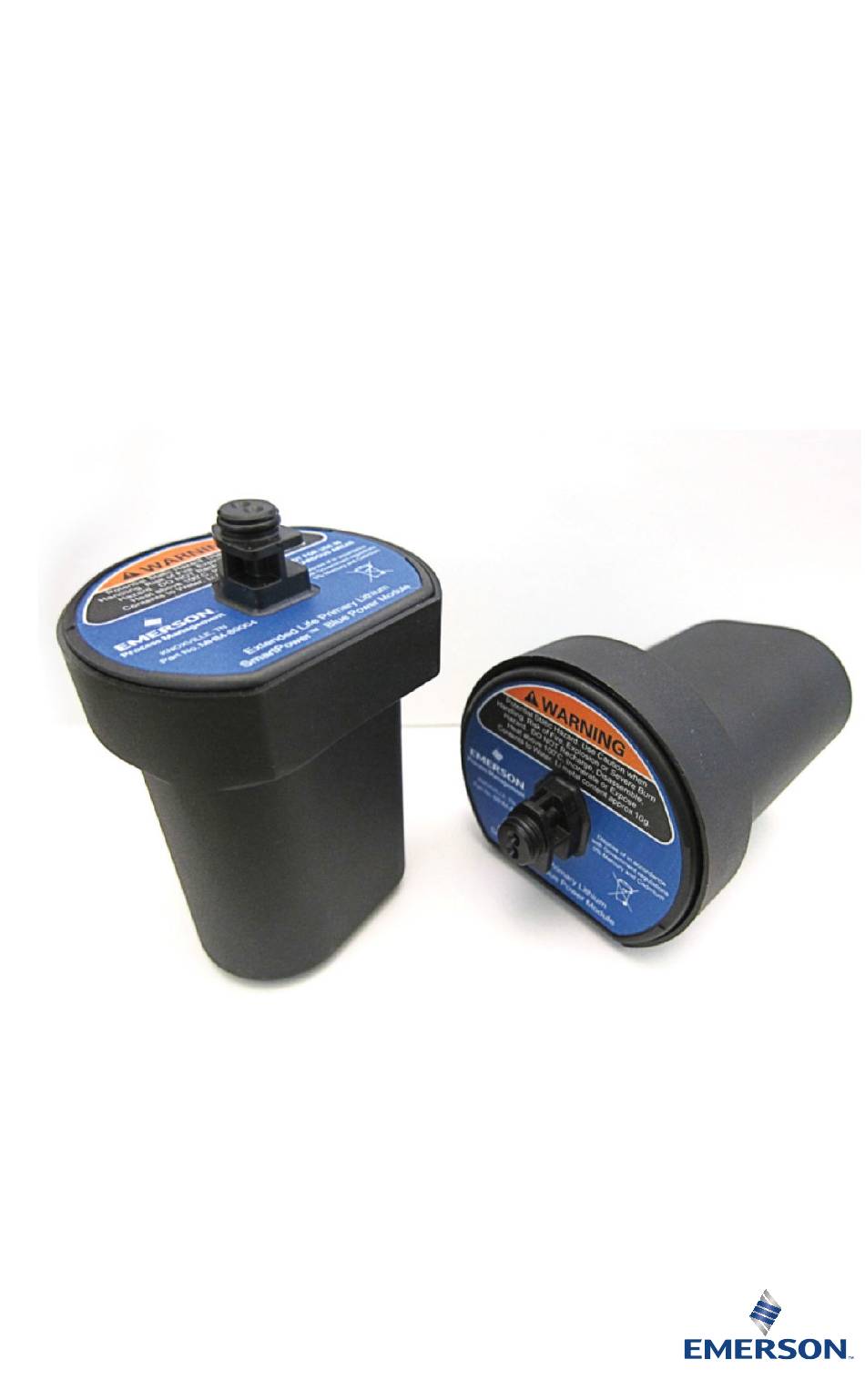

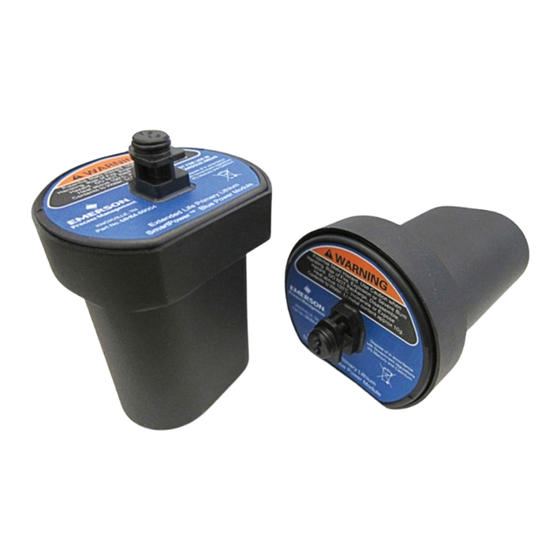

- Page 1 Quick Start Guide MHM-97913-CC-PBF-EN, Rev 2 March 2023 Emerson A0701PBU ™ ™ Emerson 701P SmartPower Module - Blue...
-
Page 2: Table Of Contents
Emerson. The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are the property of their respective owners. -
Page 3: Document Scope
Part Number MHM-89004) is an extended life power module, with a broad field of applications. It can be used to provide long-lasting power to many of Emerson's wireless transmitters including models 3051S, 648, 702, 705, 2160, and 9420. Use this guide to install or replace the power module in any of these transmitters—they share the same enclosure, enclosure thread, and... - Page 4 Quick Start Guide March 2023 WARNING • Explosions could result in death or serious injury. • Installation of this power module in an explosive environment must be in accordance with the appropriate local, national, and international standards, codes, and practices. Please review Product Certifications for any restrictions associated with a safe installation.
-
Page 5: Label And Date Of Manufacture
March 2023 Quick Start Guide Label and date of manufacture The date of manufacture of a power module is indicated on a white label as shown in Figure 2-1. The example manufacturing date code 4915 represents the date of manufacture is the 49 week of 2015. -
Page 6: Warnings On Product Labels
March 2023 Warnings on product labels The Emerson power modules have a warning printed on them. The text of the warning is: “WARNING Potential Static Hazard, Use Caution when Handling. Risk of Fire, Explosion or Severe Burn Hazard. DO NOT Recharge, Disassemble, Heat above 100 °C, Incinerate or Expose Contents to... -
Page 7: Physical Installation
(4.5 in / 115 mm). Procedure 1. Inspect the power module for any obvious signs of damage. Emerson's SmartPower Power Modules are designed to be rugged. The product design has been tested in environmental conditions such as extreme temperature, pressure, vibration and shock. In testing, it also was dropped repeatedly from 3m height without leading to an unsafe operating condition. - Page 8 Figure 4-1: Blue Power Module (A0701PBU) connects using a keyed connection on the wireless device. Note Power up wireless devices in order of proximity from the Emerson Wireless Gateway, beginning with the closest. This will result in a simpler and faster network installation.
-
Page 9: Verify Operation
Quick Start Guide Verify Operation Operation can be verified in four locations: by using the Field Communicator, at the Gateway via the Emerson Wireless Gateway’s integrated web server, via AMS Wireless Configurator, or with the wireless device’s LCD display. Field Communicator... - Page 10 If not, contact Product Support. Note Contact Product Support regarding any issues or concerns with the power module. POWER MODULES SHOULD NOT BE RETURNED TO EMERSON (unless dictated by local laws). The nominal voltage for a new Blue Power Module (A0701PBU) is 7.2V. The supply voltage as reported by the transmitter should normally read above 7.0V at room temperature upon initial installation.
-
Page 11: Disposal Or Recycling Of Depleted Power Modules
March 2023 Quick Start Guide Disposal or recycling of depleted power modules 1. Dispose in accordance with applicable laws and regulations in your country and state. 2. Disposal should only be performed by authorized professionals in accordance with applicable requirements for hazardous waste transportation and disposal. -
Page 12: Product Certifications
The most recent revision of the EC Declaration of Conformity can be found at www.emerson.com. 7.1.1 ATEX directive (2014/34/EU) Emerson Process Management complies with the ATEX Directive. 7.1.2 Electro Magnetic Compatibility (EMC) (2014/30/EU) Emerson Process Management complies with the EMC Directive. - Page 13 This condition of use does not apply after a power module is installed within a wireless transmitter enclosure. Compatibility The Blue Power Module (A0701PBU) is compatible with most other Emerson wireless transmitters that use a power module. It has been certified intrinsically safe as indicated here; however, always refer to the individual certification requirements for each product to determine whether it is suitable for installation and in which environments.
- Page 14 Quick Start Guide March 2023 Service Life Power module life is mainly a function of the wireless update rate. Faster wireless update rates, as well as acquisition of specialized data such as vibration spectra and waveforms, will decrease power module life. Power module life is further affected by extreme temperature service and wireless network conditions.
-
Page 15: Declaration Of Conformity
March 2023 Quick Start Guide Declaration of Conformity Quick Start Guide... - Page 16 Quick Start Guide March 2023 MHM-97913-CC-PBF-EN, Rev 2...
- Page 17 March 2023 Quick Start Guide Quick Start Guide...
- Page 18 We reserve the right to modify or improve the designs or specifications of our products at any time without notice. All rights reserved. AMS is a mark of one of the Emerson group of companies. The Emerson logo is a trademark and service mark of Emerson...
