INSTALLATION AND SET-UP
1.
Check for Shipping Damage: Check the packaging and cabinet for shipping damage before and after unloading the unit, and after
removing all the packaging.
2.
The receiver of this product is responsible for filing freight damage claims. This equipment must be opened immediately for
inspection. All visible damage must be reported to the freight company within 48 hours and must be noted on freight bill at the time
of delivery.
3.
Concealed damage is your responsibility — you must advise the carrier of any loss or damage within 15 days after receipt of the
cabinet. If there is damage, retain the original packaging for inspectors.
4.
After unpacking the cabinet, remove all tape and packing material from the inside as well as outside of the unit.
5.
Any protective covers (plastic or paper sheet) on the sheet metal or clear door(s), if applicable, must also be removed before
turning the cabinet on.
WARNING: Only factory approved service agents should attempt to service, repair or replace electrical components,
wiring or the power cord.
6.
The power cord can be installed to exit the back of the cabinet for wall outlets or out the top of the cabinet for ceiling power drops.
To change the position of the power cord, first make sure the cabinet power switch is off and the power cord is unplugged from any
electrical outlet. Remove the (7) screws holding the cabinet top in place. Lift the rear portion of the cabinet top and slide it
away from under the front control bezel, removing it from the cabinet. Remove the (2) screws on the rear of the cabinet that hold the
cord bracket in place. Rotate the power cord bracket 90° to the desired position and reattach it with the (2) screws to the back of the
cabinet. Make sure the green ground wire connection and the wire nuts on the black and white wires have not loosened. Do not alter
the wiring of the power cord to the cabinet. Replace the cabinet top and the (7) screws holding it in place.

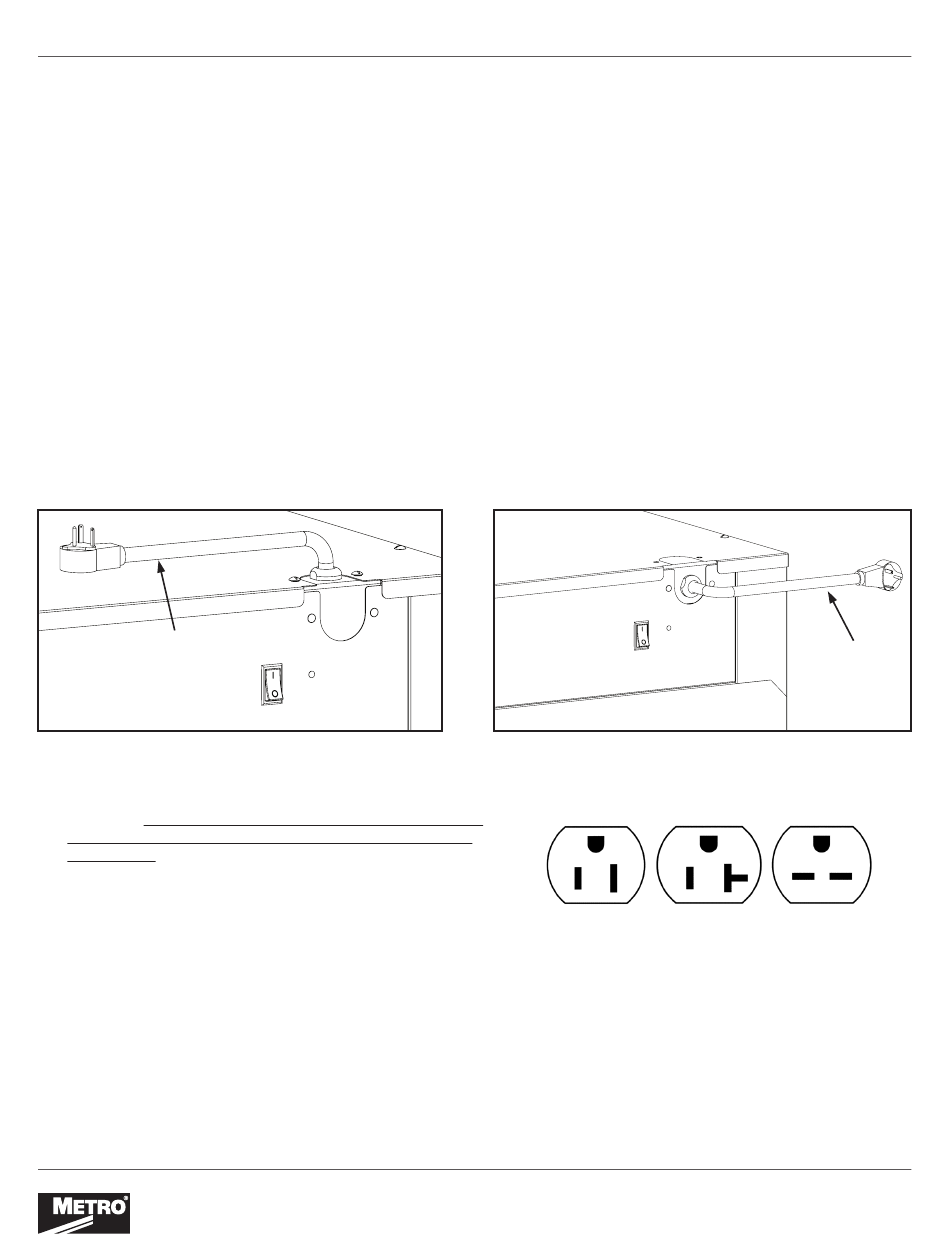

Cord out
of the top
7.
Refer to the data plate located near the power cord for the
electrical specifications of cabinet. With the POWER switch
OFF, plug the cord into the appropriate rated, grounded
receptacle. Cabinets rated at 120V 2000W must be plugged into
125VAC 20 amp receptacle and must be used on an individual
branch circuit. Cabinets rated at 120V 1440W may be plugged
into either a 15 amp or 20 amp receptacle. Cabinets rated
at 220-240V 1681-2000W must be plugged into a 250VAC,
15 amp receptacle.
8.
The factory setting for temperature is Fahrenheit. The temperature scale can be changed to Celsius in the "Settings" menu.
9.
Your C5 cabinet is designed to operate next to walls and other kitchen equipment. However, the greater the clearance around the
sides and the top of the cabinet, the cooler the electrical components will operate. This may result in a longer life expectancy for the
electrical components.
WARNING: Do not allow combustible materials to be stored or accumulate on, under or next to the cabinet. Do not
block any ventilation louvers or slots.
C5 9 Series Cabinets — INSTRUCTIONS FOR USE
120V
15AMP
Outlet
5
www.metro.com
Cord out
of the
back
120V
220/240V
20AMP
15AMP
Outlet
Outlet
REV S 11/22
