SERVICE and REPLACEMENT PARTS

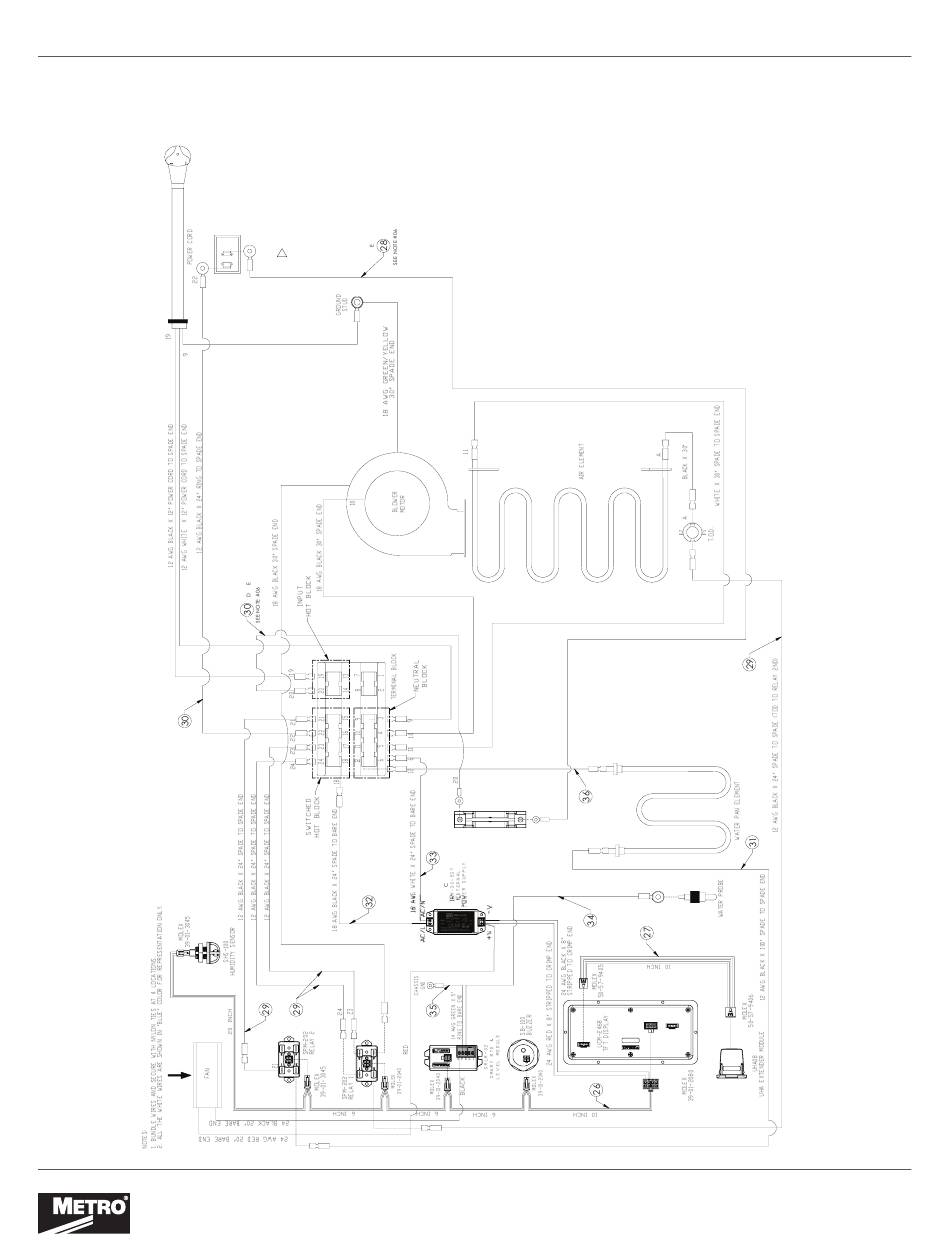

C5 9 Series Wiring Diagram
SWITCH
SWITCH
12 AWG GREEN X 12" POWER CORD TO RING END
ON
E
12 AWG BLACK X 28"
RING TO RING
OFF
12 AWG BLACK X 24" RING TO SPADE END
C5 9 Series Cabinets — INSTRUCTIONS FOR USE
(continued)
Warning: Only factory approved service agents should attempt
to service, repair or replace electrical components,
wiring or power cord.
12 AWG WHITE X 88" SPADE TO SPADE END
18 AWG ,BLACK X 96" RING TO BARE END
25
www.metro.com
L01-419
REV S 11/22
