INSTRUCTIONS FOR USE
DESCRIPTION
This manual covers cabinets with electrical ratings of: 120V 2000W, 120V 1440W & 220-
240V 1681-2000W.
9 SERIES
CONTROLLED HUMIDITY
HEATED HOLDING &
PROOFING CABINETS

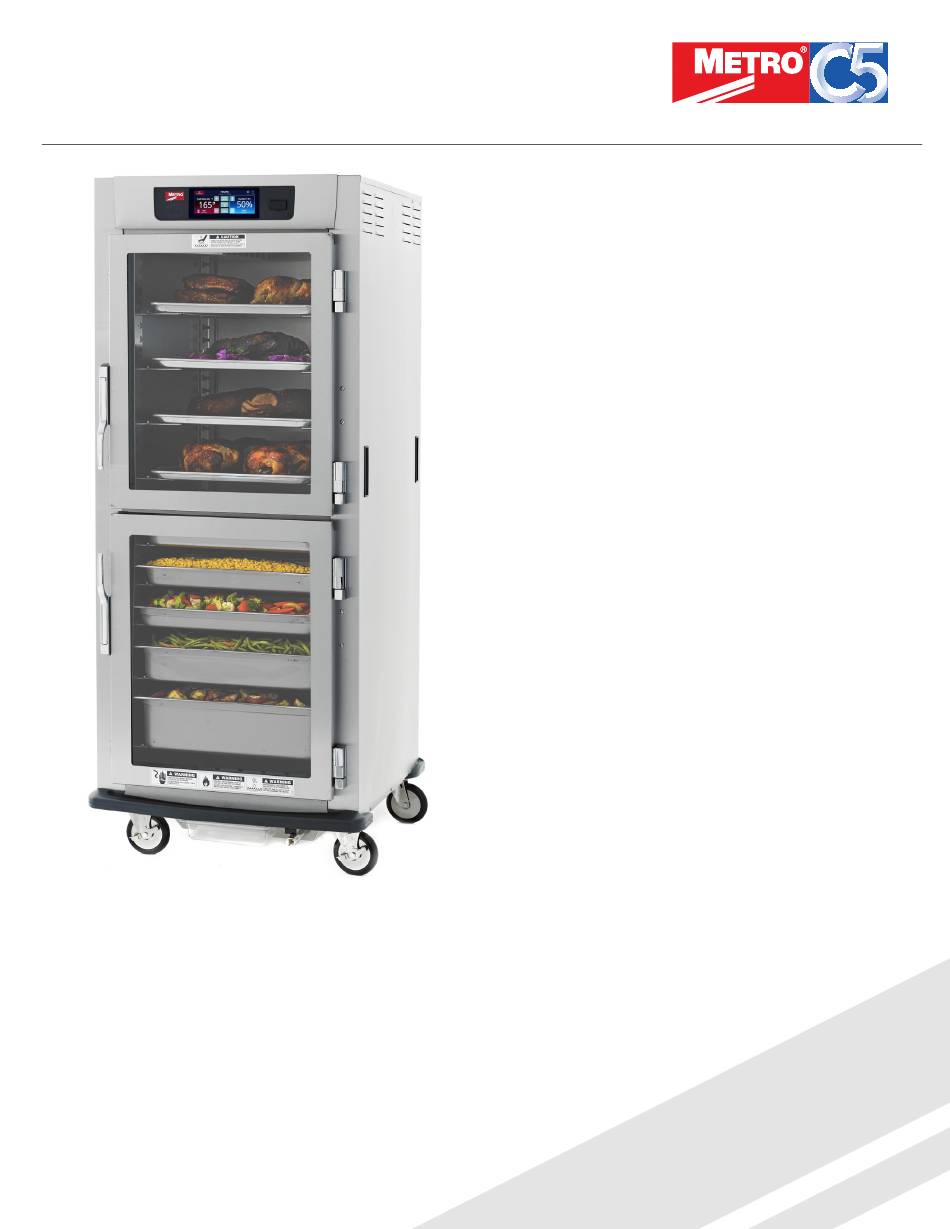

Metro Heated Cabinets are for
Hot Food Holding applications only
When ordering electrical parts, always confirm the rating
listed on rear cabinet data plate. Differences on voltage,
amps or wattage are listed with bold text in replacement
part descriptions.
TM
Advertisement
Table of Contents
Related Manuals for Metro DataVac 9 Series
Summary of Contents for Metro DataVac 9 Series
- Page 1 INSTRUCTIONS FOR USE 9 SERIES CONTROLLED HUMIDITY HEATED HOLDING & PROOFING CABINETS Metro Heated Cabinets are for Hot Food Holding applications only When ordering electrical parts, always confirm the rating listed on rear cabinet data plate. Differences on voltage, amps or wattage are listed with bold text in replacement part descriptions.
- Page 2 C5 9 Series Cabinets — INSTRUCTIONS FOR USE 1. With the MAIN POWER switch OFF (Located on the back of the cabinet), plug the supply power cord into an appropriate, grounded, receptacle. (Refer to the cabinet data plate for voltage and ampere rating).
-
Page 3: Table Of Contents
C5 9 Series Cabinets — INSTRUCTIONS FOR USE TABLE OF CONTENTS SECTION PAGE SECTION PAGE I. Basic Operating Guidelines ..Inside Front Cover XI. Menu Presets Select / Edit Screen ....12 II. Safety Instructions ..........3 XII. Cabinet Settings ..........13 III. -
Page 4: Identifying Your Cabinet
C5 9 Series Cabinets — INSTRUCTIONS FOR USE IDENTIFYING YOUR CABINET Model number, serial number, and electrical information can be found on the data plate that is affixed to the back of the cabinet. NOTE: CUSTOMER CAN ENTER SERIAL # INTO CONTROLLER FOR CONVENIENCE AS PER BELOW STEPS. -
Page 5: Installation & Set-Up
C5 9 Series Cabinets — INSTRUCTIONS FOR USE INSTALLATION AND SET-UP Check for Shipping Damage: Check the packaging and cabinet for shipping damage before and after unloading the unit, and after removing all the packaging. The receiver of this product is responsible for filing freight damage claims. This equipment must be opened immediately for inspection. - Page 6 C5 9 Series Cabinets — INSTRUCTIONS FOR USE INSTALLATION AND SET-UP (continued) SLIDE INSTALLATION The rack uprights have been installed at the factory. If removed for cleaning, reinstall by hanging them on the shoulder rivets on the side walls of the cabinet.
- Page 7 C5 9 Series Cabinets — INSTRUCTIONS FOR USE INSTALLATION AND SET-UP (continued) CORRECT ORIENTATION OF LIP LOADED SLIDE RACKS Full Height Full Height Height Height Under Counter Single Door Dutch Doors Cabinet Cabinet Cabinet 2-piece Construction 2-piece Construction 1-piece Construction 1-piece Construction 1-piece Construction Part No.
- Page 8 C5 9 Series Cabinets — INSTRUCTIONS FOR USE REVERSING THE DOORS WARNING • TIP HAZARD Tip Hazard: On Pass-Thru cabinets that include any clear doors, when field reversing, the front and back doors must be hinged from opposite sides of the cabinet. See illustration below.
-
Page 9: Product Features
C5 9 Series Cabinets — INSTRUCTIONS FOR USE PRODUCT FEATURES Control Panel Tray Slides Field Reversible Doors Be careful when opening the doors as hot, humid air will escape the cabinet. Air Duct Flush Pull Handles Water Reservoir Fill with water to... -
Page 10: Main Display (Pre-Heat)
C5 9 Series Cabinets — INSTRUCTIONS FOR USE Main Display (Pre-Heat) After POWER ON, Pre-heat mode is active until the temperature and humidity setpoints are reached. Menu presets, Settings, and Help/Training function are all accessible during pre-heat. Temperature and humidity setpoints can be changed during pre-heat. -
Page 11: Change Set Points Screen (Temperature)
C5 9 Series Cabinets — INSTRUCTIONS FOR USE Change Set Points Screen (temperature) The change set points screen is activated by selecting the large (actual temperature) display on the main screen OR selecting the Set Temperature field in the screen below. -
Page 12: Menu Preset Categories
C5 9 Series Cabinets — INSTRUCTIONS FOR USE Menu Preset Categories The main menu for Menu Presets displays the main food categories that contain the individual menu presets. The menu category buttons advance to a list of The HOME button exits and specific menu presets where presets can be returns to the main screen. -
Page 13: Cabinet Settings
C5 9 Series Cabinets — INSTRUCTIONS FOR USE Cabinet Settings Configure Date/Time, Temperature scale, Low temp alarm, Timers, Auto start time, Language, Control lock, and to access cabinet information. - DATE & TIME: Allows the time, date, and formats to be set. Date and time need to be set before the AUTO START feature can be used. -
Page 14: Help Function
C5 9 Series Cabinets — INSTRUCTIONS FOR USE Help Function 1. Scan the QR Code on the cabinet display or in this document with the QR code reader on your phone or device to access detailed information and videos…. 2. You can navigate to the Metro C5 Support portal at https://metro.com/support-c59/... -
Page 15: Timer Setup
C5 9 Series Cabinets — INSTRUCTIONS FOR USE Timer Setup This screen allows count-up or count-down timers to be programmed. Count-down timers have programmable “Green, Orange, and Red” zones to make it easy to manage maximum holding times and perform a FIFO process or manage different food holding times. - Page 16 The low temperature alarm is also disabled during pre-heat. Your C5 9 Series cabinet is capable of creating high levels of humidity at all operating temperatures. As you operate the cabinet and open and close the door(s), condensation will form on the inside surfaces of the cabinet. Some dripping of water may occur to the outside of the cabinet particularly at the door seals.
- Page 17 C5 9 Series Cabinets — INSTRUCTIONS FOR USE 5. An element symbol below each digital display indicates when the temperature or humidity heater element is energized. As the control settings are adjusted, it may take a few moments for the status of the indicator lights to reflect the new control settings and cabinet conditions depending on when in the control cycle the settings are changed.
-
Page 18: Care & Maintenance
C5 9 Series Cabinets — INSTRUCTIONS FOR USE CARE & MAINTENANCE Cleaning The Cabinet Warning: Unplug the cabinet before cleaning or servicing. Do not wash the cabinet with a water jet or high pressure water. Caution: Do not spray or pour water into the control enclosure. To clean the cabinet, wipe with a damp cloth and dry with a towel. - Page 19 C5 9 Series Cabinets — INSTRUCTIONS FOR USE Temperature and / or Humidity Display with “---” (No reading): a. Check Single Wire Interface status. Path: SETTINGS CABINET INFO S/W STATUS. If the screen shows all tick " √ " green colored then the communication harness is ok.
-
Page 20: Service & Replacement Parts
C5 9 Series Cabinets — INSTRUCTIONS FOR USE 6. Humidity too low: a. Set point is too low. Turn humidity set point up to the desired humidity. b. Cabinet may be producing the maximum humidity capable at the current temperature setting and food moisture content. - Page 21 C5 9 Series Cabinets — INSTRUCTIONS FOR USE SERVICE and REPLACEMENT PARTS C5 9 SERIES REPLACEMENT PARTS — ELECTRICAL 120V 1440W OR 2000W ITEM # Replacement Part No. Description 220-240V 1681W OR 2000W RPC13-1400 CONTROL SCREEN ITEM # Replacement Part No. Description...
- Page 22 C5 9 Series Cabinets — INSTRUCTIONS FOR USE SERVICE and REPLACEMENT PARTS (continued) C5 9 SERIES REPLACEMENT PARTS — CABINET BODY ITEM # Replacement Part No. Description ITEM # Replacement Part No. Description RPC5-U9 TALL CABINET UNIVERSAL SLIDE RPC06-873B FULL HEIGHT DOOR GASKET...
- Page 23 C5 9 Series Cabinets — INSTRUCTIONS FOR USE SERVICE and REPLACEMENT PARTS (continued) Replacement Parts Diagram RIGHT ANGLE PLUG CORD SHOWN AIR DUCT See page 21. CABINET BODY CONTROL PANEL See page 21. 31 32 RESERVOIR COVER 3", 5" or 6"...
- Page 24 C5 9 Series Cabinets — INSTRUCTIONS FOR USE SERVICE and REPLACEMENT PARTS (continued) Warning: Only factory approved service agents should attempt to service, repair or replace electrical components, wiring or power cord. INCLUDES ITEM # 14 INSULATION INCLUDES * For Selected...
- Page 25 C5 9 Series Cabinets — INSTRUCTIONS FOR USE SERVICE and REPLACEMENT PARTS (continued) C5 9 Series Wiring Diagram Warning: Only factory approved service agents should attempt to service, repair or replace electrical components, wiring or power cord. SWITCH 12 AWG BLACK X 28"...
-
Page 26: Warranty
C5 9 Series Cabinets — INSTRUCTIONS FOR USE ® 11/2022 For online warranty registration, please go to www.metro.com/service-support/thermal-cabinets to register electronically L01-419 REV S 11/22 www.metro.com... - Page 27 C5 9 Series Cabinets — INSTRUCTIONS FOR USE THIS PAGE IS KEPT INTENTIONALLY BLANK L01-419 REV S 11/22 www.metro.com...
- Page 28 * Save this document for future application, load rating and/or safety reference. © 2021 InterMetro Industries Corporation, Wilkes-Barre, PA 18705 L01-419 REV S 11/22...
