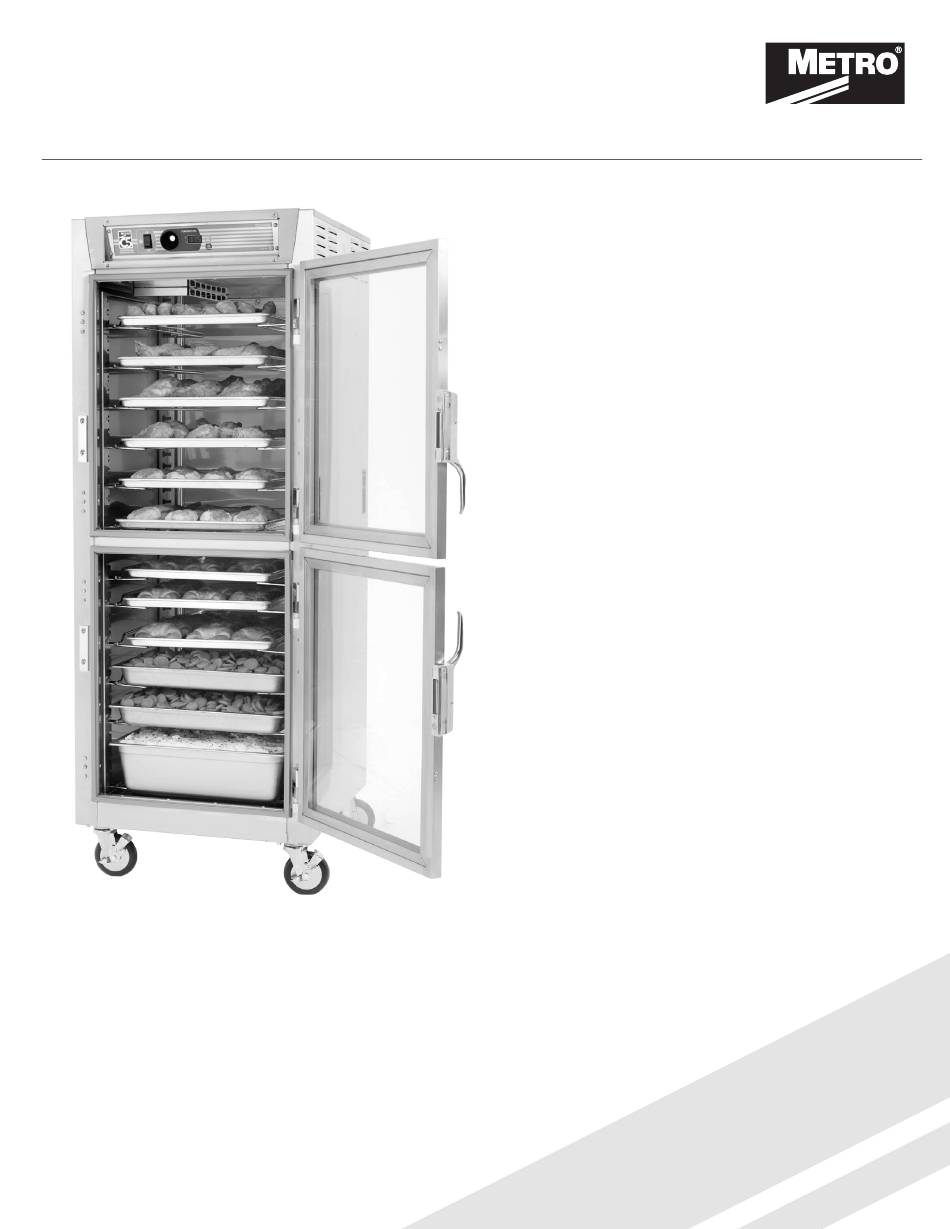

INSTRUCTIONS FOR USE 8 SERIES CONTROLLED TEMPERATURE HEATED HOLDING CABINETS Metro Heated Cabinets are for Hot Food Holding applications only When ordering electrical parts, always confirm the rating listed on rear cabinet data plate. Differences on voltage, amps or wattage are listed with bold text in replacement part descriptions.
Page 2
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE 1. With the POWER switch OFF, plug the supply power cord into an appropriate, grounded, receptacle. (refer to the cabinet data plate for voltage and ampere rating). 2. Ensure that the cabinet’s floor duct and water pan are installed. (refer to the cabinet operating instructions). This helps to distribute the heat evenly throughout the cabinet.
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE TABLE OF CONTENTS SECTION PAGE Basic Operating Guidelines ..Inside Front Cover II. Safety Instructions ..........3 III. Identifying Your Cabinet ........4 IV. Installation & Set-up ..........5 V. Product Features ..........9 VI.
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE IDENTIFYING YOUR CABINET For future reference, note the serial and model number, found on the data plate of the cabinet, here. Model number Serial number Date the cabinet was put into service Fill out and return the warranty card located at the back of this manual.
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE INSTALLATION AND SET-UP 1. Check for Shipping Damage: Check the packaging and cabinet for shipping damage before and after unloading the unit, and after removing all the packaging. 2. The receiver of this product is responsible for filing freight damage claims. This equipment must be opened immediately for inspection.
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE INSTALLATION AND SET-UP (continued) SLIDE INSTALLATION The rack uprights have been installed at the factory. If removed for cleaning, reinstall by hanging them on the shoulder rivets on the side walls of the cabinet.
Page 7
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE INSTALLATION AND SET-UP (continued) CORRECT ORIENTATION OF LIP LOADED SLIDE RACKS Full Height Full Height Height Height Under Counter Single Door Dutch Doors Cabinet Cabinet Cabinet 2-piece Construction 2-piece Construction 1-piece Construction...
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE REVERSING THE DOORS WARNING TIP HAZARD • Tip Hazard: On Pass-Thru cabinets that include any clear doors, when field reversing, the front and back doors must be hinged from opposite sides of the cabinet. See illustration below.
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE PRODUCT FEATURES Control Panel Tray Slides Field Reversible Doors Air Duct Be careful when opening the doors as hot, humid air will escape the cabinet. Water Pan Fill with water. Capacity is Flush Pull Handles 1 quart (1 liter).
“SND OFF” or “SND ON” 2. Your C5 8 Series cabinet is capable of creating hot humid air. As you operate the cabinet and open and close the door(s), condensation may form on the inside surfaces of the cabinet. Some dripping of water may occur to the outside of the cabinet particularly at the door seals.
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE 3. The cabinet control will “remember” its setting when the cabinet is turned off. Therefore, when the unit is turned on the setting will be the same as it was during the previous use.
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE BASIC TROUBLESHOOTING Warning: Only factory approved service agents should attempt to service, repair or replace electrical components, wiring or power cord. Controls do not work (no display or indicator light): a. Check that the cabinet is plugged in.
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE SERVICE and REPLACEMENT PARTS C5 8 SERIES REPLACEMENT PARTS — ELECTRICAL Confirm the cabinet electrical rating before ordering components. Warning: Only factory approved service agents should attempt to service, repair or replace electrical components, wiring or power cord.
Page 14
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE SERVICE and REPLACEMENT PARTS (continued) C5 8 SERIES REPLACEMENT PARTS — CABINET BODY ITEM # Replacement Part No. Description ITEM # Replacement Part No. Description CABINET BODY (continued) CABINET BODY RPC14-042 DOOR HINGE —1 PIECE...
Page 15
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE SERVICE and REPLACEMENT PARTS (continued) Replacement Parts Diagram AIR DUCT See page 11. or 9A STRAIGHT PLUG CORD SHOWN or 8A CABINET BODY CONTROL PANEL See page 11. FLOOR DUCT *For slide identification, see pages 4 and 5.
Page 16
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE SERVICE and REPLACEMENT PARTS (continued) C5 8 Series Wiring Diagram Warning: Only factory approved service agents should attempt to service, repair or replace electrical components, wiring or power cord. CONTROL PANEL BOTTOM...
C5 8 SERIES CABINETS — INSTRUCTIONS FOR USE ® 10/2019 For online warranty registration, please go to www.metro.com/service-support/thermal-cabinets to register electronically L01-425 REV K 10/19 www.metro.com...
