Enabling Packet Filtering - Compaq iPAQ CP-2E User Manual

IP Rules: The IP Rules Status page shows destination IP addresses
that are blocked. Packets that have destinations matching any of these
addresses are discarded.
Port Rules: The Port Rules page displays port and protocol
combinations that are blocked. Packets of the matching port number
and protocol type are discarded. You can add new port/protocol
filtering combinations. Several predefined port mappings are
included.

Enabling Packet Filtering

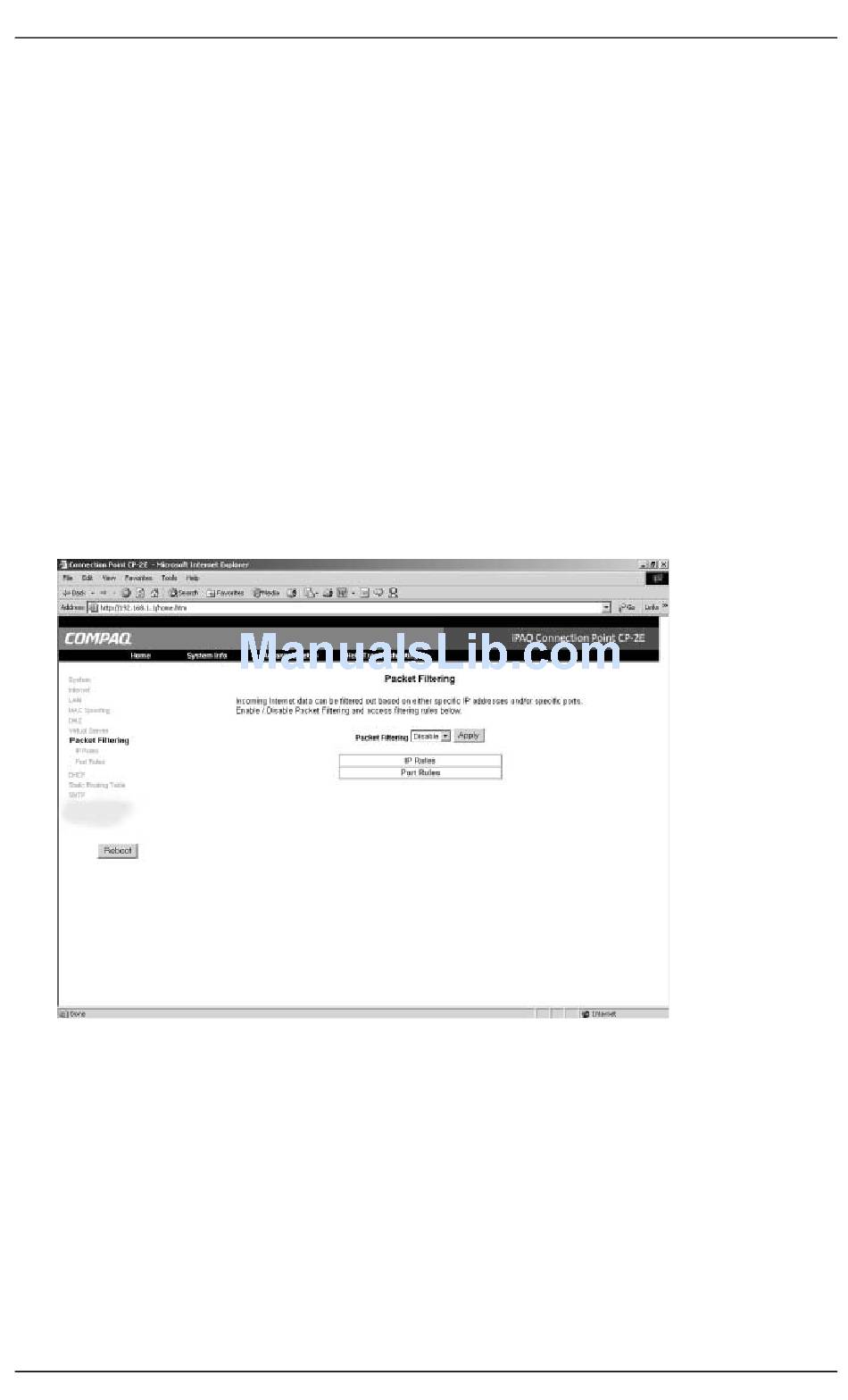

1. Click the Packet Filtering link at the left. The Packet Filtering page
is displayed.
2. Use the pulldown menu to select Enable in the Packet Filtering
field.
3. Click Apply. The Connection Point CP-2E must be rebooted for
applied changes to take effect.
4. Click OK. You can reboot the Connection Point CP-2E at any time by
clicking the Reboot button at the left.
iPAQ Connection Point CP-2E User Guide
Advanced Setup Icons
5–11
