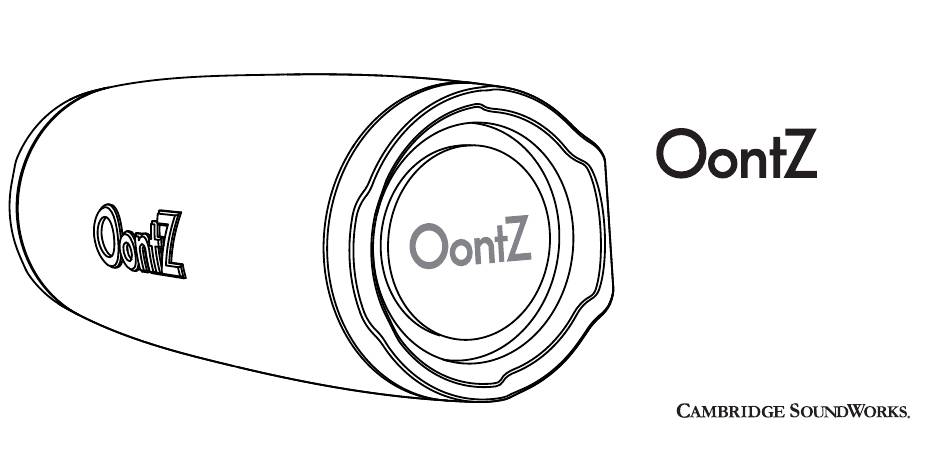

- Page 1 Quick Start Guide Cylinder Portable Bluetooth Speaker OontZ Dual Speaker Model Designed and Engineered By TheOontZ.com...
-
Page 2: Table Of Contents
Wireless Hands Free Personal Speakerphone …………………………………………………………………………… OontZ Dual Speaker - Connect two OontZ Cylinder Speakers Together ……………………………………………………… Connecting two OontZ Cylinder speakers together for Left Channel - Right Channel …………………………………………………………………… Two OontZ Cylinder Speakers connected for Left Channel - Right Channel …………………………………………………………………………………………………………………………... -
Page 3: In The Package
In the Package Quick-Start Guide Quick Start Guide Cylinder Portable Bluetooth Speaker OontZ Dual Speaker Model Designed and Engineered By TheOontZ.com USB Type C Charging Cable OontZ Cylinder Note: The USB Type-C charging cable is packed under the speaker. Page 1... -
Page 4: Buttons
2 Seconds Important - Make sure the volume level is set high on your audio source device. The volume on the OontZ Cylinder and your audio source device both need to be set to the highest level for the loudest volume. Important - The track back feature is application-dependent. -
Page 5: Lights
– Solid Blue speaker is connected Lit Red when charging: – Slowly flashing Red battery is charging Lit blue/green when the speaker is the second speaker connected in – Solid Red OontZ Dual Speaker battery is fully charged Page 3... -
Page 6: Connectors
Connectors Rubber Flap USB Type C AUX IN Jack Charging Connector – covers connectors – pull gently from the bottom to access Note: The rubber flap needs to be closed to keep connectors, it is a snug fit to provide water the speaker water resistant resistance Page 4... -
Page 7: Battery Features
– Louder volumes will reduce the battery play time. Power Saving Feature – When playing from battery power the OontZ Cylinder will turn off after 15 minutes of not playing audio to conserve the battery charge. – When plugged into a charging source the OontZ Cylinder will remain on until you turn the power off. -
Page 8: Turning On And Off
Turning On and Off Turn ON – Press and hold the Power Button for 2 second Blue Light turns on – Flashing Blue The speaker is turned on and is in pairing mode – Solid Blue The speaker is turned on and has connected to an audio source device and is ready to play Turn OFF –... -
Page 9: Pair & Connect --Step 1
Pair & Connect ——Step 1 – Make sure your OontZ Cylinder battery has a sufficient charge, it is not able to connect when the charge is too low. – Your device needs to be within 100 unobstructed feet of the OontZ Cylinder to pair and connect. If there is an issue when connecting please move your device closer to the speaker, then pair and connect. -
Page 10: With Your Iphone, Ipad, Ipod, Smartphone, Tablet & Mobile Devices
— With Your iPhone, iPad, iPod, Smartphone, Tablet & Mobile Devices – Go to Settings > Bluetooth, check Bluetooth is on – Select 'OontZ Cylinder DS xxx' when it appears under DEVICES (xxx: 3 characters which are unique to your speaker) – Your device will connect in a few seconds –... -
Page 11: From Your Amazon Echo Device
– Select the 'OontZ Cylinder DS xxx' (xxx: 3 characters unique to your speaker) when it appears – The OontZ Cylinder will make a 'ding' sound when connected To connect the next time, turn on the OontZ Cylinder and say "Alexa, connect my speaker" or "Alexa, pair" Page 9... - Page 12 – or say "Alexa, disconnect my speaker" and the OontZ Cylinder will automatically turn off after 15 minutes. When you want to connect and play to the speaker again turn on the OontZ Cylinder and say "Alexa, connect my speaker" or "Alexa, pair".
-
Page 13: Ipx7 Waterproof
Perfect for taking to the lake, the beach, listening by the pool, listening in the shower IPX7 means the OontZ Cylinder is WaterProof and can handle water spray or being splashed and can handle being partially or fully submerged in water up to a maximum of 3 feet deep, for up to a maximum of 30 minutes. -
Page 14: Wireless Hands Free Personal Speakerphone
Wireless Hands Free Personal Speakerphone – The Wireless Hands Free Personal Speakerphone feature works over Bluetooth with Smartphones and iPhones only – This feature is not supported when connected to PCs, laptops, Apple Macor other types of devices. To answer an Incoming Call / To End a Call –... -
Page 15: Oontz Dual Speaker - Connect Two Oontz Cylinder Speakers Together
OontZ Dual Speaker - Connect two OontZ Cylinder Speakers Together Play your music wirelessly through both speakers up to 66 feet apart* Bluetooth Left Channel - Right Channel for playing music for stereo separation Right Channel Left Channel *Placing the speakers on the ground or having walls or obstructions between the speakers will significantly reduce the distance apart the two speakers can play together. -
Page 16: Connecting Two Oontz Cylinder Speakers Together For Left Channel - Right Channel
Channel”. The Play Control Speaker speaker light will remain solid Blue and the second speaker light will be solid green. The OontZ Cylinder speakers will be connected together for Left Channel - Right Channel and you are ready to play. -
Page 17: Two Oontz Cylinder Speakers Connected For Left Channel - Right Channel
Two OontZ Cylinder Speakers connected for Left Channel - Right Channel Play Control Speaker Second Speaker Lit Blue Lit Green – Use the buttons on the Play Control Speaker for play/pause, track back, track forward, answer and end phone calls. These controls are disabled on the second speaker when paired together. -
Page 18: Oontz Dual Speaker - Important Notes
– It is not recommended to play the audio from a video with two OontZ Cylinder speakers connected in OontZ Dual Speaker. Playing the audio from a video or TV in OontZ Dual Speaker will have a delay in the audio playback from a video and will cause the audio and video to play out of sync with each other. -
Page 19: Troubleshooting & Customer Support
Customer Support If you have any issues with your OontZ Cylinder, our Customer Support Team wants to assist you. Please contact us at: TheOontZ.com/support Page 17... -
Page 20: Safety And Precautions
Safety and Precautions When the OontZ Clip speaker is plugged in to a charging source with the USB Type C Charging Cable, never use the speaker in the shower, bath, or near water, to prevent risk of electric shock. Read and follow all instructions – All operating and use instructions should be followed. -
Page 21: Ic Warning Statement
Safety and Precautions (continued) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
