AUX
ARV SERIES INDOOR UNIT
– DC&AC TYPE
Technical&Service Manual

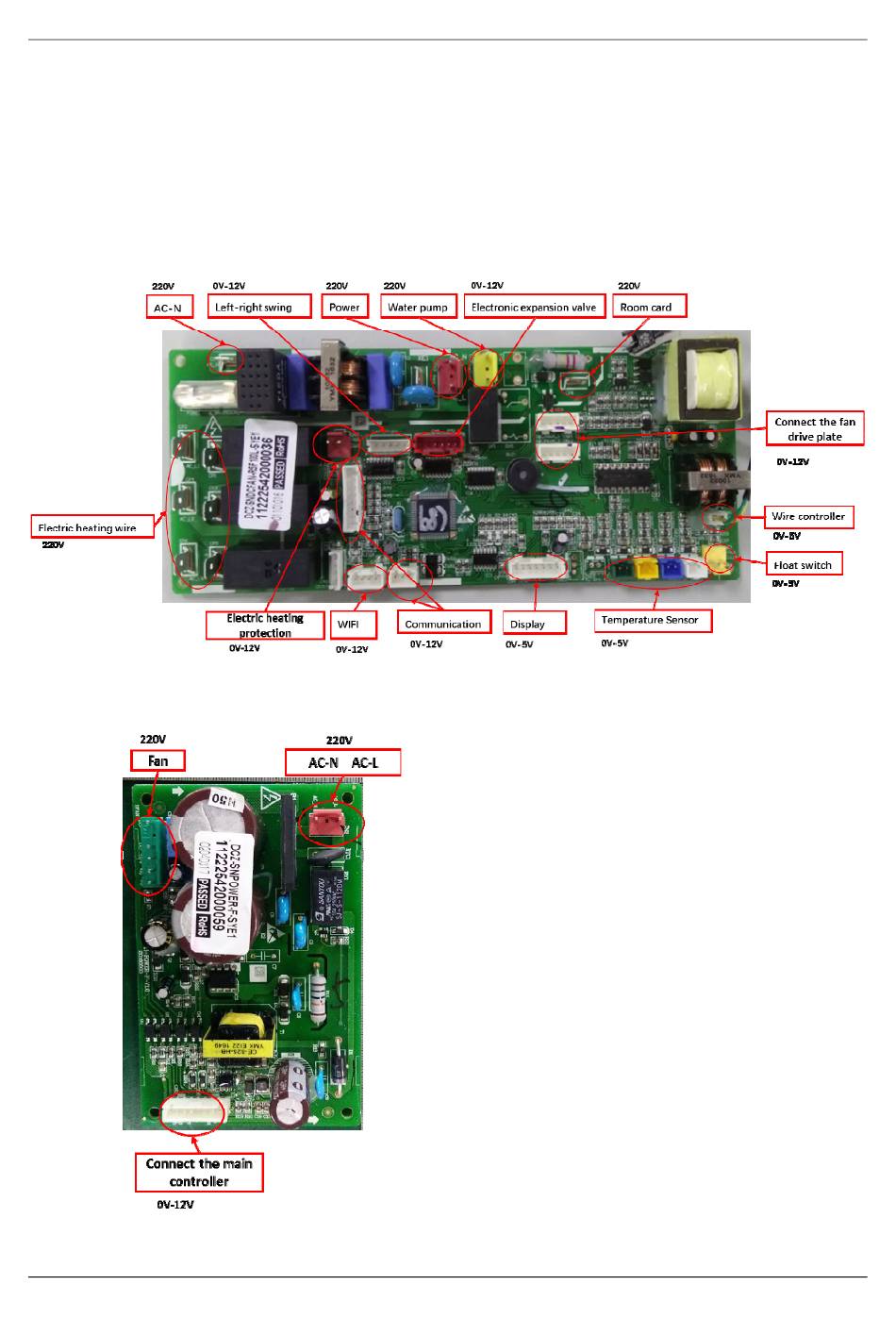

8. PCB Port Introduction
2.1 E Series- DC Type
ARVCA-H071/R1X, ARVCA-H080/R1X, ARVCA-H090/R1X
ARVCA-H100/R1X, ARVCA-H112/R1X, ARVCA-H125/R1X, ARVCA-H140/R1X
Main board-- 11222542000036 CJ
控制板
DCZ-SNDCFAN-R5F100L-SYE1
控制板
Fan board-- 11222542000059
CJ-F-SYEDCZ-SNPOWER-1
66
