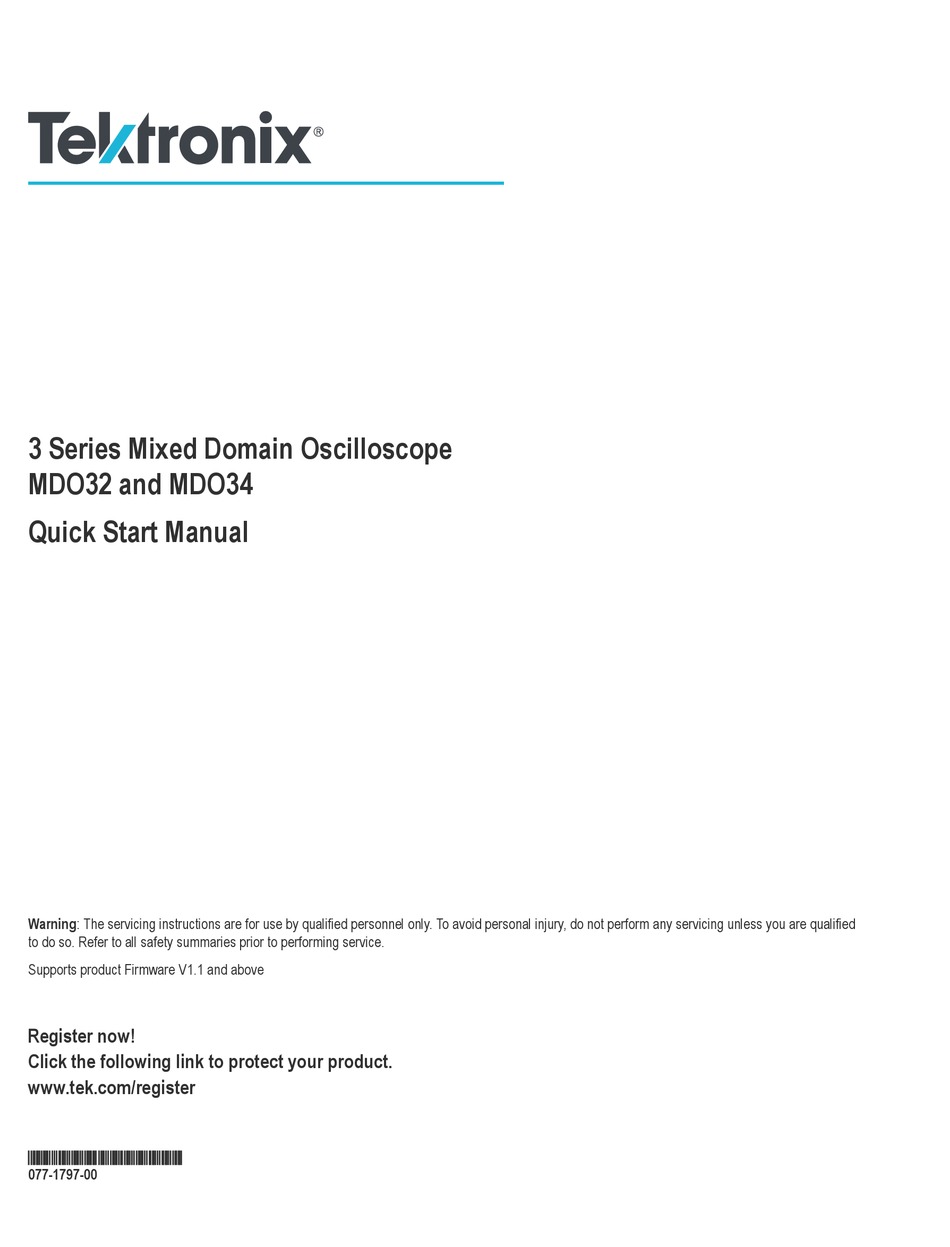

3 Series Mixed Domain Oscilloscope
MDO32 and MDO34
Quick Start Manual
Warning: The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified
to do so. Refer to all safety summaries prior to performing service.
Supports product Firmware V1.1 and above
Register now!
Click the following link to protect your product.
www.tek.com/register
*P077179700*
077-1797-00
